Air core drilling stands out as a rapid and cost-effective technique for investigating shallow subsurface formations. Utilizing compressed air to evacuate drill cuttings, this method proves particularly useful in mineral exploration, geotechnical investigations, and environmental sampling where swift sample retrieval is crucial. Its ability to quickly penetrate softer ground makes it a go-to choice for initial site assessments.
At its core, air core drilling employs a specialized drill string with an inner and outer tube. Compressed air is forced down the outer tube, exiting at the drill bit to fracture the formation. The resulting cuttings are then propelled up the inner tube to the surface for collection and analysis. This continuous removal of material ensures efficient drilling and provides a relatively uncontaminated sample, offering valuable insights into the subsurface composition.
What is Air Core Drilling
Air core drilling is a rapid and cost-effective drilling method primarily used for shallow exploration in unconsolidated materials like sand, gravel, and weathered rock. It employs a drill bit with steel or tungsten blades to bore a hole, while compressed air is injected down the drill string to force the cuttings up an inner tube to the surface.
This drilling method provides a relatively clean and representative sample of the subsurface, making it ideal for initial assessments in mineral exploration, environmental studies, and geotechnical investigations.
How Air Core Drilling Works
Air core drilling operates by utilizing a drill bit, typically equipped with three steel or tungsten blades, to bore through unconsolidated ground. Compressed air is the crucial element in this process. It is injected down the hollow drill rods, and this high-pressure air stream serves a dual purpose.
First, it aids the drill bit in cutting and fracturing the subsurface materials. Second, and more importantly, the compressed air forces the resulting rock chips and soil cuttings up through an inner tube within the drill string, carrying the sample to the surface for collection and analysis.
The efficiency of air core drilling stems from this continuous flushing action of the compressed air, which allows for rapid removal of cuttings and faster penetration rates in suitable ground conditions. The collected samples, transported through the inner tube, are generally less contaminated compared to methods where cuttings travel up the outside of the drill string. This makes air core drilling a preferred technique for obtaining representative samples for preliminary exploration and environmental assessments in softer geological formations.
- Drill Bit: The air core drill bit, typically fitted with three robust blades made of hardened steel or tungsten carbide, is designed to efficiently cut and fragment unconsolidated materials and softer rock formations. As the drill string rotates, these blades shear and break the subsurface, generating cuttings that are then carried to the surface by the compressed air stream. The specific design and material of the bit are chosen based on the expected ground conditions to optimize penetration rates and sample recovery.
- Drill Rods: The drill string in air core drilling comprises hollow steel rods that are connected end-to-end. Importantly, these rods feature an inner tube that runs through their center. Compressed air is forced down the annular space between the outer drill rod and this inner tube. The cuttings, once generated by the drill bit, are then pushed upwards through this central inner tube by the continuous flow of high-pressure air, ensuring a relatively clean pathway for sample retrieval to the surface.
- Compressed Air: A powerful air compressor is the heart of the air core drilling operation. High-pressure air is injected down the drill string, serving two critical functions. Firstly, it assists the drill bit in its cutting action by helping to fracture and loosen the subsurface materials. Secondly, and perhaps more significantly, the continuous upward flow of compressed air within the inner tube of the drill rods acts as a transport mechanism, efficiently lifting the generated rock chips and soil cuttings to the surface for collection and subsequent analysis.
- Cuttings Removal: The unique design of air core drilling ensures efficient removal of the drilled cuttings. The compressed air, traveling up the inner tube of the drill rods, creates a continuous airflow that carries the fragmented rock and soil particles away from the drill bit. This rapid removal prevents the bit from becoming clogged and allows for faster penetration rates. The cuttings are then discharged at the surface, providing a relatively uncontaminated sample of the subsurface geology at different depths.
- Sample Collection: As the compressed air stream exits the top of the drill string, it carries the dislodged rock chips and soil particles with it. These cuttings are then carefully collected and typically logged and bagged according to the depth from which they were retrieved. This systematic collection process allows geologists and environmental scientists to analyze the composition and characteristics of the subsurface materials at various intervals, providing valuable insights into the geological profile and potential resource or contamination distribution.
Air Core Drilling Tools
Air core drilling relies on a specific set of tools designed for efficient shallow exploration. These tools work in concert to cut through unconsolidated materials and transport samples to the surface using compressed air.
Understanding these components is key to comprehending the air core drilling process and its capabilities.

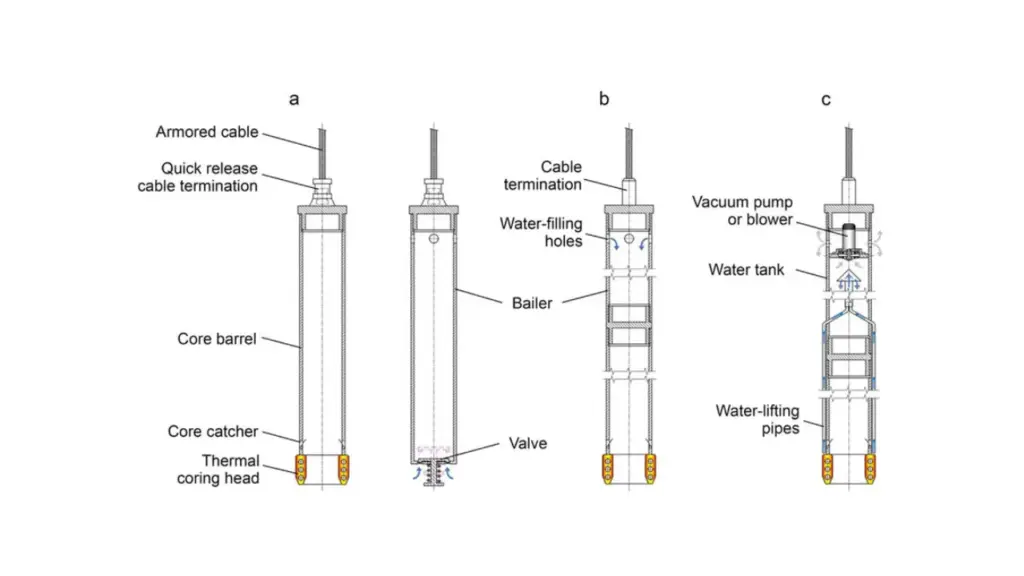

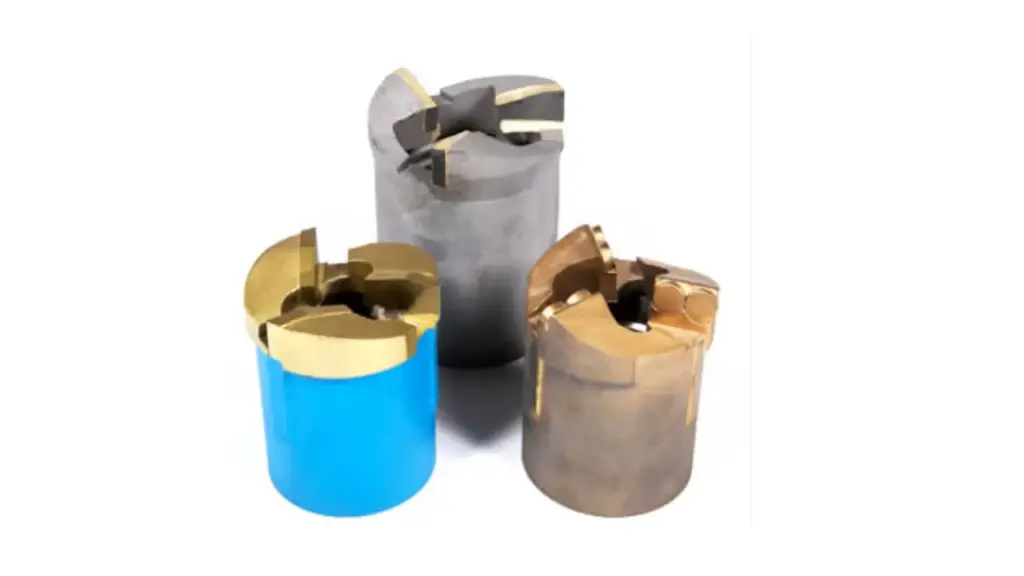

Air Core Drill Bit:
This crucial component is responsible for breaking and cutting through the subsurface materials. Typically featuring two to three robust, hardened steel or tungsten carbide blades, the bit’s design ensures efficient penetration in softer formations like sand, gravel, and weathered rock. The configuration and material of the blades are selected to optimize cutting action and sample generation while withstanding the abrasive nature of the drilling environment. Different bit designs may be used depending on the specific ground conditions encountered.
Inner Tube Drill Rods:
These specialized hollow rods are the conduit through which the drilled cuttings are transported to the surface. Running concentrically within the outer drill rods, the inner tube provides a dedicated pathway for the compressed air to lift the samples with minimal contamination from the borehole walls. The integrity and smooth internal surface of these rods are vital for efficient and representative sample recovery, ensuring accurate geological analysis. They are connected end-to-end to form the drill string.
Outer Drill Rods:
Encasing the inner tube drill rods, the outer rods provide the structural strength and rigidity necessary for the drilling operation. They also form the outer annulus through which the compressed air is initially forced down the drill string. This outer layer protects the inner tube from damage and ensures the efficient transmission of rotational force from the drill rig to the bit. The threaded connections between the outer rods must be robust to withstand the stresses of drilling.
Swivel Head:
Positioned at the top of the drill string, the swivel head serves as a critical interface between the rotating drill rods and the stationary components of the drill rig. It allows for the continuous injection of high-pressure compressed air into the drill string while simultaneously permitting the rods to rotate freely. The swivel head incorporates seals and bearings to ensure a leak-proof connection and smooth rotational movement under the demanding conditions of drilling.
Air Compressor:
The air compressor is the powerhouse of the air core drilling system, providing the high-volume, high-pressure air essential for both the cutting action of the drill bit and the efficient transport of cuttings to the surface. The capacity and pressure output of the compressor must be carefully matched to the depth of drilling and the ground conditions. A reliable and powerful air compressor ensures consistent performance and optimal sample recovery throughout the drilling process.
Air Core Drilling Benefits
Air core drilling offers several notable advantages, making it a preferred choice for specific exploration and investigation scenarios. Its primary benefit lies in its cost-effectiveness, particularly for shallow drilling projects in unconsolidated materials. The rapid penetration rates achieved through the use of compressed air significantly reduce operational time and associated costs compared to slower, more complex drilling methods.
Furthermore, the relatively simple setup and lighter equipment often translate to lower mobilization and demobilization expenses, making it an economically attractive option for initial site assessments and large-scale reconnaissance programs.
Another key benefit is the ability of air core drilling to provide relatively clean and representative samples of the subsurface. The use of compressed air to flush cuttings up through a dedicated inner tube minimizes contamination from the borehole walls, ensuring a more accurate reflection of the geological materials encountered at different depths.
This is crucial for reliable geochemical analysis and mineral resource evaluation during early-stage exploration. Additionally, the method is generally faster than other techniques in suitable ground conditions, allowing for quicker data acquisition and faster decision-making in project development.
Key benefits of air core drilling include:
- Cost-Effectiveness: Air core drilling is generally more affordable than other methods, especially for shallow exploration, due to faster drilling rates and simpler equipment requirements. This allows for more extensive initial surveys within a given budget, maximizing the area that can be assessed for potential resources or environmental concerns. The reduced operational time and lower mobilization costs contribute significantly to its overall economic advantage in appropriate geological settings.
- Rapid Sample Collection: The use of compressed air for continuous flushing of cuttings enables significantly faster drilling and sample retrieval compared to methods relying on mechanical removal or drilling fluids. This rapid sample collection allows for quicker geological logging and on-site analysis, accelerating the exploration process and enabling faster decision-making regarding potential targets or areas requiring further investigation. The increased efficiency translates directly into higher productivity and reduced project timelines.
- Representative Samples: The design of air core drilling, with its inner tube for sample transport, minimizes the risk of cross-contamination from materials higher up in the borehole. This ensures that the collected cuttings provide a more accurate representation of the subsurface geology at specific depths. Obtaining relatively uncontaminated samples is crucial for reliable geochemical analysis, allowing for a more precise assessment of the mineral content or the presence of contaminants in environmental studies.
- Efficiency in Soft Formations: Air core drilling excels in unconsolidated and weathered rock formations, achieving high penetration rates in materials like sand, gravel, clay, and saprolite. Its efficiency in these ground conditions makes it an ideal technique for initial exploration in areas with significant regolith cover or for geotechnical investigations in softer soils. The rapid progress through these materials allows for quick determination of bedrock depth and the identification of potential zones of interest.
- Portability and Accessibility: Air core drill rigs are typically smaller and more mobile than those used for deeper or harder rock drilling methods. This enhanced portability allows for easier access to remote or difficult-to-reach locations, expanding the areas that can be effectively explored. The lighter footprint of the equipment also minimizes environmental disturbance and simplifies site preparation, further contributing to its suitability for a wider range of exploration environments.
Air Core Drilling Applications
Air core drilling finds widespread use across various industries due to its efficiency and cost-effectiveness in specific geological settings. A primary application lies in early-stage mineral exploration, where it’s employed for rapid reconnaissance and the initial assessment of potential ore bodies concealed beneath shallow overburden.
The ability to quickly and affordably sample large areas helps identify promising zones for more detailed investigation using more expensive drilling techniques. Furthermore, air core drilling plays a crucial role in environmental investigations, allowing for the collection of soil and regolith samples to assess potential contamination and delineate the extent of pollutants in near-surface environments.
Beyond resource exploration and environmental studies, air core drilling is also valuable in geotechnical investigations for infrastructure development. It helps in determining the depth to bedrock, assessing soil profiles, and identifying potential ground stability issues for construction projects.
The relatively undisturbed samples obtained can provide crucial information for foundation design and other engineering considerations. Additionally, it can be used in water resource exploration for shallow aquifer characterization and the initial assessment of groundwater potential in unconsolidated formations.
Key applications of air core drilling include:
- Mineral Exploration (Early Stage): Air core drilling serves as a cost-effective and rapid method for initial reconnaissance in mineral exploration. It allows for the quick sampling of large areas covered by shallow overburden, helping to identify geochemical anomalies and potential ore-bearing zones that warrant further, more detailed investigation using techniques like diamond core drilling. The ability to efficiently assess broad areas makes it invaluable for prioritizing exploration targets and reducing the overall cost of discovery.
- Environmental Investigations (Shallow Sampling): In environmental studies, air core drilling is frequently used to collect soil and regolith samples for assessing near-surface contamination. It enables the efficient delineation of pollutant plumes and the evaluation of the extent of soil and groundwater contamination. The relatively clean samples obtained through the inner tube system are crucial for accurate geochemical analysis and risk assessment in environmental management and remediation projects.
- Geotechnical Investigations (Foundation Studies): For infrastructure development, air core drilling provides valuable information about near-surface soil conditions and the depth to bedrock. This data is essential for foundation design, slope stability analysis, and the identification of potential construction challenges. The rapid and relatively inexpensive nature of the method allows for thorough site characterization, contributing to safer and more cost-effective engineering solutions for buildings, roads, and other infrastructure projects.
- Water Resource Exploration (Shallow Aquifer Assessment): Air core drilling can be employed in the preliminary assessment of shallow groundwater resources, particularly in unconsolidated aquifers. It allows for the collection of geological samples that can provide insights into aquifer lithology and potential water-bearing zones. While not suitable for deep aquifer testing, it offers a rapid and cost-effective method for initial hydrogeological surveys and the identification of areas with promising shallow groundwater potential for further investigation.
- Geological Mapping (Regolith Penetration): In areas with significant regolith cover obscuring bedrock geology, air core drilling can be a valuable tool for geological mapping. By rapidly penetrating the weathered layer and providing samples of the underlying material, it helps geologists understand the subsurface lithology and structure. This information is crucial for creating accurate geological maps and developing a better understanding of the regional geology, especially in areas where outcrop is limited.
What is the Difference Between Air Core Drilling and RC Drilling?
Air core drilling and Reverse Circulation (RC) drilling are both methods utilizing compressed air to aid in the drilling process and bring samples to the surface, but they differ significantly in their mechanism and application. Air core drilling employs a drill bit with steel or tungsten blades to cut through unconsolidated materials and soft rock.
Compressed air is injected down the drill string, and the cuttings are forced up through an inner tube within the drill rods, providing a relatively clean sample from shallow depths. This method is favored for its speed and cost-effectiveness in initial exploration phases.
In contrast, RC drilling is designed for deeper and harder formations. It uses a downhole hammer powered by compressed air to deliver rapid impacts to a tungsten-carbide drill bit, effectively pulverizing the rock.
The drill string consists of dual-wall pipes; compressed air is forced down the outer pipe, and the crushed cuttings are returned to the surface through the inner pipe. This reverse circulation of air and cuttings allows for continuous and relatively dry sample collection from greater depths and in more challenging geological conditions compared to air core drilling.
What is the Deepest Drilling Project?
The deepest drilling project achieved to date is the Kola Superdeep Borehole in Russia. This ambitious scientific endeavor, initiated by the Soviet Union in 1970, aimed to penetrate as deeply as possible into the Earth’s crust. Drilling continued until 1992, reaching a remarkable true vertical depth of 12,262 meters (40,230 feet).
While the project did not reach its initial target depth of 15,000 meters due to unexpectedly high temperatures, it remains the deepest man-made hole ever drilled and provided significant insights into the Earth’s geology at those depths.
Key facts about the Kola Superdeep Borehole:
- Location: Kola Peninsula, Murmansk Oblast, Russia, near the Norwegian border.
- Start Date: May 24, 1970.
- Maximum Depth Reached: 12,262 meters (40,230 feet) in 1989.
- Duration of Drilling: Approximately 22 years (1970-1992).
- Primary Goal: Scientific research into the Earth’s crust, including its structure, composition, and thermal regime.
- Significant Discoveries: Evidence of microbial life at great depths, the presence of trapped hydrogen gas, and the absence of a basalt layer at the expected seismic discontinuity.
- Current Status: The borehole was eventually sealed and the site abandoned in the mid-2000s due to the collapse of the research infrastructure.
Conclusion
Air core drilling stands out as an efficient and cost-effective method for shallow exploration, particularly in unconsolidated ground. Its use of compressed air ensures rapid sample retrieval with minimal contamination, proving valuable for preliminary geological assessments. However, its limitations in hard rock formations necessitate considering alternative drilling techniques for deeper or more complex projects.
For those involved in exploration and drilling operations, sourcing reliable tools is crucial. Sinodrills emerges as a reputable wholesale supplier of various drilling tools, including top hammer and DTH options. Their extensive product range caters to diverse drilling needs, potentially offering a valuable resource for acquiring quality equipment.
In conclusion, air core drilling offers distinct advantages for specific applications, while the availability of wholesale suppliers like Sinodrills can streamline the procurement of necessary drilling equipment. Understanding both the capabilities and limitations of drilling methods and the sources for quality tools is essential for successful drilling endeavors.
