Custom Coupling Sleeves for Drilling Tools Manufacturer in China
Is your drilling operation hampered by weak, failing connections? Frequent coupling sleeve for drilling tools failures disrupt workflow, cause costly delays, and compromise safety on site. Boost your productivity and peace of mind with our robust coupling sleeves for drilling tools. Engineered for extreme durability and precise fit, they ensure secure, efficient power transfer, maximizing your uptime and drilling performance in any demanding environment.
Sinodrills - Your Trusted Coupling Sleeves for Drilling Tools Manufacturer from China
Worried about drill string integrity and costly operational halts? Inferior coupling sleeves can lead to premature wear, breakage, and significant downtime on your drilling projects. As your trusted drill rod coupling sleeve manufacturer from China, Sinodrills delivers precision-engineered coupling sleeves that ensure robust connections, maximizing power transmission and extending tool life. Experience enhanced drilling efficiency and reliability with our superior solutions.
Various Coupling Sleeves for Drilling Tools
steel drill rod adapter quick coupling sleeve for mining
Sinodrills offers premium steel drill rod adapter quick coupling sleeves, specifically designed for the rigorous demands of mining operations. Our meticulously engineered sleeves ensure rapid, secure connections, significantly reducing downtime and boosting drilling efficiency. Manufactured from high-grade steel for maximum durability and wear resistance, these quick coupling sleeves provide a reliable and efficient solution for your mining drilling needs, enhancing productivity and safety on site

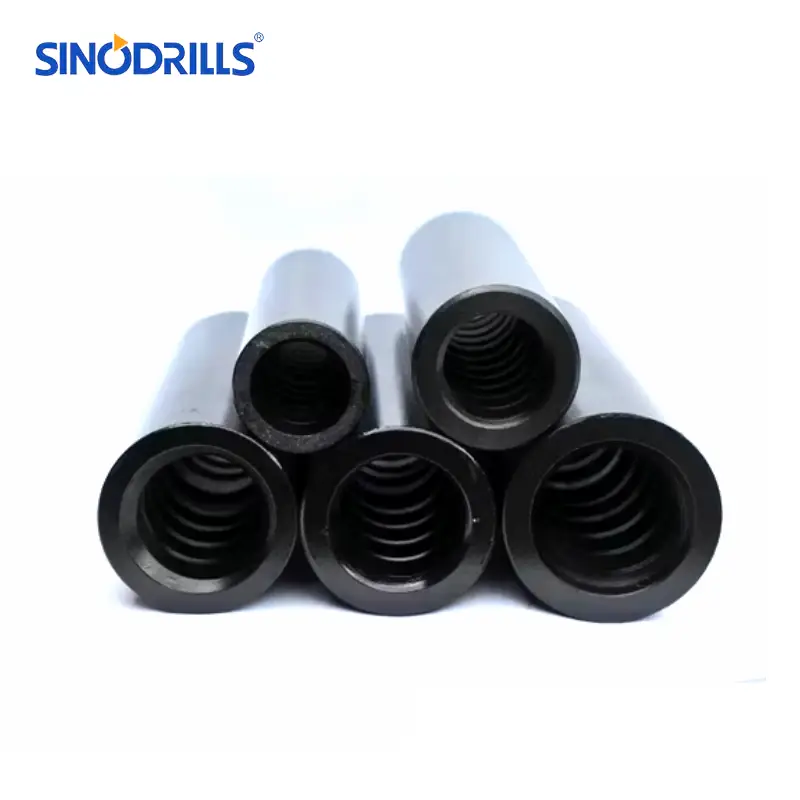

r32-r38 160mm rock drill coupling sleeves
For mining operations demanding robust performance, we offer R32, R38 160mm rock drill coupling sleeves. Engineered for superior strength and precise fit, these sleeves ensure optimal power transfer and extended drill string life in harsh conditions. Trust our quality to minimize downtime and maximize your drilling efficiency, providing reliable connections crucial for your mining productivity.

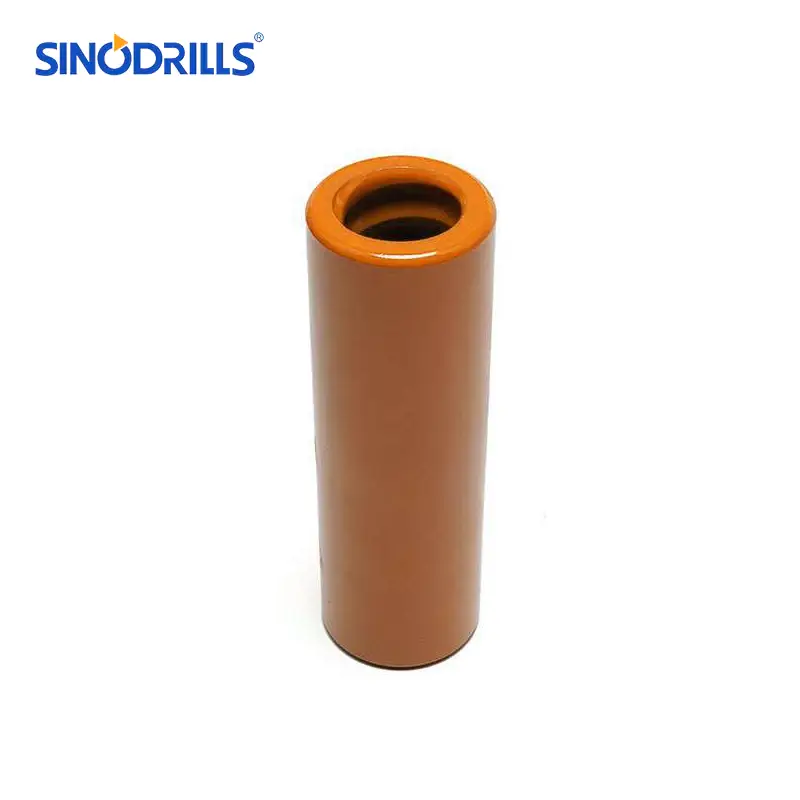

full bridge drill rod coupling sleeves
We specialize in manufacturing and supplying full bridge drill rod coupling sleeves. Engineered from premium alloy steel with precision CNC machining and heat treatment, our couplings ensure superior strength, wear resistance, and reliable connections for drill rods. We offer various thread types and sizes, guaranteeing optimal performance in mining, tunneling, and construction applications.
tungsten carbide crossover drill coupling sleeve
We specialize in manufacturing and supplying tungsten carbide crossover drill coupling sleeves. Our robust sleeves ensure efficient energy transmission and superior wear resistance for demanding drilling applications. We offer various sizes and types, including semi-bridge, full-bridge, and crossover adapters, tailored to meet diverse drilling requirements.

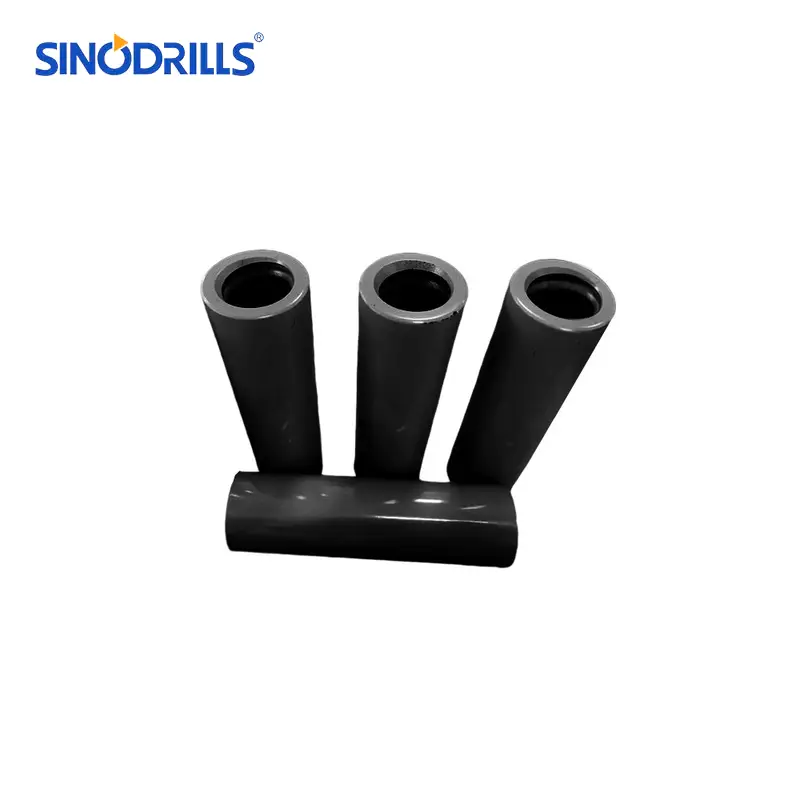

T38 drill rod thread coupling sleeves
We manufacture and supply T38 drill rod thread coupling sleeves. Our robust coupling sleeves are designed for optimal performance and durability in demanding mining and construction applications. Available in various types like semi-bridge and full-bridge, they ensure secure and efficient connections between drill rods, enhancing drilling depth and productivity. We prioritize precision engineering and premium materials for reliable operation

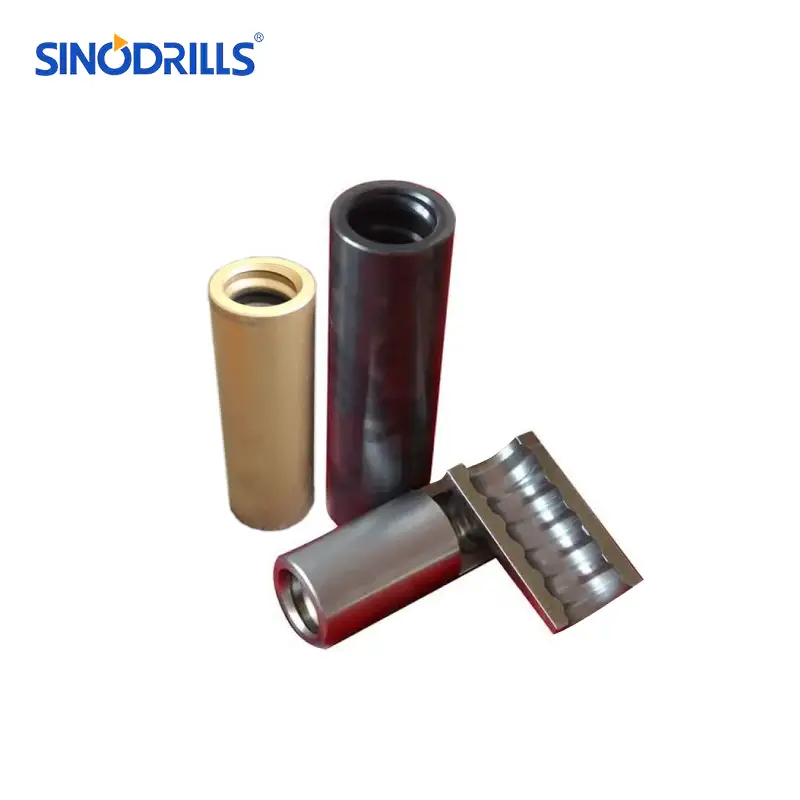

threaded drill rod coupling sleeves
We provide high-quality threaded drill rod coupling sleeves, crucial for efficient rock drilling operations. Our durable coupling sleeves ensure secure connections, optimal energy transmission, and extended tool life. Available in various thread types (R, T series) and sizes, we manufacture both semi-bridge and full-bridge designs, meeting diverse mining, tunneling, and construction demands with precision.

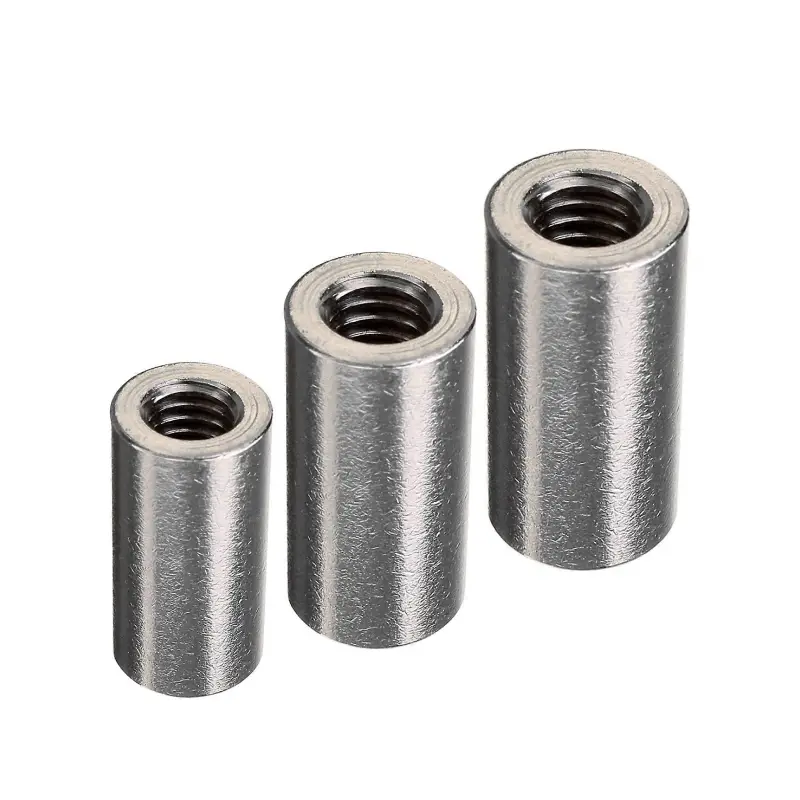

threaded rod coupling sleeve
We offer threaded rod coupling sleeves, essential for securely connecting and extending threaded rods. Available in various materials like steel and stainless steel, our sleeves ensure strong, reliable connections for diverse applications. They are ideal for construction, mining, and general fastening, providing durability and ease of installation.
anchor rod coupler
We offer robust anchor rod couplers, designed for reliably extending and connecting anchor rods in concrete foundations. These couplers ensure a strong, continuous load path, crucial for supporting heavy structures like light poles, traffic signals, and steel columns. Available in various sizes and materials, our couplers are hot-dip galvanized for enhanced corrosion resistance, providing durable and secure solutions for critical anchoring applications.
hex coupling sleeve for extension rods
We offer robust hex coupling sleeves, designed for extending threaded rods with exceptional strength and stability. Their hexagonal shape allows for easy tightening with standard wrenches, ensuring secure and precise connections. Crafted from durable materials like steel and stainless steel, these sleeves are ideal for demanding applications in construction, machinery, and infrastructure, providing reliable extensions and peace of mind.
Full Bridge Coupling Sleeve and Semi Bridge
Feature | Full-Bridge Coupling Sleeve | Semi-Bridge Coupling Sleeve |
Thread Design | Threads extend along the entire length | Central unthreaded section, threads on ends |
Strength | High strength and rigidity | Good strength |
Applications | Demanding drilling conditions, high torque | Less severe drilling, frequent rod changes |
Ease of Use | More difficult to make-up/break-out | Easier to make-up/break-out |
Both full-bridge and semi-bridge coupling sleeves play vital roles in connecting drill rods, but they differ in their design and application.
Full-Bridge Coupling Sleeve: This type features threads that extend across the entire length of the coupling, providing maximum thread engagement. This design offers superior strength and rigidity, making it ideal for demanding drilling conditions where high torque and thrust are encountered. It ensures a very robust and stable connection, minimizing the risk of thread stripping or rod separation under extreme stress.
Semi-Bridge Coupling Sleeve: In contrast, the semi-bridge coupling sleeve has a central, unthreaded section, with threads only on the ends. This design allows for easier make-up and break-out of the drill string, which can be advantageous in situations requiring frequent rod changes. While offering good strength, the reduced thread engagement means it’s generally used in less severe drilling environments compared to its full-bridge counterpart, balancing ease of use with sufficient connection integrity.

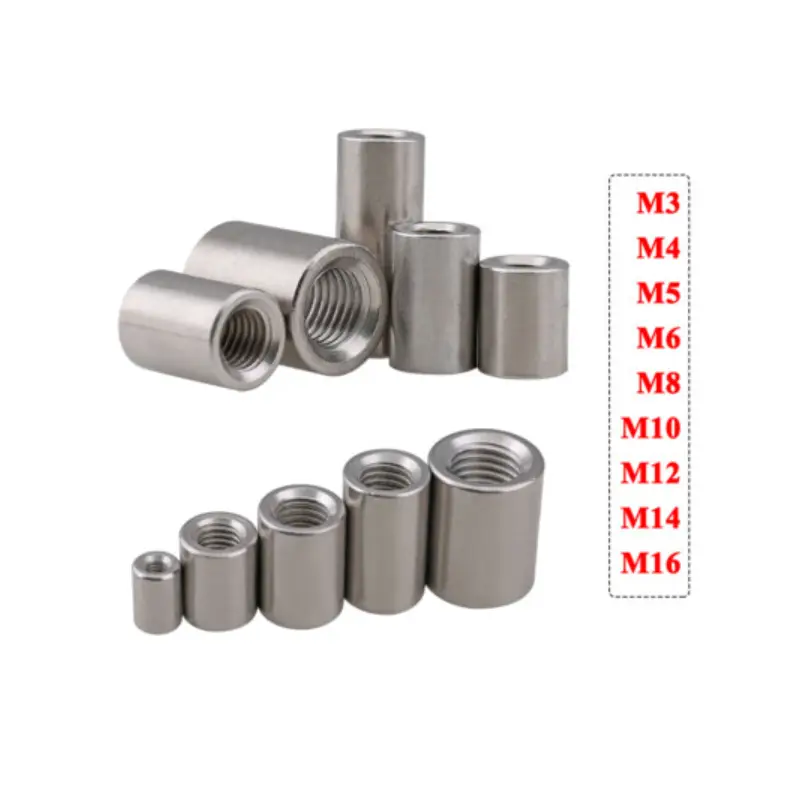

Coupling Sleeve with Different Sizes
Diverse Sizes: Available in a wide range of metric sizes, including M3, M4, M5, M6, M8, M10, M12, M14, and M16, to suit various project requirements.
Secure Connections: Designed to securely connect and extend threaded rods, ensuring stability and strength.
Durable Materials: Crafted from high-quality materials such as steel and stainless steel for enhanced durability and corrosion resistance.
Versatile Applications: Ideal for use in construction, mining, general fastening, and other industrial applications.
Easy Installation: Engineered for straightforward and efficient installation, saving time and effort on the job site.

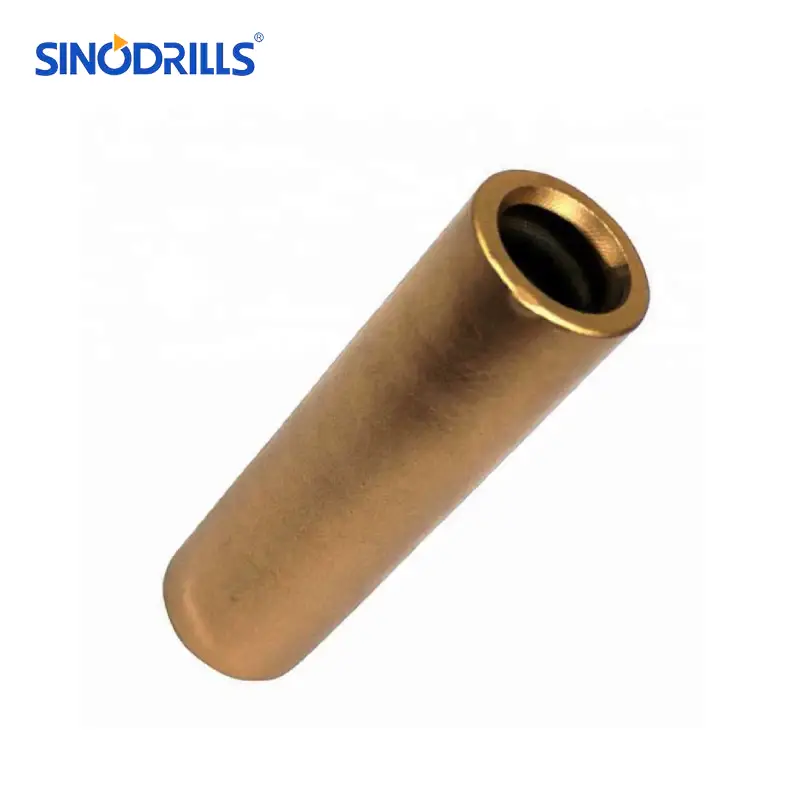

Customize Your Desired Coupling Sleeves for Drilling Tools
Thread Type and Size
We understand that different drilling applications require distinct thread patterns. We can custom-manufacture coupling sleeves with various international standard threads, such as R-series (e.g., R22, R25, R32, R38) or T-series (e.g., T38, T45, T51), as well as crossover threads to accommodate transitions between different rod types or diameters. This ensures perfect compatibility and a secure connection.
Material Selection and Heat Treatment
The performance of a coupling sleeve heavily depends on its material properties. We utilize alloy steels, carefully selecting the right grade to match your drilling environment’s demands for strength, wear resistance, and toughness. Our advanced heat treatment processes, including carburization, further enhance durability and extend the service life of the sleeves, even in abrasive conditions.
Length and Diameter
We offer precise customization of both the overall length and external diameter of the coupling sleeves. This allows us to create sleeves that seamlessly integrate with your existing drill string components and fit within the constraints of your drilling equipment. Accurate dimensions are crucial for maintaining proper alignment and efficient power transmission downhole.
Design (Full-Bridge vs. Semi-Bridge)
We can produce both full-bridge and semi-bridge coupling sleeves, and even adapter couplings, to suit your specific operational needs. Whether you require the maximum thread engagement and rigidity of a full-bridge for heavy-duty applications or the easier make-up and break-out of a semi-bridge, we can tailor the design to optimize your drilling efficiency and safety.

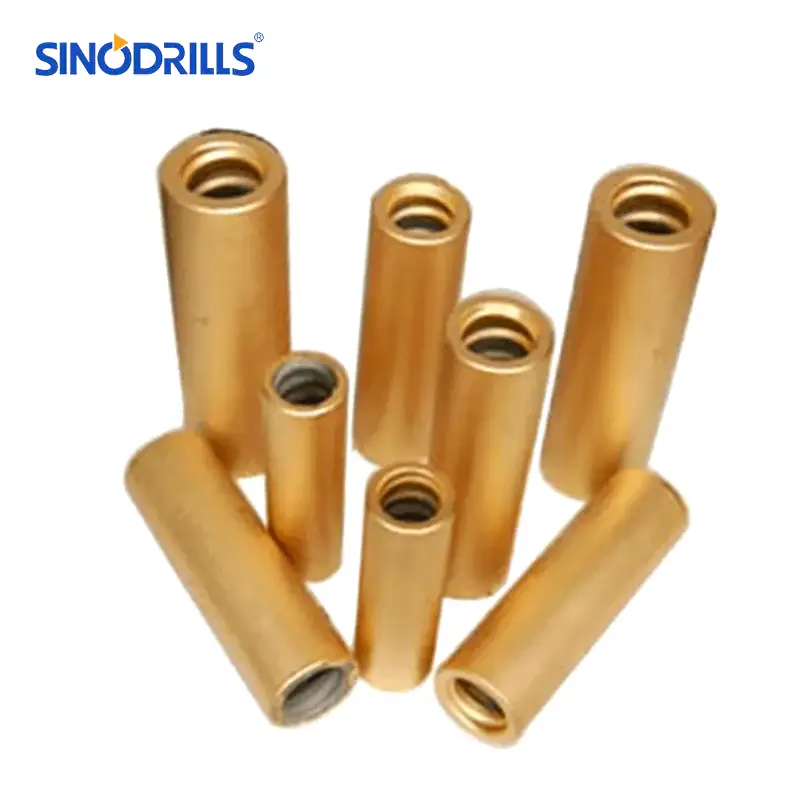

what are coupling sleeves for drilling tools?
Coupling sleeves are essential components in rock drilling, acting as threaded connectors to join drill rods together or to connect a drill rod with a shank adapter.
They facilitate the transmission of impact energy and rotation from the drill rig to the drill bit, ensuring a continuous and efficient drilling process in various mining, tunneling, and construction applications.
what are coupling sleeves used for?
Coupling sleeves for drilling tools are crucial threaded components designed to connect drill rods to each other, or to link a drill rod with a shank adapter.
Their primary purpose is to create a secure and continuous drill string, enabling the efficient transmission of power and impact energy from the drill rig to the drill bit at the rock face. This ensures effective rock penetration in various demanding applications.
Connecting Drill String Components: Coupling sleeves seamlessly join individual drill rods, allowing for the creation of longer drill strings as required by borehole depth. This modularity is essential for deep drilling operations, providing flexibility and efficiency in adding or removing rods.
Transmitting Energy and Rotation: They are engineered to facilitate the powerful transfer of rotational torque and percussive impact energy from the drilling machine through the entire drill string to the drill bit. A secure connection minimizes energy loss, ensuring maximum drilling performance and productivity in challenging rock formations.
Maintaining Alignment and Stability: Beyond simply connecting, coupling sleeves ensure proper alignment between drill rods, which is critical for drilling accuracy and preventing premature wear on tools. This stability reduces vibration and stress on the drill string, contributing to a longer lifespan for all components.
Adapting Different Thread Types: Some coupling sleeves, known as crossover couplings, are specifically designed to connect drill rods with different thread types or diameters. This adaptability is vital for drilling operations that might utilize various tools or require transitions between different rod series for specialized tasks.

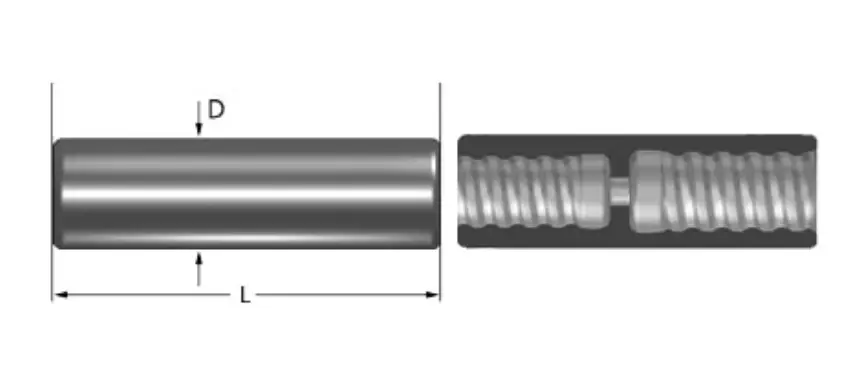

how to install coupling sleeves?
Installing threaded rod coupling sleeves correctly is crucial for ensuring the integrity and strength of your extended rod assemblies. A proper installation prevents structural failures, enhances safety, and maximizes the lifespan of your components.
This detailed guide will walk you through each step, from initial preparation to final tightening, ensuring a secure and reliable connection for various applications.
Step 1: Prepare the Rods and Workspace
Before starting, gather all necessary tools, including the coupling sleeve, threaded rods, wrenches (adjustable or open-ended, sized for the rods), and a wire brush or clean cloth. Thoroughly inspect both threaded rods. They must be free of any rust, dirt, or burrs that could impede smooth threading or compromise the connection’s strength.
Use a wire brush if necessary to clean the threads. Verify that the diameter and thread pitch of both rods precisely match the internal threading of the coupling sleeve. This ensures a tight, secure fit and prevents cross-threading.
Step 2: Initiate the First Rod’s Connection
Carefully align the end of the first threaded rod with one opening of the coupling sleeve. Gently begin to thread the rod into the sleeve by turning it clockwise. Apply steady, even pressure, ensuring the threads engage smoothly without resistance or binding.
Continue turning until the rod is threaded approximately halfway into the sleeve. It’s crucial not to overtighten this initial connection, as you need to leave sufficient space within the sleeve for the second rod to be properly inserted and engaged.
Step 3: Engage the Second Rod
With the first rod securely (but not fully) in place, take the second threaded rod. Align its end precisely with the remaining open end of the coupling sleeve. Begin to thread this second rod into the sleeve by turning it clockwise. Similar to the first rod, ensure a smooth, unforced engagement of the threads.
Continue rotating until the end of the second rod makes contact with the end of the first rod inside the sleeve. You should feel a slight resistance as the two rod ends meet.
Step 4: Achieve Full Tightness and Security
Once both rods are engaged within the coupling sleeve and their ends are touching, it’s time to fully tighten the connection. Using your wrenches, apply firm and even torque to both threaded rods, turning them clockwise simultaneously if possible, or alternating between them.
The goal is to create a robust and stable connection that will withstand the intended load and environmental conditions. Avoid excessive force that could strip the threads, but ensure the connection is tight enough to prevent any future loosening, vibration, or displacement. A properly tightened coupling sleeve ensures the structural integrity of your extended threaded rod assembly.
types of coupling sleeves for drilling
Coupling sleeves for drilling tools come in various types, each designed for specific drilling conditions and operational preferences. The main types ensure secure connections and efficient energy transfer throughout the drill string.
Semi-Bridge Coupling Sleeve (Standard Coupling): This is the most common type, featuring threads at both ends with a central, unthreaded “bridge” section. The drill rod ends butt together in this unthreaded area. This design is highly effective for high-torque drilling rigs as it provides excellent rigidity and prevents the drill rods from over-screwing, ensuring consistent performance in many applications.
Full-Bridge Coupling Sleeve: Unlike the semi-bridge, the full-bridge design has continuous threads along its entire internal length. This allows for full thread engagement with the drill rods, offering maximum strength and preventing any potential loosening along the threaded joints. It’s particularly favored in surface mining and demanding applications where a very firm, almost jam-proof connection is critical, facilitating easier disassembly.
Crossover Coupling Sleeve (Adapter Coupling/Reducer Coupling): These specialized sleeves are designed to connect drill rods or components with different thread types or diameters. For instance, a crossover coupling might link an R-series drill rod to a T-series drill rod, or a smaller diameter rod to a larger one. They are essential for achieving compatibility within mixed drill strings, providing flexibility when specific tools or rods are required.
why choose our coupling sleeves for drilling
Choosing our coupling sleeves means opting for superior performance and reliability in your drilling operations. We stand out for several key reasons:
Premium Material Quality: We use only high-grade alloy steels, carefully selected for their exceptional strength, wear resistance, and toughness. This ensures our coupling sleeves can withstand the harshest drilling conditions, from abrasive rock formations to high impact loads, significantly extending their service life and reducing downtime.
Precision Manufacturing and Heat Treatment: Our coupling sleeves are produced using state-of-the-art CNC machining, guaranteeing precise dimensions and perfect thread engagement. Coupled with advanced heat treatment processes like carburization, this maximizes the durability and fatigue resistance of each sleeve, ensuring consistent performance and a secure connection.
Tailored Solutions: We offer extensive customization options, including various thread types (R, T series), sizes, lengths, and designs (full-bridge, semi-bridge, and crossover). This allows us to provide solutions perfectly matched to your specific drilling rig, rod systems, and geological requirements, optimizing your drilling efficiency and safety.
Proven Reliability and Expertise: With years of experience in the drilling tools industry, particularly here in Qingdao, Shandong, China, we have a deep understanding of drilling challenges. Our coupling sleeves are engineered for consistent reliability, backed by rigorous quality control, providing you with peace of mind and maximizing your productivity on every project.
Send Your Inquiry Now
All-in-one Coupling Sleeves for Drilling Tools Solutions for Your Project
We deliver comprehensive, all-in-one coupling sleeve solutions for your drilling projects. From diverse thread types (R, T series) and sizes to material selection, heat treatment, and custom lengths/diameters, we tailor every sleeve precisely. Whether full-bridge for heavy-duty or semi-bridge for ease of use, and ensure secure connections, maximize energy transfer, and enhance overall drilling efficiency and safety.
