The weight of a drill rod is a crucial factor in any drilling operation. It directly impacts everything from drilling efficiency and energy consumption to transportation and safety. Understanding how much a drill rod weighs and the factors that influence it is essential for planning a successful and cost-effective project.
This blog will explore the key variables that determine drill rod weight, including length, diameter, and steel grade. We’ll break down the calculations and provide practical examples, helping you make informed decisions when selecting the right tools for your specific application and logistical requirements.
What are Drill Rod Weights?
Drill rod weights refer to the mass of the steel rods used in drilling operations, a critical factor that affects project logistics and performance. The weight isn’t uniform; it varies significantly based on length, diameter, and steel grade.
A longer and wider rod will be heavier, while the specific alloy used can also add or subtract from the total weight. Understanding a rod’s weight is crucial for determining a drilling rig’s capacity, calculating transportation costs, and ensuring the safety of the crew during handling and operation.

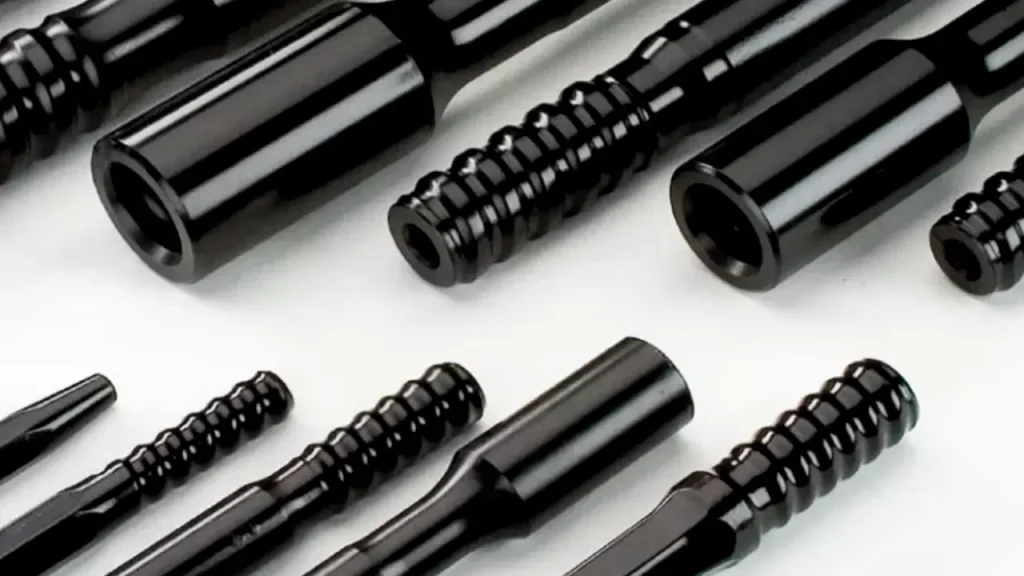

How Much Does a Drill Rod Weigh?
The weight of a drill rod is determined by its length, diameter, and steel grade, with the diameter having the most significant impact on the overall weight per foot or meter. For example, a standard 20-foot long steel drill rod with a 2-inch diameter can weigh around 80-100 pounds.
Specialized alloys or heavier-duty designs will increase the weight. Accurately knowing the weight is crucial for logistics and ensuring the drilling rig can handle the total weight of the entire rod string.
- Length: A longer rod will weigh more.
- Diameter: A larger diameter rod, with more material, will be significantly heavier.
- Steel Grade: Different steel alloys have varying densities, affecting the final weight.
NQ Drill Rod Weight
NQ drill rods are a common type of core drilling rod, designed for use in NQ-sized core barrels, with an outer diameter of 2.75 inches (69.9 mm). The weight of Nq drill rods is a critical factor for drilling efficiency and transport logistics. Typically, an Nq drill rod weighs approximately 4.5 to 5.5 pounds per foot (6.7 to 8.2 kg per meter).
This NQ drill rod weight can vary slightly based on the specific steel grade and any additional features, such as thread configurations. The relatively lighter weight of Nq rods compared to larger sizes allows for deeper drilling with less powerful equipment, making them ideal for mineral exploration and geotechnical projects.
- Standard Size: NQ-sized rods have a 2.75-inch (69.9 mm) outer diameter.
- Weight Per Meter: Approximately 6.7 – 8.2 kg per meter.
- Typical Lengths: Commonly available in 3-meter or 10-foot lengths.
| Rod Size | Outer Diameter | Weight per Meter (kg/m) |
| NQ | 69.9 mm | 6.7 – 8.2 |

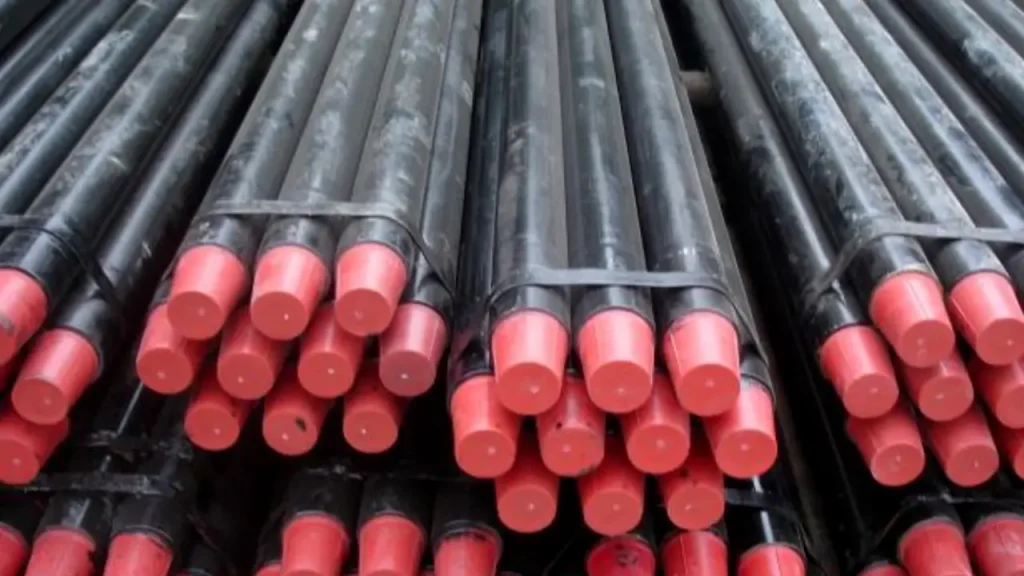

HQ Drill Rod Weight
HQ drill rods are a common size used in core drilling, with an outer diameter of 3.5 inches (88.9 mm). The weight of HQ drill rods is an important consideration for a rig’s lifting capacity and overall project logistics. An HQ drill rod typically weighs between 7.0 and 8.5 pounds per foot (10.4 to 12.6 kg per meter), depending on the specific steel alloy and thread design.
Their increased weight compared to NQ rods allows them to transmit more energy for drilling in harder formations while still being manageable for most medium-sized drilling rigs used in mineral exploration and geotechnical projects.
- Standard Size: HQ-sized rods have a 3.5-inch (88.9 mm) outer diameter.
- Weight Per Meter: Approximately 10.4 – 12.6 kg per meter.
- Typical Lengths: Commonly available in 3-meter or 10-foot lengths.
| Rod Size | Outer Diameter | Weight per Meter (kg/m) |
| HQ | 88.9 mm | 10.4 – 12.6 |

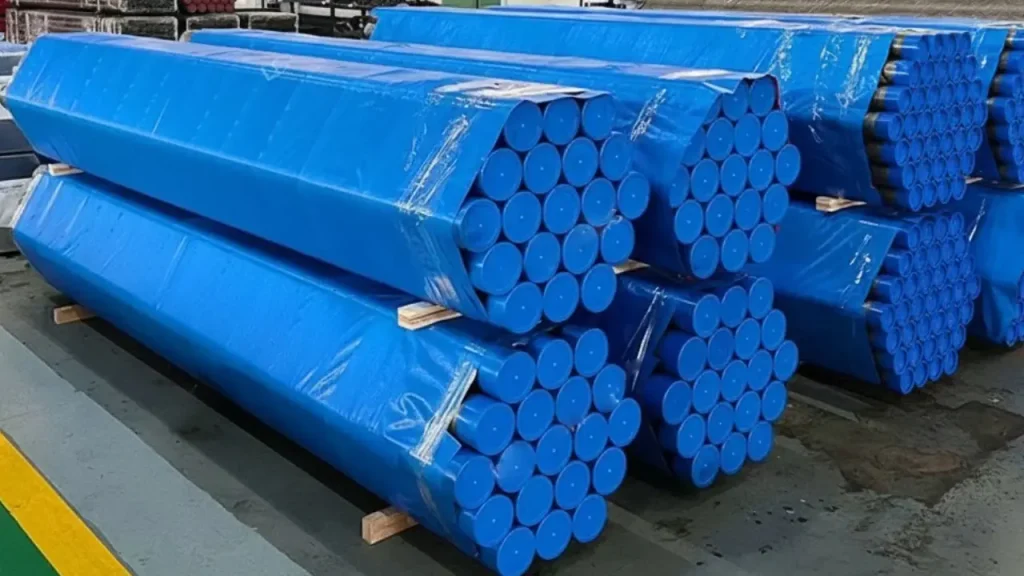

How to Measure Drill Rod Weight?
Measuring drill rod weight is a straightforward process that helps you determine the total load for your drilling rig and transportation. This is a crucial step for both safety and project efficiency, ensuring you don’t exceed equipment limitations.
Step 1: Gather Information
First, you need to collect all the necessary information about the drill rod you want to measure. This includes the rod’s length, its outer diameter (OD), and the inner diameter (ID) if it is a hollow rod. You also need to know the specific steel grade of the rod, as different alloys have varying densities. This information is typically provided by the manufacturer in the product specifications.
Step 2: Calculate Volume
To calculate the weight, you must first find the volume of the steel. For a solid rod, use the formula for a cylinder: V=πr2h, where r is the radius and h is the length. For a hollow rod, calculate the volume of the outer cylinder and subtract the volume of the inner cylindrical hole. This calculation gives you the exact volume of the steel material in cubic inches or cubic centimeters. It is the most critical step for getting an accurate weight measurement.
Step 3: Use Density to Find Weight
Finally, you multiply the steel’s volume by its density to find the total weight. The density of steel is approximately 0.2836 pounds per cubic inch or 7.85 grams per cubic centimeter. This calculation gives you the final weight in pounds or kilograms. It’s a simple process of multiplying the volume you calculated in the previous step by the known density of the material.
How to Choose Suitable Drill Rod Weights?
Choosing the right drill rod weight involves a strategic balance between your project’s needs and equipment capabilities. Heavier rods provide more downforce for drilling in hard rock formations but may require a more powerful rig and increase transportation costs.
Lighter rods are easier to handle and transport, but they may lack the necessary force for deeper or more challenging applications. The ideal weight depends on the following factors:
- Geological Conditions: For hard rock and deep drilling, heavier rods provide the necessary force to break through dense formations.
- Drilling Rig Capacity: Ensure the total weight of the rod string does not exceed your rig’s maximum hoist and thrust capacity to prevent damage.
- Project Logistics: Lighter rods are easier to transport to remote locations and reduce fuel consumption, lowering overall project costs.
- Desired Hole Diameter: Larger diameter holes typically require larger, heavier rods to withstand the increased stress and torque.
Conclusion
In conclusion, understanding drill rod weight is more than just a logistical concern; it’s a critical component of optimizing your entire drilling operation. By carefully considering the impact of diameter, length, and material on the overall weight, you can enhance drilling efficiency, reduce energy costs, and streamline transportation, all of which contribute to a more profitable project.
The weight of your drill rods directly affects the capacity and performance of your drilling rig, as well as the safety of your crew. By making informed choices about the tools you use, you can ensure that your equipment operates within its limits while maximizing productivity, ultimately leading to a more reliable and successful project outcome.

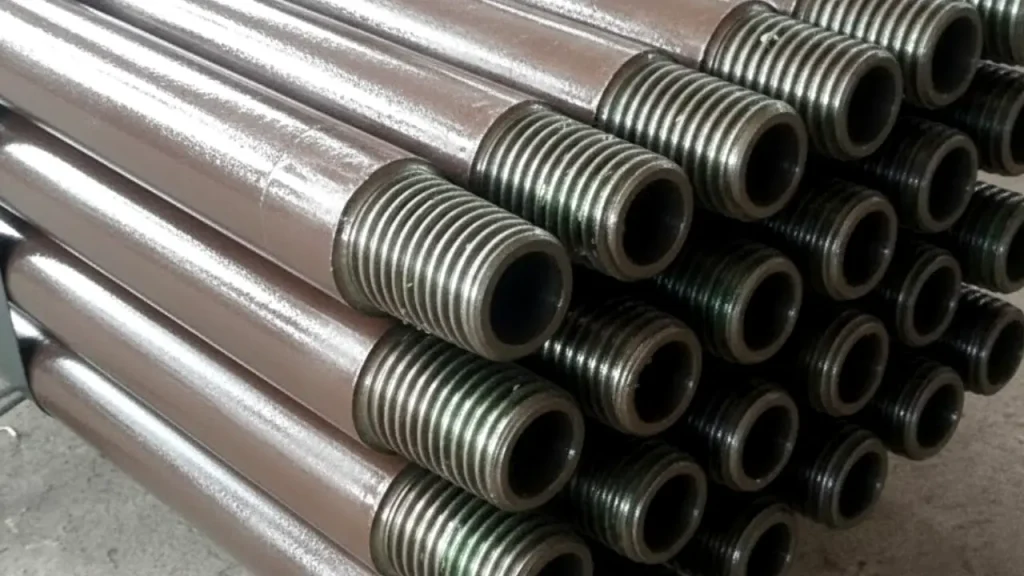

For your next project, trust the experts at Sinodrills to provide high-quality, wholesale drill rods. Our products are engineered for optimal performance and durability, with various options to meet your specific weight and strength requirements. Contact us today to get the reliable drill rods you need to get the job done right.
