How to Manufacture Shank Adapters?

Manufacturing a high-quality shank adapter is a complex and precise process that goes far beyond simple metal forging. It requires a deep understanding of metallurgy, mechanical engineering, and the extreme forces these tools must endure. A meticulous manufacturing process is the key to creating an adapter that can withstand the rigorous demands of rock drilling.

This blog will take you on a journey through the essential steps involved in producing a durable and reliable shank adapter. From the initial selection of premium raw materials to the final, critical stages of heat treatment and quality control, we will reveal the secrets behind creating a top-performing drilling tool.

Shank Adapter Uses

Shank adapters are indispensable tools used in a wide array of rock drilling applications to ensure the efficient transfer of power from the drill rig to the drill string. Their robust design and specialized engineering enable them to withstand high-frequency impacts, rotational torque, and feed force, making them essential for a variety of demanding jobs.

• Mining: In both open-pit and underground mines, shank adapters are critical for creating blast holes for ore extraction and for drilling holes for rock support, such as roof bolting.
• Quarrying: They are used in quarries to drill holes for blasting large rock formations, which are then broken down into smaller pieces for use in construction and aggregate production.
• Construction: Shank adapters are fundamental in various construction projects, including foundation drilling, road building, tunneling, and creating holes for anchoring and support structures in rock.
• Civil Engineering: For large-scale infrastructure projects like dam construction and bridge building, these adapters are used to drill for geological surveys, ground reinforcement, and site preparation.
• General Utilities: They are also used for smaller-scale projects such as drilling for water wells, geothermal systems, and utility installations where drilling through rock is necessary.

How to Manufacture Shank Adapters?

The manufacturing of drill bit shank adapters is a precise and complex process that requires advanced technology and skilled craftsmanship. A meticulous process is key to creating a tool that can withstand the rigorous demands of rock drilling.

Step 1: Cutting

Our manufacturing process begins with a circular metal rod, which we cut into smaller, cylindrical pieces. This initial step provides the foundational raw material for each individual adapter, ensuring that every piece starts with the correct length and volume. This is a crucial step to begin the process.

We then prepare the cut pieces for the next stages of manufacturing. This initial cutting operation is performed with a high degree of precision to minimize waste and ensure that each piece has the correct starting dimensions, which is essential for all subsequent processes.

Step 2: Raw Material Forging

Next, we heat the cut pieces until they are glowing red, then we forge them into the basic shape of the shank adapter. This process creates a dense and robust core, which helps align the grain flow of the steel and ultimately strengthens the final product.

The forging process is vital for the adapter’s structural integrity. By deforming the metal while it is hot, we refine and orient the grain structure to resist the high-impact forces it will encounter in a drilling application, providing superior durability and performance.

Step 3: Rough Machining

After forging, we place the pieces into a machine for rough machining. This initial shaping process removes excess material and starts to form the exterior features of the adapter. It sets the foundation for more precise work in the later machining steps.

This step is crucial for preparing the adapter for subsequent operations. We remove the rough, uneven surfaces left by the forging process and bring the part to a more manageable shape, ensuring a smooth and efficient transition to the next phase of production.

Step 4: Drilling Hole

A crucial step in our process involves drilling a central hole through the center of the part. This hole is essential for flushing rock cuttings during drilling operations. Its precise alignment and diameter are vital for ensuring effective air or water flow.

We drill the hole with extreme accuracy to ensure that the flushing medium reaches the drill bit efficiently. A well-drilled hole is a key factor in preventing the borehole from becoming clogged with debris, which can lead to reduced drilling speed and increased tool wear.

Step 5: Semi-Finish Machining

Following the initial roughing, our parts undergo semi-finish machining. This refines the shape and brings the dimensions closer to their final tolerances. This step is critical for preparing the adapter for the high-precision finishing and heat treatment stages.

This intermediate machining step ensures that the adapter’s geometry is consistent and accurate. By refining the surface and dimensions at this point, we minimize the amount of material that needs to be removed in the final, more delicate grinding operations.

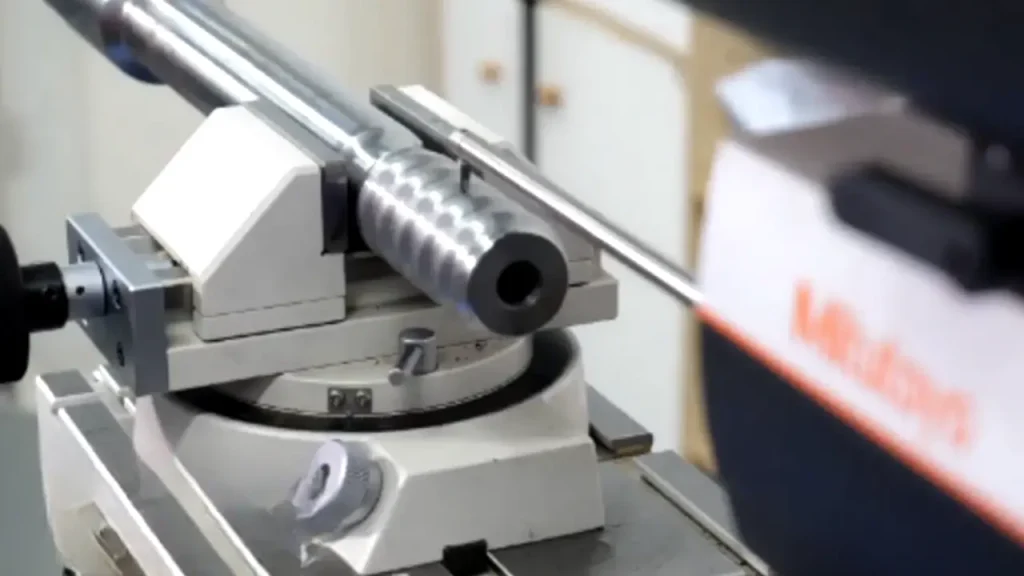

Step 6: Profile Inspection

At this stage, we inspect the parts to check their profile and dimensions. This quality control step ensures that the adapters meet our design specifications. This helps to prevent any errors from moving to the next steps.

This inspection is a critical checkpoint in our manufacturing process. By identifying and correcting any dimensional or profile issues early, we prevent the investment of further time and resources into parts that do not meet the required quality standards.

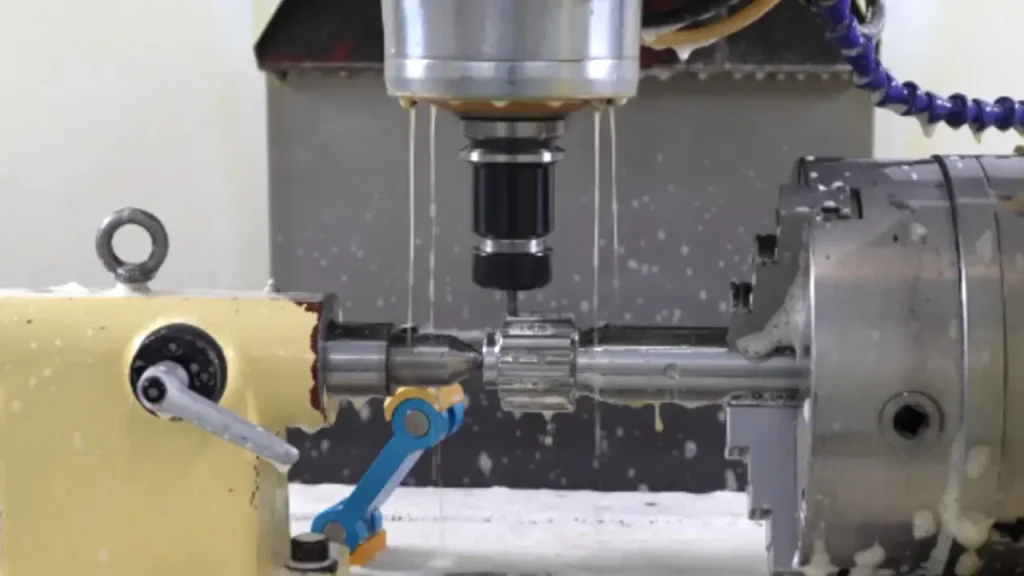

Step 7: Milling

We then mill the parts to create the final desired grooves and splines. This intricate milling process forms the features that will securely fit into the drill rig and connect to other tools. Precision milling is necessary for optimal performance.

The milling operation is what defines the adapter’s specific connection type, whether it’s for a particular brand or a specialized application. The accuracy of these features is paramount for ensuring a perfect fit, which is essential for efficient power transmission and preventing tool slippage.

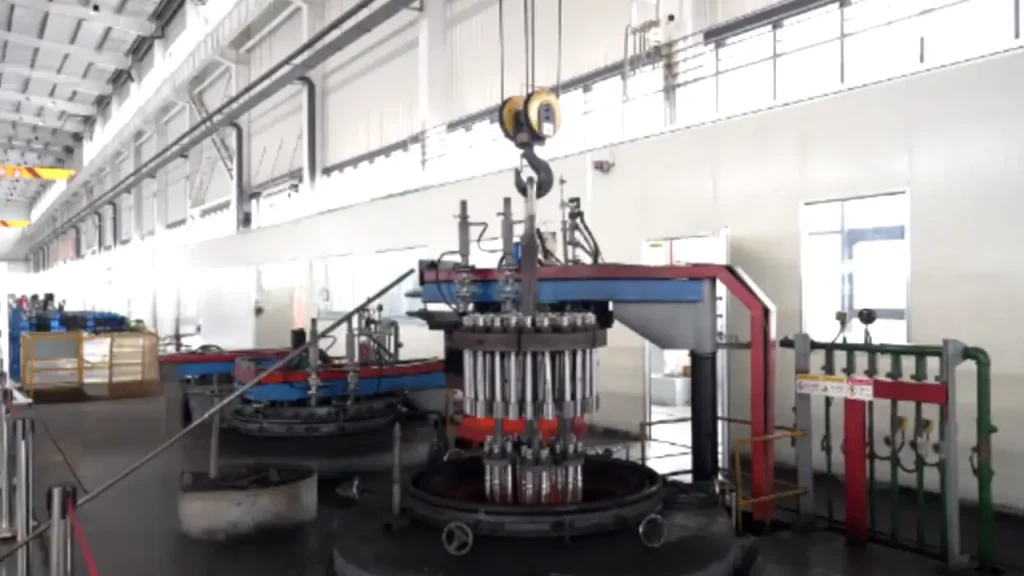

Step 8: Carburizing and Quenching

The adapters undergo carburizing, a heat treatment process that enriches the surface with carbon. This is followed by quenching, where the adapters are rapidly cooled. This process creates a very hard and wear-resistant surface while maintaining a tough core.

The combination of carburizing and quenching creates a dual-property material. The hard outer layer resists abrasion and wear from constant impact, while the softer, more ductile core prevents the adapter from fracturing under the immense stress of drilling.

Step 9: Low-Temperature Tempering

After the hardening process, we heat the parts again at a lower temperature. This step, known as tempering, reduces the brittleness of the material and improves its overall toughness. It provides a balance of hardness and durability for long-term use.

Tempering is essential for relieving internal stresses that build up during quenching. Without it, the adapter would be too brittle and prone to cracking. This step ensures that the tool can absorb high-impact shock without fracturing, prolonging its service life.

Step 10: Metallographic Examination

We take a sample adapter and examine it under a microscope. This metallographic examination analyzes the internal microstructure of the steel to ensure that the heat treatment was successful and that the material properties meet our required standards.

This rigorous quality control check is a final verification of the material’s integrity. By confirming the grain structure and hardness, we can be confident that the adapter will perform as expected, ensuring reliability and safety for our customers.

Step 11: Grinding

We grind the parts to achieve a smooth and precise finish. This final shaping step ensures that all surfaces have the correct dimensions and tolerances for a perfect fit and efficient operation, reducing friction and wear on the drill rig.

Grinding is a critical finishing process that achieves the high level of precision required for the adapter’s mating surfaces. A smooth and accurately ground surface minimizes energy loss and prevents damage to both the adapter and the drill’s internal components.

Step 12: Marking

Each finished adapter is marked with a laser. This process etches product information onto the surface, including our brand logos or part numbers. This marking is essential for quality tracking and for ensuring traceability throughout the product’s life cycle.

Laser marking provides a permanent and durable identification that will not wear away during use. This allows for easy tracking of each part, which is crucial for inventory management and for providing detailed product information to our customers.

Step 13: Cleaning

We put the parts through a cleaning machine that uses a spray to remove any debris, oils, or other contaminants. This step is important for preparing the surface for the final treatment and ensuring a clean, finished product.

A clean surface is essential for the effectiveness of the anti-rust treatment and for ensuring the product is in pristine condition for our customers. This process also prevents any leftover debris from affecting the adapter’s performance.

Step 14: Anti-Rust Treatment

We then dip the cleaned parts in a special liquid for an anti-rust treatment. This process provides a protective layer that prevents corrosion and degradation of the steel. This is especially important for parts that may be stored before use.

The anti-rust treatment ensures that the adapter maintains its quality and integrity, even in humid or harsh environments. This protective coating safeguards the tool during shipping and storage, ensuring it arrives ready for immediate use.

Step 15: Transfer for Inspection

After all the manufacturing and treatment steps, we move the parts to a designated area for final inspection. This transfer ensures that the parts are organized and ready to be checked by our quality control team before they are approved as finished products.

This controlled transfer process minimizes the risk of damage or mix-ups. By preparing the parts for a final, comprehensive inspection, we can guarantee that only products meeting the highest standards are sent to our customers.

Step 16: Finished Product Inspection

An individual from our team manually inspects each finished product. Using precision tools like a caliper, they measure its key dimensions to confirm they meet all specifications. This is the final check before the product is cleared for packaging.

This manual inspection provides a crucial human element of quality control. Our inspector can identify any subtle defects that automated machines might miss, providing a final layer of assurance that the product is of the highest quality.

Step 17: Warehousing

The final step is warehousing. We place the finished products in boxes and prepare them for storage and distribution. This final stage ensures that our high-quality shank adapters are ready to be shipped to customers around the world.

Proper warehousing ensures that the adapters are stored in a safe and organized manner. This protects them from damage and allows for efficient inventory management and shipping, so our customers receive their orders quickly and in excellent condition.

Conclusion

In conclusion, the manufacturing of a shank adapter is a sophisticated process that combines advanced technology with meticulous attention to detail. Every step, from the precise forging and machining to the specialized heat treatment, is critical in producing a tool that can deliver maximum performance and durability in the most challenging drilling conditions.

The quality of the final product is a direct result of the rigor of its manufacturing process. By adhering to the highest standards, we ensure that our shank adapters provide a secure, efficient link between your drill rig and the drill string, ultimately leading to faster penetration rates and a longer service life for your tools.
