The pipe umbrella system is a fundamental ground support technique essential for modern, safe tunneling. We utilize this method to establish a robust canopy ahead of the excavation face, effectively stabilizing weak or fractured rock and soil. This procedure ensures a secure environment, allowing excavation to proceed efficiently and reducing the risk of ground movement.
We meticulously follow a sequence of steps to implement the pipe umbrella system correctly. From precision drilling to pipe installation and final grouting, each stage is critical for creating a reliable pre-support structure. We provide the necessary durable components to facilitate this crucial construction procedure for successful tunnel advance.
What is an Umbrella Pipe?
The umbrella pipe system is a key pre-support technique used in tunneling and underground construction. We define it as a series of long steel pipes, or casing tubes, drilled in an arch above the tunnel crown before excavation. After grouting, these pipes form a rigid, load-bearing canopy, or “umbrella,” to stabilize weak ground and control rock deformation.
What is Umbrella Pipe Used for?
The umbrella pipe system is a crucial technique in modern tunneling and underground construction, designed to enhance safety and stability. We employ this method primarily for pre-support ahead of excavation, creating a reinforced arch structure.
This system effectively manages ground risk when working in challenging geological conditions, particularly those involving fractured rock, weathered rock, or soft soil. We provide the essential pipes and components needed for successful implementation.
Pre-Support in Unstable Ground
- Stabilizing Weak Rock and Soil We use the umbrella pipe system to provide immediate structural reinforcement to weak, fractured, or highly weathered rock masses and soft soil. Before removing the ground, we install the pipes, which are then grouted, creating a rigid canopy. This process effectively prevents potential localized collapses at the tunnel face, ensuring a safer work environment for the crew and equipment.
- Controlling Ground Deformation We apply the umbrella pipe technique to limit excessive ground deformation and settlement that can occur during and after excavation, protecting the tunnel structure. The pre-support canopy minimizes the movement of the surrounding rock or soil, thereby reducing stress on the final tunnel lining and the ground surface above. We ensure our components contribute to strict deformation control.
Enhancing Tunneling Advance
- Reducing Water Inflow We utilize the grouted umbrella pipes to significantly reduce water inflow into the tunnel excavation area from surrounding saturated ground. The injected grout seals fissures and voids within the rock mass, acting as a cutoff barrier. This greatly improves working conditions and reduces the costly and time-consuming efforts associated with water management during construction.
- Facilitating Full-Face Excavation We enable the use of more efficient full-face excavation methods, such as Tunnel Boring Machines (TBMs) or sequential excavation, in conditions where conventional methods would be too risky. By providing pre-support, the umbrella pipe system creates a stable crown for continuous advance. We supply the reliable pipes that permit faster, more predictable tunneling progress.

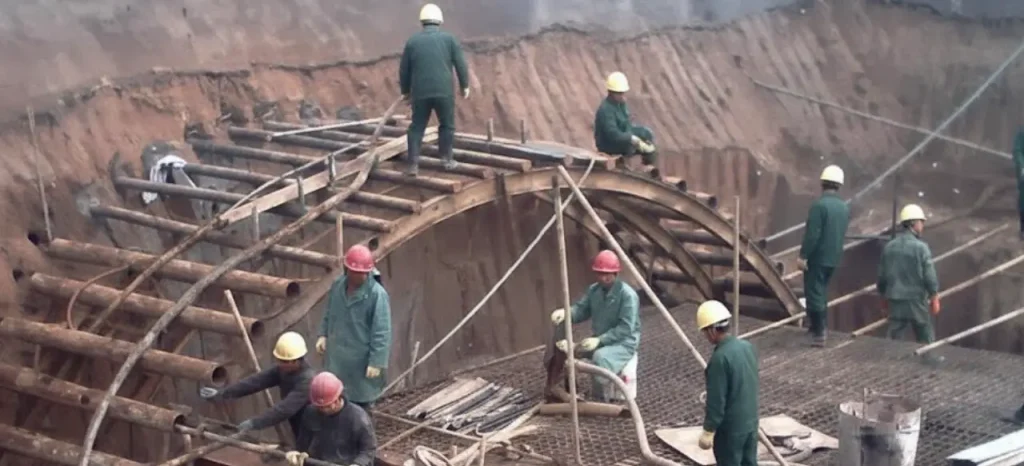

Pipe Umbrella System Construction Procedure
The umbrella pipe system construction procedure is a precise, multi-stage process we follow to install ground pre-support in tunneling. This method ensures structural integrity ahead of excavation by creating a reinforced canopy. Successful execution requires careful attention to detail during drilling, pipe insertion, and the crucial grouting stage. We adhere to strict standards to maximize the effectiveness and safety of this temporary support measure.
We utilize specialized drilling techniques and robust components to achieve the necessary accuracy and penetration depth for the umbrella arch. The proper placement and subsequent grouting of the steel pipes create a load-bearing arch that minimizes ground deformation. We manage this process to ensure predictable and safe advance in challenging geological conditions.
Tools Needed
- Drilling Rig (e.g., face drilling jumbo or specialized equipment)
- Casing/Drill Tubes (our umbrella pipes)
- Drill Bits and Ring Bit Assemblies
- Grouting Pump and Mixer
- Grout Material (cement-based mixture)
Step 1: Precision Drilling of Boreholes
We begin the procedure by accurately drilling a series of long boreholes in an arch pattern around the perimeter of the tunnel crown, just ahead of the face. The precision drilling angle and length are critical, as they determine the final shape and coverage of the protective umbrella canopy. We use specialized drilling rigs and guiding systems to ensure exact trajectory.
The borehole diameters must be slightly larger than the outside diameter of the umbrella pipes to allow for easy insertion and subsequent grouting. We manage drilling to minimize disturbance to the surrounding rock mass. This initial step establishes the framework that will provide essential pre-support before the main excavation begins.
Step 2: Umbrella Pipe Insertion
Following the completion of drilling, we push or install the steel casing/drill tubes into the boreholes to form the umbrella structure. We ensure that each pipe is fully inserted to the designed depth, creating a continuous, overlapping arch above the planned excavation line. This step transforms the open boreholes into defined channels for the next stage.
We pay close attention during the pipe insertion to prevent any damage to the pipes or unintended deviation from the planned trajectory. The robust design of our pipes facilitates smooth installation, even in fractured ground. Proper pipe positioning is essential for achieving the required structural support over the tunnel crown.
Step 3: Grout Connection and Setup
Before the main grouting begins, we establish a secure connection between the grouting equipment (pump and hose) and the end of the newly inserted umbrella pipe. This connection must be pressure-tight to handle the high injection forces required to effectively permeate the ground. We ensure all connections are leak-free and correctly secured.
We also use this step to prepare the grout mixture itself, carefully controlling the water-to-cement ratio and additives to achieve the desired flowability and final strength. The proper setup and mix preparation are crucial for the subsequent successful and efficient ground consolidation needed for safety.
Step 4: High-Pressure Grouting
The crucial step is high-pressure grouting, where we inject the prepared cement-based grout mixture through the pipes’ inner core and out through the pre-drilled grouting holes. This grout permeates the surrounding rock and soil mass, filling voids and fissures, and effectively binding the pipes to the ground. This action creates a reinforced, load-bearing arch.
The grout is pumped until the target pressure is maintained for a specific time or until the desired volume is injected, ensuring maximum coverage. We carefully monitor the pressure to avoid excessive heave while achieving thorough consolidation and stabilization of the weak ground.
Step 5: Curing and Excavation
After the completion of the grout injection, the umbrella pipe system requires a curing period during which the grout hardens and reaches its specified strength. We monitor this time carefully to ensure the newly formed canopy is robust enough to bear the ground load effectively. The duration depends on the grout type and site conditions.
Once the grout has cured, the excavation of the tunnel face can safely resume under the protection of the stabilized umbrella arch. We provide pipes that allow the crew to proceed with the next tunnel advance segment safely and efficiently, knowing the ground above is fully supported.
Technological Process of Pipe Umbrella Support System
The technological process of the pipe umbrella support system involves a precise sequence of steps we execute to stabilize the tunnel crown before excavation. This method relies on accurate drilling and effective grouting to form a reinforced arch. We manage this process to ensure the structural integrity of the surrounding ground, which is especially critical in weak or unstable geological formations, promoting safe and continuous tunnel advance.
We have refined this procedure to maximize both safety and efficiency, ensuring minimal disruption to the tunneling schedule. By following a structured process, we can control ground movement and reduce the risks associated with excavation under challenging conditions. The correct execution of each stage is vital for a successful, stable umbrella arch.
- Borehole Planning and Setting-out We start by meticulously planning the location, length, and angle of each borehole based on the tunnel design and geological data. Setting-out marks the precise entry points on the tunnel face for the drilling rig. We ensure this initial step has high accuracy, as it determines the final position and overlap of the entire umbrella canopy structure.
- Drilling and Casing Insertion We utilize specialized drilling rigs, often employing a system like the Tube-A-Manchette (TAM) or sacrificial bits, to drill the boreholes. Immediately after drilling, or simultaneously, we push the steel casing/drill tubes into the boreholes. We ensure smooth and complete insertion to create the continuous arch framework for ground support.
- Grout Preparation and Connection We prepare the specialized, cement-based grout mixture, carefully adjusting its viscosity and setting time to match the ground conditions. Simultaneously, we establish a secure, high-pressure connection between the grouting pump and the inserted umbrella pipes. We check this setup rigorously to prevent any pressure loss or leaks during the injection phase.
- High-Pressure Grout Injection We inject the prepared grout into the pipes under high pressure, forcing it out through the grouting holes and into the surrounding soil or rock fissures. This pressure ensures deep penetration and thorough saturation. We carefully monitor the pressure to achieve effective ground consolidation without causing unintended uplift or heave of the rock mass.
- Curing and Tunnel Excavation After the injection is complete, we allow a specific curing period for the grout to harden and achieve the required compressive strength. This waiting time is essential before any further excavation begins. Once cured, the stable, load-bearing umbrella arch permits the safe and efficient advance of the tunnel face.
How to Choose Umbrella Pipes?
Choosing the correct umbrella pipes is essential for ensuring the safety and long-term success of your tunneling project. We guide you through the selection process, focusing on key factors such as geology, pipe dimensions, and material specifications. We understand that the right pipe configuration directly impacts the stability and effectiveness of the pre-support canopy during excavation in weak or unstable ground conditions.
We advise selecting pipes that can withstand the specific stresses of your project’s geological environment and drilling method. Considering factors like rock hardness, expected ground movement, and water pressure is critical. Our selection process focuses on providing durable, custom-engineered solutions that integrate seamlessly with your drilling equipment and grouting procedures for optimal performance.
- Geological Conditions and Rock Type We first analyze the geological conditions, including the strength, fracture density, and abrasiveness of the rock or soil you will encounter. For hard, abrasive rock, we recommend pipes with superior wall thickness and material hardness to resist wear during drilling. For soft ground, the focus shifts to pipe strength to better resist ground squeezing pressures.
- Pipe Diameter and Overlap We determine the appropriate pipe diameter based on the required coverage and the necessary volume for grout injection. A larger diameter provides greater stiffness and a larger grouting area. The chosen diameter dictates the required overlap between adjacent pipes, ensuring the formation of a continuous, sealed, and structurally sound support arch above the tunnel crown.
- Material Grade and Strength We specify the material grade (e.g., various steel alloys) to meet the required yield and tensile strength, guaranteeing the pipe can handle drilling forces and ground loads without failure. We also consider the pipe’s ductility and its resistance to corrosion, ensuring its integrity throughout the construction phase. We offer materials optimized for longevity and performance.
- Drilling Method Compatibility We must confirm the pipes’ compatibility with your chosen drilling method—such as drilling with sacrificial bits or the Tube-A-Manchette (TAM) system. This involves matching pipe thread type, tolerance, and internal bore size. Selecting compatible pipes ensures fast, reliable installation and smooth operation, minimizing downtime caused by equipment or component mismatch.
- Grouting Hole Design We examine the grouting hole design, including the number, size, and spacing of the holes along the pipe, as this affects grout coverage and distribution. For fractured rock, more holes may be needed; for soft soil, hole design may focus on pressure control. We provide pipes with optimal hole configurations for effective ground consolidation.
Conclusion
The successful implementation of the pipe umbrella system construction procedure is paramount for safe and efficient tunneling operations. By meticulously performing the steps—drilling, pipe insertion, and grout injection—we create a dependable, load-bearing canopy. This proven technique effectively mitigates ground risks, controls deformation, and significantly speeds up overall project completion while maintaining the highest safety standards.
We are committed to supplying you with the highest standards of tunneling tools. To ensure the reliability and success of your next project, we invite you to get wholesale umbrella pipes from Sinodrills. We manufacture durable, precision-engineered casing/drill tubes and complete system components that perfectly match your project’s geological and technical requirements.
Partner with us to secure the essential foundation for your underground construction success. Get wholesale umbrella pipes from Sinodrills for cost-effective and dependable solutions. We provide a full range of drilling consumables and support equipment, ensuring you have the robust tools needed to execute the umbrella pipe procedure flawlessly and confidently.
