Drill rods are fundamental tools in numerous industries, but their diverse applications necessitate a range of specialized types. Understanding the distinctions between these rods is crucial for optimizing performance and ensuring success in various drilling operations.

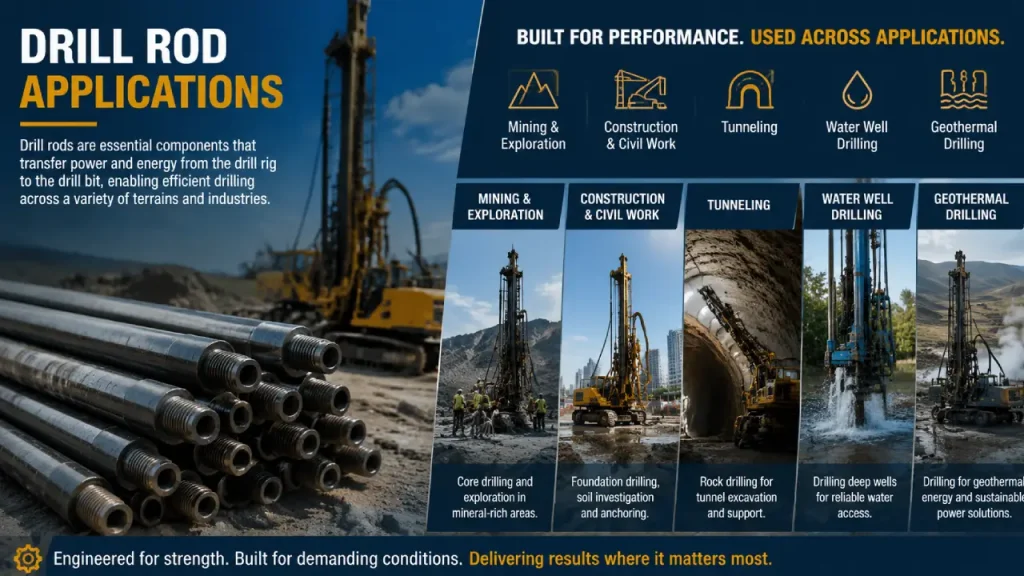

This guide will delve into the different categories of drill rods, highlighting their unique characteristics and intended uses. From water well drilling to mining and directional boring, we’ll explore how each type is engineered for specific challenges and environments.

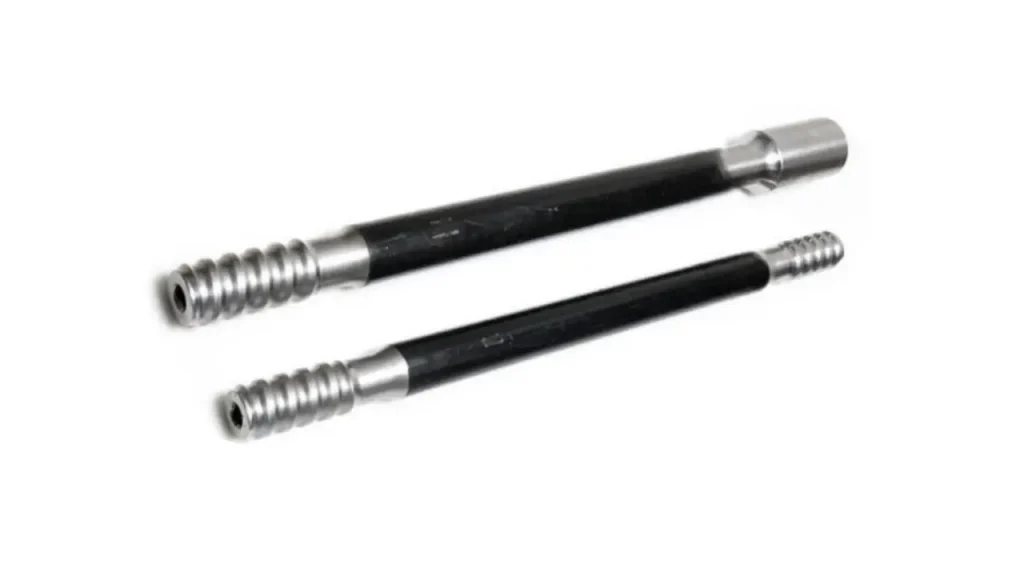

What are Drill Rods?

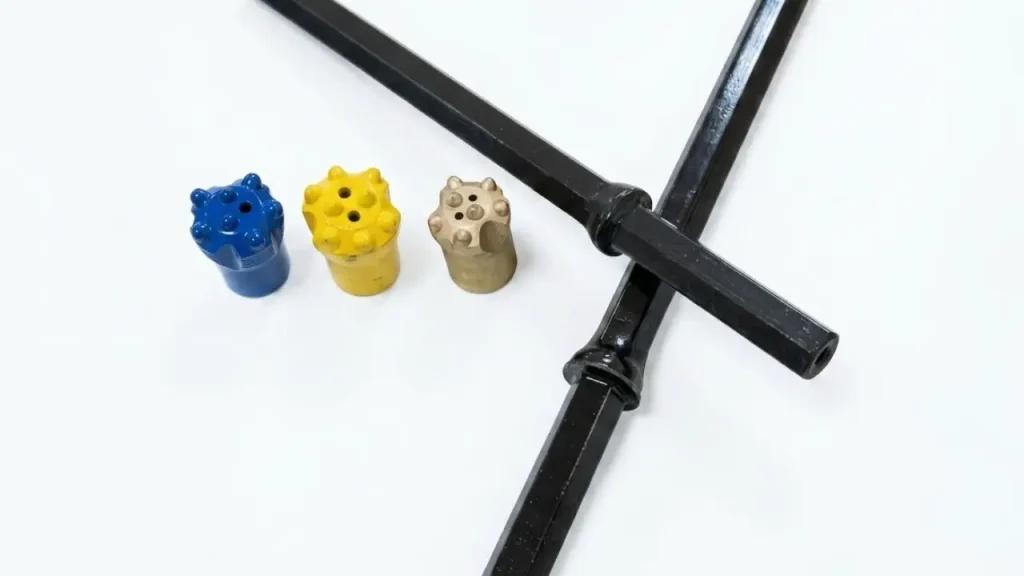

Recommended Drill Rods
Drill rods are precision-engineered metal bars, typically made from high-quality alloy steels, designed for demanding industrial applications. While used in drilling, their precise dimensions and robust material properties also make them ideal for crafting various tools, machine components, and specialized parts requiring high strength, hardness, and wear resistance.

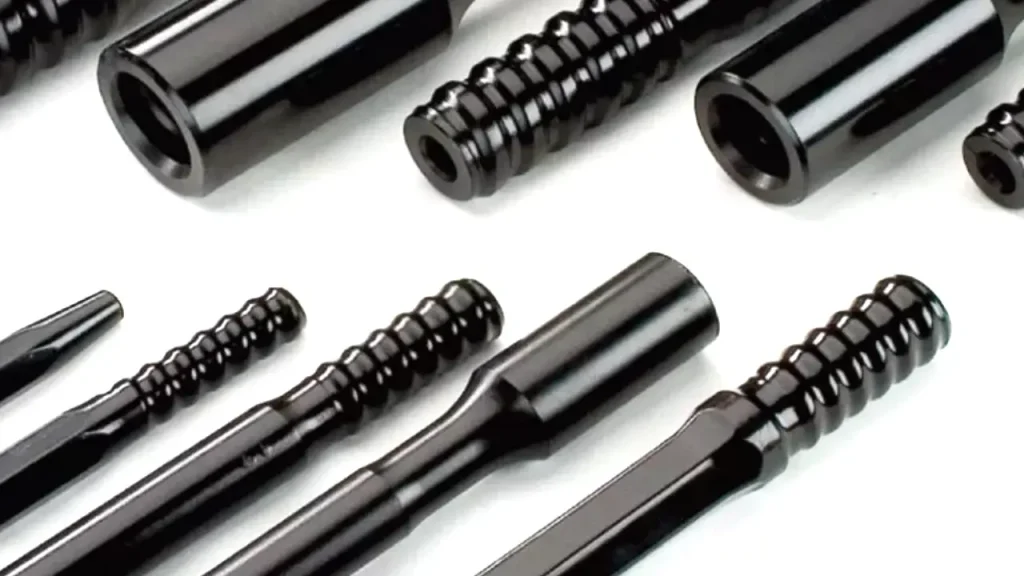

Types of Drill Rods
Drill rods come in various specialized types, each engineered for specific applications and geological conditions. Understanding these distinctions is crucial for selecting the appropriate rod to ensure efficiency, safety, and optimal performance in any drilling project.

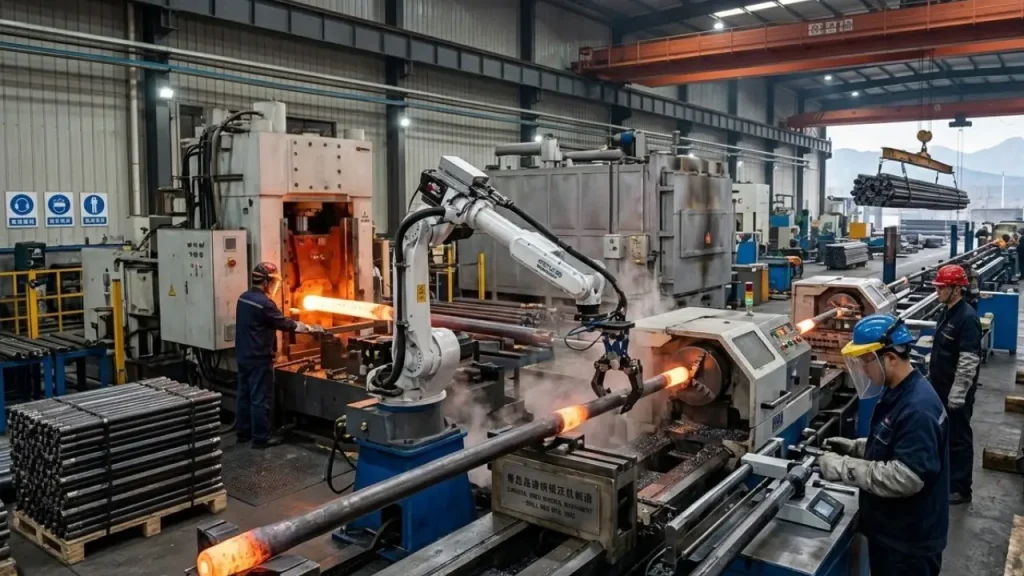

Types of Drill Rods According to the Manufacturing Process

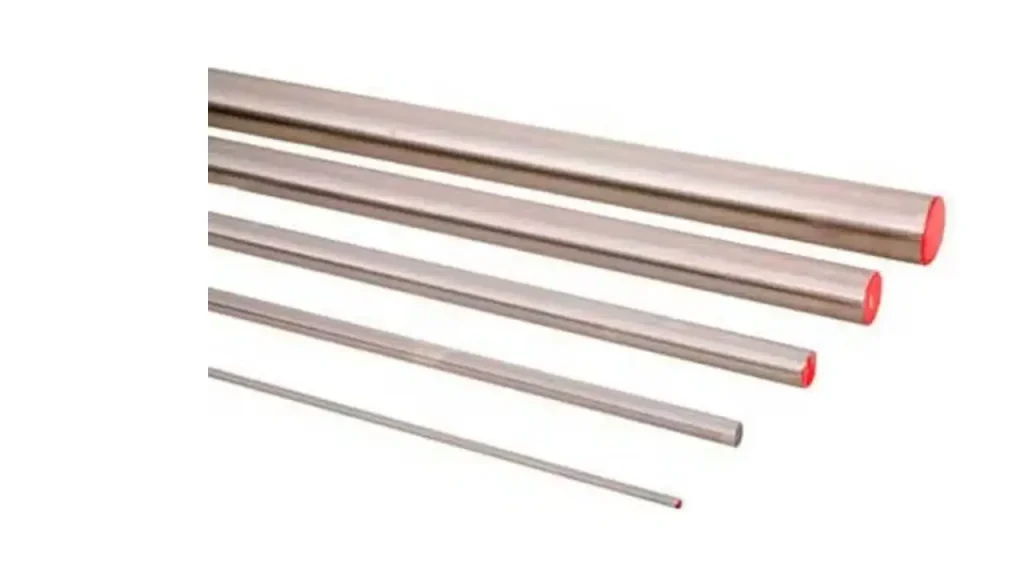

Air-Hardening Drill Rod
Air-hardening drill rods are crafted from alloy tool steels that achieve their optimal hardness by cooling in still air after being heated. This slower cooling method significantly reduces internal stresses and minimizes distortion and cracking, ensuring the finished rod maintains excellent dimensional stability. They are known for their superior wear resistance and good toughness, making them a reliable choice for precision tasks.
These rods are primarily utilized in applications demanding high accuracy and minimal post-heat treatment deformation. Common uses include the fabrication of precision gauges, intricate dies, and long, slender punches where maintaining exact dimensions and straightness is critical. Their stability makes them ideal for tools requiring long-term structural integrity.

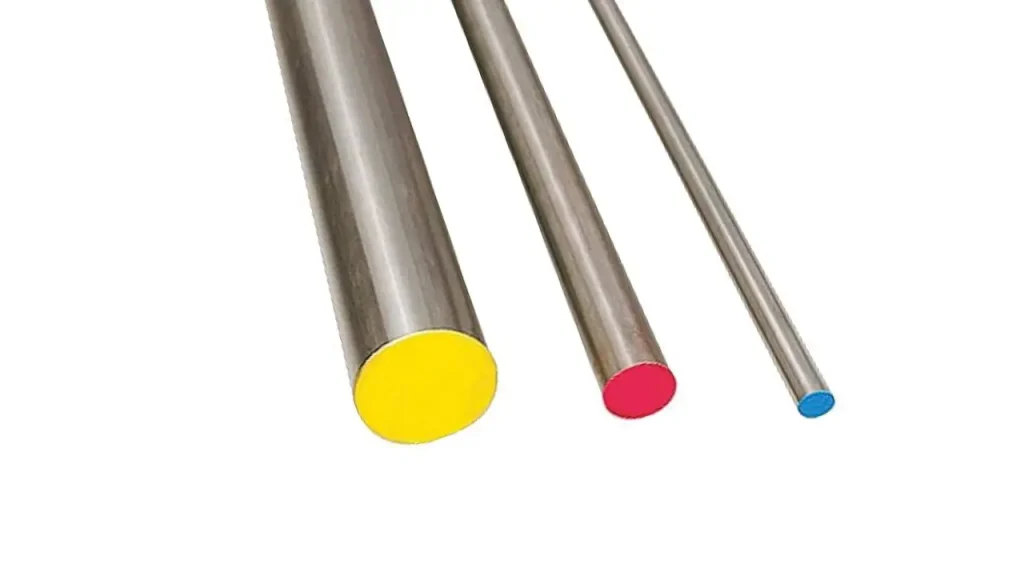

Oil-Hardening Drill Rod
Oil-hardening drill rods are manufactured from tool steels that are quenched in oil following a heating process. The oil bath provides a moderate cooling rate, which allows these rods to achieve a good balance of high hardness and adequate toughness, with less distortion compared to water-hardened steels. They offer a strong combination of wear resistance and resilience.
These versatile rods are widely employed for general-purpose toolmaking across various industries. Their applications include creating cutting tools, knife blades, and medium-sized punches and dies. The ease of machining and good weldability of oil-hardening steels also make them a popular choice for custom tooling and repair work where a blend of properties is essential.

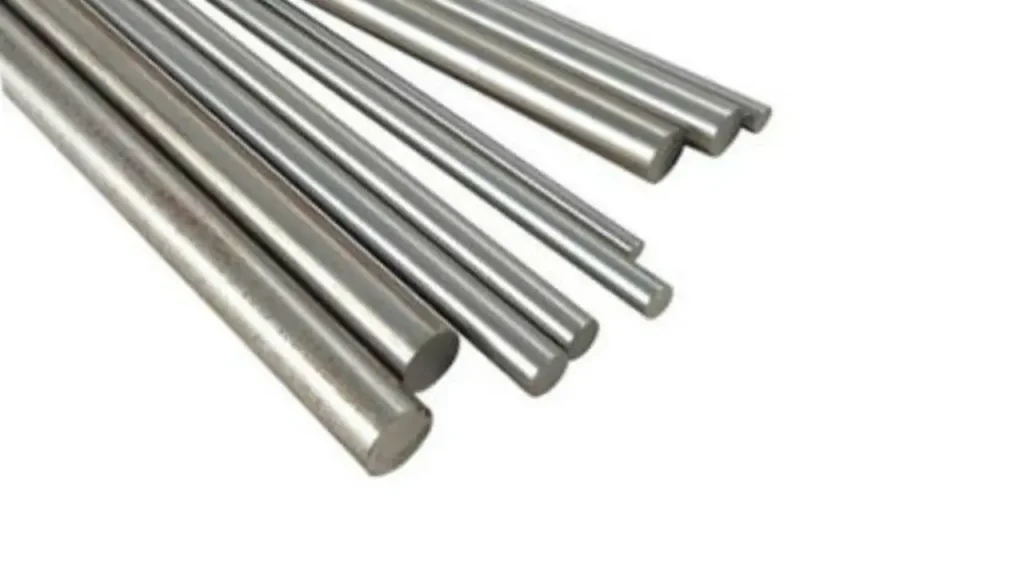

Water-Hardening Drill Rod
Water-hardening drill rods are made from plain carbon tool steels, which are rapidly quenched in water after being heated to achieve maximum surface hardness. This rapid cooling creates a very hard outer layer, making them extremely resistant to abrasion. However, this method can induce significant internal stresses, increasing the risk of distortion and cracking.
These rods are best suited for applications where extreme surface hardness is paramount and where the potential for distortion can be tolerated or mitigated. Typical uses include the production of hand tools like hammers, files, and chisels, as well as components requiring a very hard cutting edge, such as certain razor blades.
Types of Drill Rods According to Different Threads
Ordinary Drill Rod Drill Rod

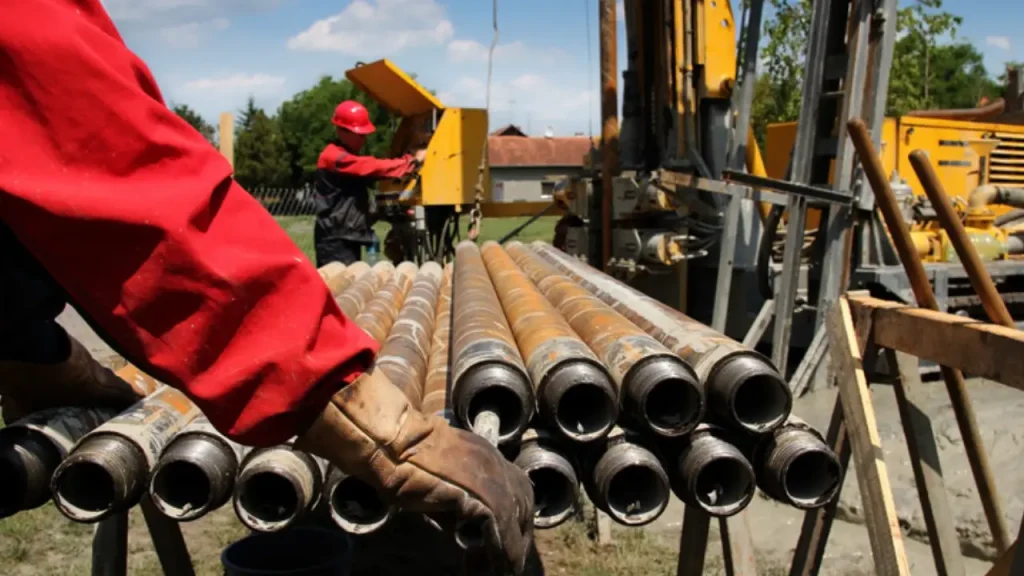

The ordinary drill rod, often referred to as standard drill pipe, consists of cylindrical steel tubes fitted with precisely machined threaded connections at both ends. These threads are designed to transmit rotational torque and axial forces efficiently from the drilling rig at the surface down to the drill bit, forming the primary part of the drill string. They are manufactured to standardized lengths and diameters.
These ubiquitous rods are the backbone of most conventional drilling operations in diverse fields, including oil and gas exploration, geotechnical surveying, and water well construction. Their fundamental role is to provide a continuous conduit for transferring power and drilling fluids, enabling the effective penetration and excavation of rock and soil formations.
The Square Kelly Drill Rod
A square kelly is a robust, heavy steel pipe characterized by its distinctive square cross-section. It is designed to slide through a similarly shaped opening in the rotary table on a drilling rig. This unique design allows the rotary table to impart rotational torque directly to the kelly, and subsequently to the entire drill string, while simultaneously permitting vertical movement.
The square kelly serves as a crucial component in rotary drilling systems, especially in older or smaller drilling rigs. It is responsible for transmitting the rotational power from the rig’s surface equipment to the downhole drilling assembly, facilitating both the cutting action of the drill bit and the controlled vertical advancement or retraction of the drill string.
Heavy Weight Drill Pipe
Heavy Weight Drill Pipe (HWDP) is an intermediate component within a drill string, distinguished by its thicker wall and greater weight compared to standard drill pipe, yet it remains more flexible than rigid drill collars. It often features specialized wear bands and upset ends (thicker sections) near the threaded connections to enhance durability and prolong service life.
HWDP is strategically placed in the drill string to provide additional weight on the bit, improve drill string stability, and prevent buckling, particularly in challenging deviated or horizontal wells. It acts as a critical transition element, buffering the stiffness difference between drill collars and standard drill pipe, thereby enhancing drilling efficiency and reducing fatigue on the overall drilling assembly.
| Category | Type | Key Features | Primary Uses |
| According to the Manufacturing Process | Air-Hardening | Achieves hardness by cooling in air, minimizing distortion and cracking. Offers excellent dimensional stability, wear resistance, and toughness. | Ideal for precision tools like gauges, intricate dies, and long punches where maintaining exact shapes and straightness after heat treatment is crucial. |
| Oil-Hardening | Quenched in oil for moderate cooling, balancing good hardness with less distortion than water-hardening. Provides a good combination of hardness, toughness, and wear resistance. Generally good machinability and weldability. | Widely used for general-purpose toolmaking, including cutting tools, knife blades, and medium-sized punches and dies. Suitable for applications needing a balance of properties. | |
| Water-Hardening | Rapidly quenched in water for maximum surface hardness. Achieves extreme abrasion resistance but carries a higher risk of distortion and cracking due to rapid temperature change. | Best for applications requiring extreme surface hardness where distortion can be tolerated or managed, such as hammers, files, chisels, and certain razor blades. Not ideal for complex shapes. | |
| According to Different Threads | Ordinary Drill Rod | Long, tubular steel sections with standardized threaded connections at both ends. Designed to transmit rotational torque and axial load. Forms the majority of the drill string in conventional operations. | Primary component of the drill string in oil and gas, geotechnical, and water well drilling. Connects surface equipment to downhole tools, enabling drilling fluid circulation and power transfer to the drill bit. |
| Square Kelly | Heavy, square-shaped steel pipe designed to fit and slide through a rotary table. Its square cross-section allows direct transfer of torque from the rotary table to the drill string. | Fundamental in rotary drilling systems (especially older/smaller rigs) to provide rotational motion to the drill string and allow vertical movement during drilling and tripping operations. Robust for high torque transmission. | |
| Heavy Weight Drill Pipe | Thicker-walled and heavier than ordinary drill pipe, but lighter than drill collars. Often features upset ends and wear bands. Provides increased stiffness and weight, reducing buckling and improving stability. | Used as an intermediate component in the drill string to provide weight on the bit, help control well trajectory, and act as a transition between flexible drill pipe and stiff drill collars. Especially useful in deviated or horizontal wells to prevent buckling and improve hole quality. |
How to Choose Suitable Drill Rods
Choosing a suitable drill rod is crucial for ensuring efficient, safe, and cost-effective drilling operations. The selection process depends heavily on the specific application, the geological conditions you’ll encounter, and the type of equipment being used. Mismatching a drill rod to the task can lead to premature wear, breakage, reduced drilling speed, and increased operational costs.
Key factors to consider when making your selection include:
- Drilling Method: Different methods (e.g., rotary, percussive, directional) require specific rod designs.
- Ground Conditions: The type of rock or soil (e.g., soft, abrasive, hard, fractured) dictates the required hardness and wear resistance.
- Hole Depth and Diameter: Deeper and larger holes may require stronger, larger-diameter rods to handle increased torque and weight.
- Drilling Rig Capabilities: Ensure the rod’s size and weight are compatible with your rig’s power and handling capacity.
- Required Precision: For very precise applications, rods with minimal runout and high dimensional stability are essential.
Understanding the material composition and heat treatment of the drill rod is vital. For instance, air-hardening rods are excellent for precision where distortion must be minimized, while oil-hardening rods offer a good balance for general-purpose tooling.
For extremely abrasive conditions, a higher hardness (e.g., from water-hardening, if risks are manageable) might be preferred, or specialized wear-resistant alloys could be considered. Always consult manufacturer specifications and industry standards to ensure the chosen drill rod meets the performance requirements for your specific project.
Conclusion
Understanding the distinct characteristics and applications of various drill rod types is essential for successful drilling operations. Each rod—whether for water wells, mining, exploration, or directional drilling—is specialized to meet unique geological and operational demands.
Choosing the correct drill rod not only optimizes performance and efficiency but also significantly enhances safety and extends the lifespan of your equipment. Matching the rod to the specific task ensures precision and cost-effectiveness in any drilling project.
