Split set bolts are essential tools in ground reinforcement, widely used in mining, tunneling, and slope stabilization. Their hollow, expandable design allows them to grip surrounding rock or soil, providing immediate and long-term support. Understanding their features, applications, and benefits is key to maximizing safety and structural stability.
These bolts simplify installation, reduce labor, and adapt to varying geological conditions. By combining durability, ease of use, and reliable load transfer, split set bolts improve operational efficiency while preventing rock movement and collapse. This ultimate guide explains everything you need to know about their function, applications, and advantages in construction and mining projects.
What are Split Set Bolts?
Split set bolts are specialized steel rods used for ground reinforcement in mining, tunneling, and slope stabilization projects. Their hollow, expandable design allows them to anchor tightly into surrounding rock or soil, providing immediate support and reducing the risk of collapses or rock falls. They are simple to install and highly adaptable to varying geological conditions.
These bolts work by transferring loads from unstable surfaces to more stable ground, improving overall structural stability. Combined with shotcrete or other support systems, split set bolts enhance long-term safety and performance. Their durability, ease of use, and effective load-bearing capacity make them a critical component in modern underground and surface construction projects.
Common Types of Rock Split Set Bolts
Split set bolts come in a few different variants, each suited for particular ground conditions and installation needs. Here are some common types — with a bit more detail about how they differ and where they shine.

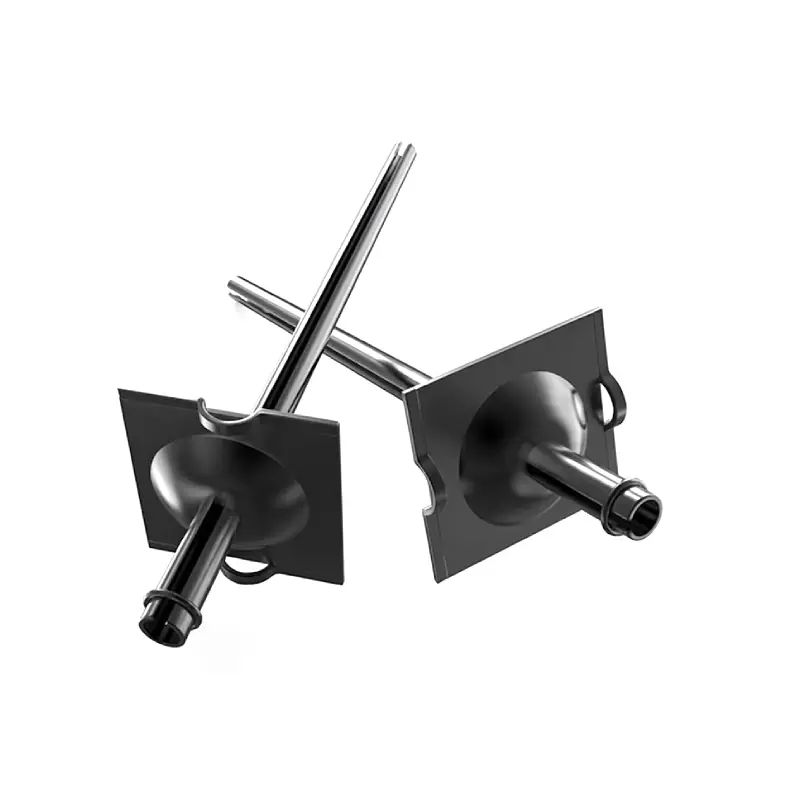

Friction (Split Set) Bolts

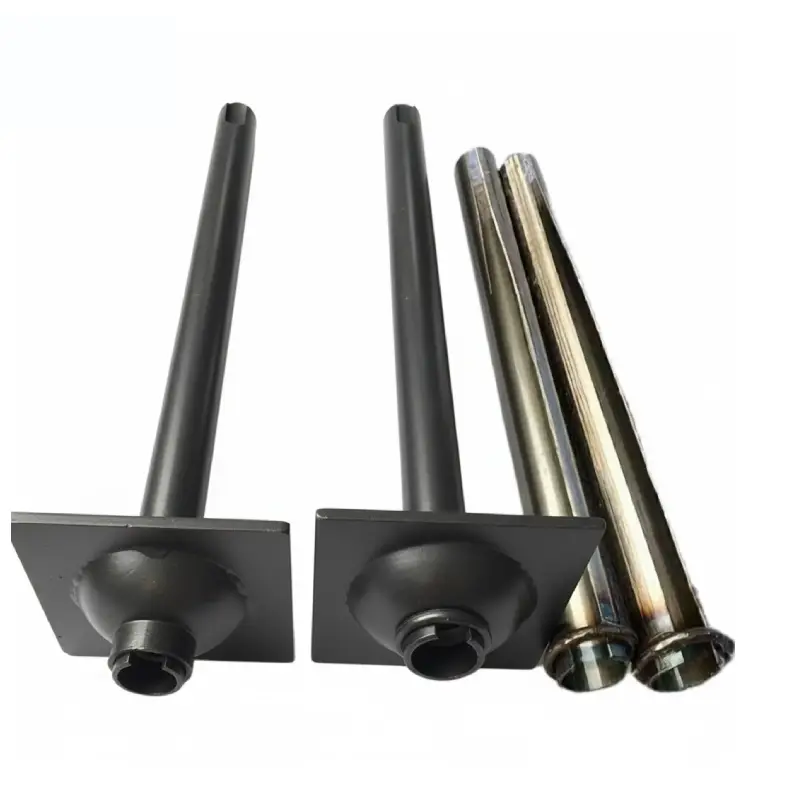

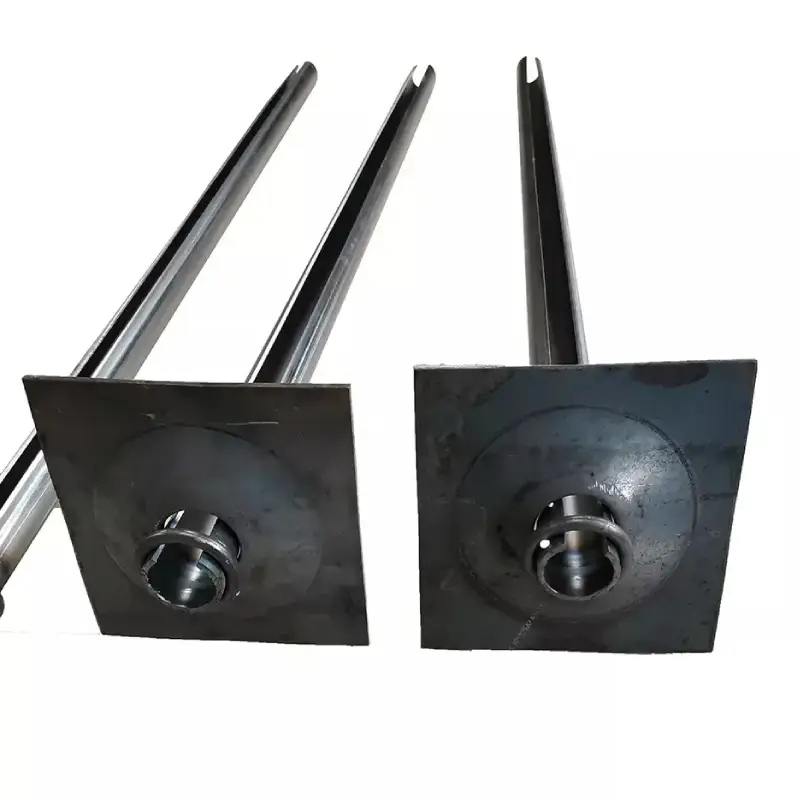

This is the classic split set design: a slotted steel tube plus a domed bearing plate. As the tube is driven into a slightly undersized hole, the slot closes and the tube presses radially against the rock, creating frictional anchorage over its full length.
Friction bolts are quick to install, require no grout or resin, and provide immediate rock‑mass support. They perform especially well in underground mining or tunneling when rapid installation and reliable, consistent pressure against rock are needed.
Galvanized Split Set Bolts
These are split‑set bolts treated with corrosion‑resistant coatings — typically hot‑dip galvanizing — to protect against rust and environmental degradation. The basic friction bolt design remains the same, but corrosion protection extends service life in harsh or moist conditions.
Galvanized bolts are ideal when rock anchors will remain in place long-term, exposed to groundwater, humidity, or corrosive soils. The coating helps maintain the bolt’s mechanical properties and ensures stability even after years underground.
Different Diameter / Strength‑Graded Bolts (e.g. 33 mm, 39 mm, 47 mm)
Split set bolts come in various diameters and wall‑thickness grades — common ones include 33 mm, 39 mm, and 47 mm variants. Larger or thicker bolts offer higher load-bearing capacity and better performance under heavy loads or unstable rock.
Choosing the right size depends on ground conditions and load requirements. For lighter roofs or softer rock, smaller bolts may suffice; for heavy loads, fractured rock, or long-term support, the larger, stronger bolts are a safer bet.
Resin‑ or Grout‑Anchored Split Bolts (Hybrid Systems)
Although classic split set bolts rely on friction, in some cases bolts may be combined with resin or grout for enhanced bonding — especially where rock fissures are irregular or in fractured rock mass where friction alone may not hold.
These hybrid bolts can deliver stronger anchorage by filling voids and increasing contact area with rock mass. They are preferable for long-term, critical support zones, or in geologies where simple friction bolts might risk slippage or insufficient anchorage.
Where to Use Split Set Bolts?
Split set bolts are versatile reinforcement tools designed to stabilize rock and soil in a variety of underground and surface applications. They provide immediate support, prevent rock falls, and maintain long-term structural stability. Their adaptability and ease of installation make them ideal for mining, tunneling, excavation, and slope stabilization projects.
- Underground mining — Split set bolts are widely used in mine tunnels and stopes to secure loose rock, prevent collapses, and maintain safe working conditions. They distribute stress along the bolt and stabilize fractured or weak rock efficiently, enhancing overall mine safety.
- Tunneling projects — These bolts reinforce tunnel walls and ceilings in metro, roadway, and railway tunnels. By gripping surrounding rock, they reduce the risk of collapse, allow faster construction, and work effectively with shotcrete linings for immediate structural support.
- Slope stabilization — Applied on open-pit mines, embankments, or unstable slopes, split set bolts prevent landslides and rock falls. They anchor loose rock layers to more stable ground, transferring loads safely and improving long-term slope stability.
- Excavations and foundation support — In deep foundation pits or retaining walls, split set bolts maintain wall stability and protect workers and equipment. They prevent soil or rock movement, enabling safer and more efficient construction in challenging environments.
- Hydropower and dam projects — Used to reinforce dam foundations and rock faces, split set bolts ensure structural stability under heavy water pressure and soil loads. They integrate with other structural supports to maintain long-term reliability and safety.
- Shotcrete integration — Split set bolts work in tandem with sprayed concrete linings to form composite support systems. They hold rock in place while shotcrete provides additional rigidity, creating immediate and durable reinforcement for tunnels, excavations, and slopes.
Conclusion
Split set bolts play a critical role in maintaining safe and stable underground and surface structures. Their design provides full-length anchoring, effective load transfer, and rapid installation, making them ideal for mining tunnels, slope stabilization, and excavation support. Understanding their use ensures better safety and long-term performance.
Proper selection, installation, and maintenance of split set bolts significantly enhance structural integrity. Factors like bolt diameter, material quality, grouting, and environmental conditions influence performance. Choosing the right specifications and following best practices helps prevent rock movement and ensures reliable ground reinforcement for demanding projects.
For projects requiring bulk supplies, you can get wholesale self drilling anchor bolts from our Sinodrills. Our high-quality bolts meet diverse engineering needs, offering customizable options, durable steel construction, and reliable performance. Partnering with Sinodrills ensures efficient installation, safety, and long-term stability for mining, tunneling, and infrastructure applications worldwide.
