Drill rods are essential tools in various industries, from manufacturing to mining, yet many remain unfamiliar with their specific functions and importance. Often mistaken for ordinary metal rods, drill rods are precision-engineered to withstand extreme conditions and deliver high performance in drilling operations.
This ultimate guide will demystify drill rods, explaining what they are, their different types, and their diverse applications. Whether you’re a professional in the field or a curious enthusiast, prepare to gain a comprehensive understanding of these crucial components.
What is a Drill Rod?
Recommended Drill Rods

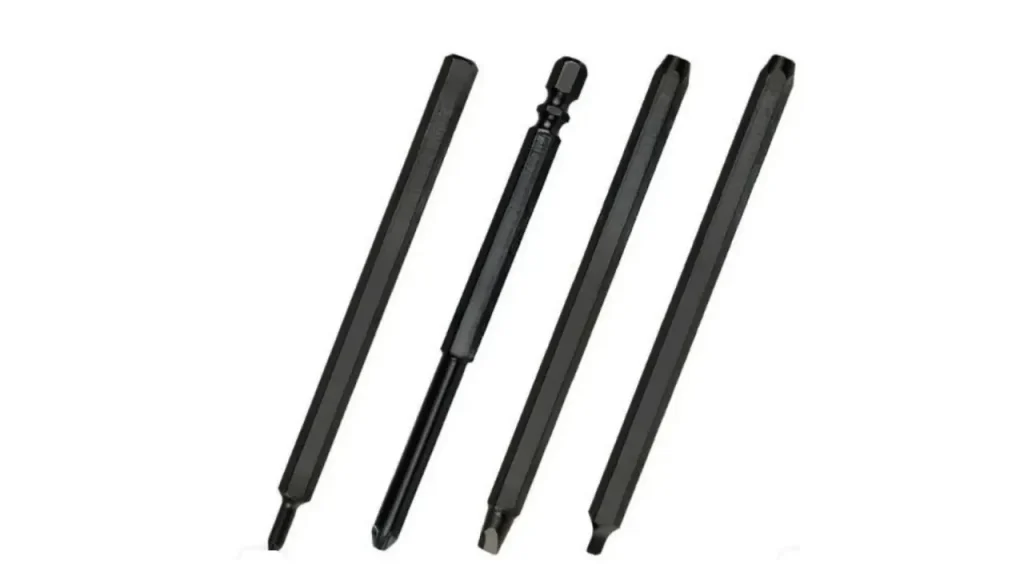

A drill rod is a highly precise, often ground and polished, metal bar typically made from premium tool steel. While the name suggests sole use in drilling, these rods are versatile and utilized in various applications beyond just driving drill bits.
They are known for their tight tolerances, resistance to wear, and ability to maintain structural integrity under demanding conditions, making them essential in industries such as manufacturing, mining, and toolmaking for creating precision components, punches, dies, and a wide array of tools.
What is Drill Rod Made of?
Drill rods are primarily made from high-quality alloy steels, specifically chosen for their superior strength, hardness, and wear resistance. The exact composition varies depending on the intended application and the manufacturer’s specifications, but common materials include:
- High Carbon Steel: Offers good hardness and wear resistance.
- Alloy Steels (e.g., AISI 4140, 4340): These are heat-treatable steels that provide excellent toughness, strength, and fatigue resistance after proper heat treatment.
- Tool Steels (e.g., O1, A2, D2): Known for their exceptional hardness, abrasion resistance, and ability to hold a sharp edge, making them suitable for precision applications.
What is a Drill Rod Used for?

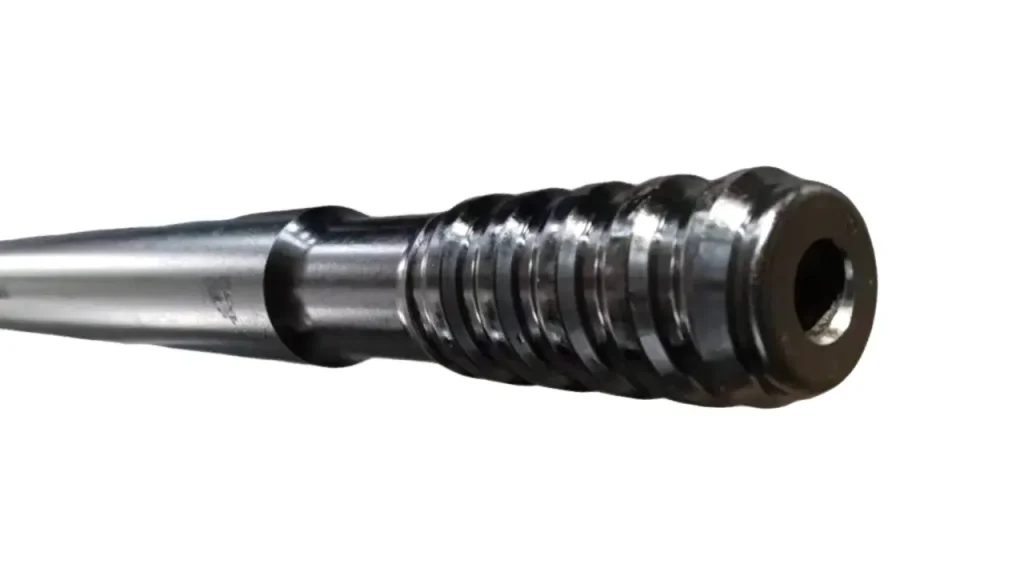

Drill rods, while sharing a name with drilling, are remarkably versatile and find extensive use beyond simply boring holes. Their precision-ground surfaces, tight tolerances, and durable material composition make them ideal for creating accurate and robust components in a wide array of industries. They are frequently employed in manufacturing for tasks requiring exact dimensions and resistance to wear, serving as critical elements in tooling and machinery.
Beyond general manufacturing, drill rods are indispensable in specific applications due to their high strength and ability to withstand significant stress. They are often used to produce:
- Punches and Dies: Their hardness and precise dimensions are perfect for creating tooling used in stamping, forming, and cutting operations.
- Arbors and Mandrels: Used as central shafts to hold workpieces or tools in lathes, grinders, and other machining equipment, requiring high concentricity.
- Shafts and Pins: Employed in various mechanical assemblies where strength, straightness, and wear resistance are paramount.
- Gauges and Measuring Tools: Their dimensional accuracy makes them suitable for crafting precision instruments used for calibration and quality control.
- Cutting Tools: In some cases, they can be ground into specialized cutting tools where extreme hardness and durability are needed.
How Hard is Drill Rod?

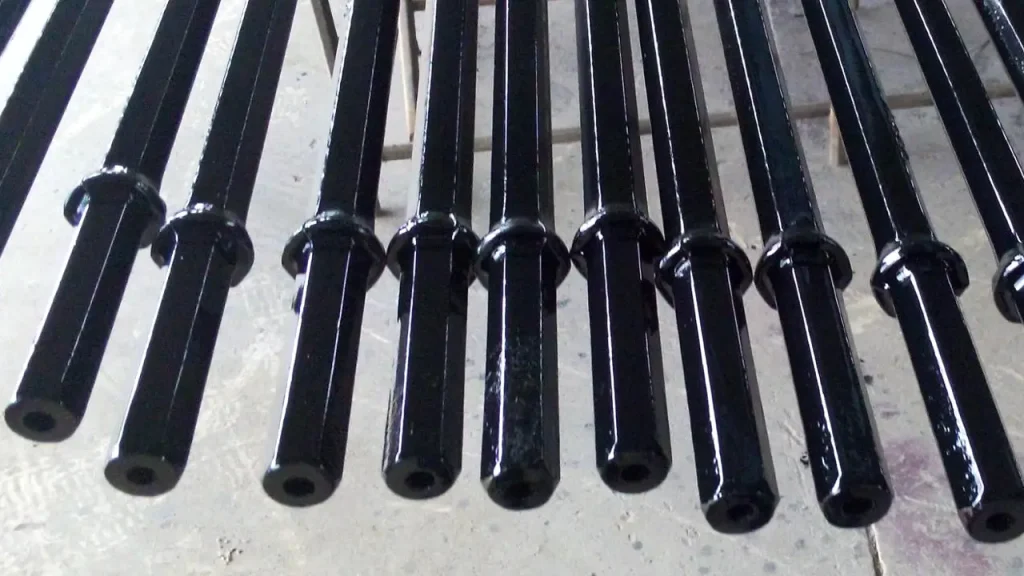

The hardness of a drill rod is a critical property, directly impacting its wear resistance, strength, and overall durability. It’s not a single fixed value but rather varies depending on the specific alloy steel used and the heat treatment processes applied during manufacturing. Generally, drill rods are designed to be significantly harder than the materials they are intended to drill or work with, ensuring they can withstand abrasive forces and high-stress conditions.
- Rockwell Hardness Scale: Hardness is typically measured on the Rockwell C scale (HRC) for steels.
- Typical Range: Drill rods often fall within a range of 45 to 65 HRC, depending on the steel grade and intended application.
- Factors Influencing Hardness: This includes the carbon content of the steel, the presence of alloying elements like chromium or molybdenum, and the specific quenching and tempering parameters during heat treatment.
Types of Drill Rods

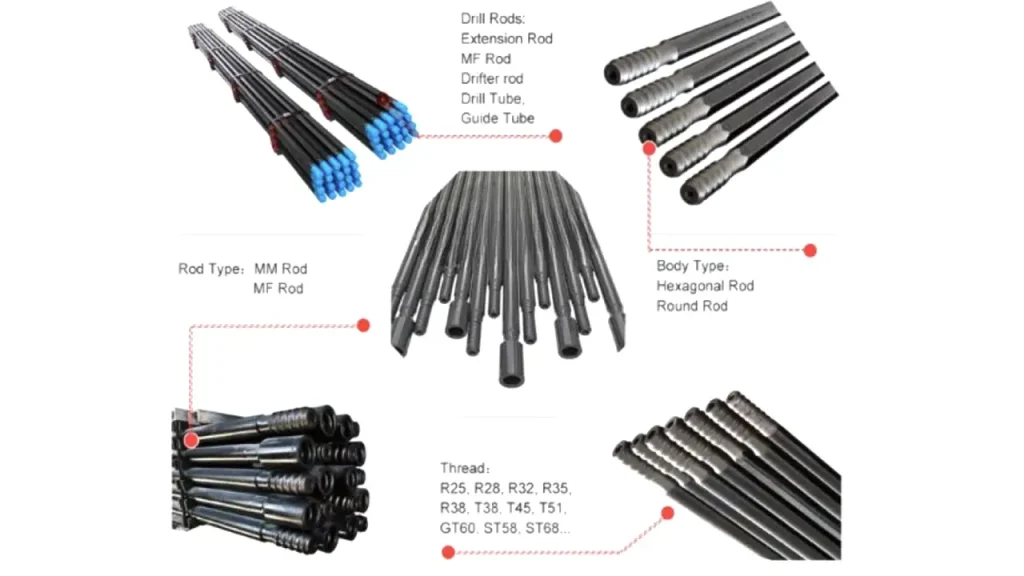

Drill rods come in various specialized types, each engineered for specific applications and geological conditions. Understanding these distinctions is crucial for selecting the appropriate rod to ensure efficiency, safety, and optimal performance in any drilling project.
Water well drill rods
Water well drill rods are widely used in the water drilling industry by contractors to bore into the earth’s surface and access underground water sources. These rods are constructed from exceptionally durable and hard materials, typically high-quality steel and other robust composites, enabling them to withstand the abrasive conditions encountered when drilling through harsh ground, including rock formations.
Designed as slender, cylindrical metal tubes, they connect to a rotating drill bit that penetrates the ground, forming a circular hole until the water table is reached.
Mining and exploration drill rods
Mining and exploration drill rods are engineered for the rigorous demands of extracting minerals and geological surveying. Fabricated from robust and resilient materials, they are built to endure the severe conditions present in earth’s crust.
A key distinction lies in their diameter: mining drills, used for material extraction, are generally larger, while exploration drills, designed for identifying mineral deposits, are typically smaller. Both types are crucial for efficient and safe operations in the resource industry.
Directional drilling rods
Directional drill rods are specialized tools enabling the creation of boreholes that deviate from a straight or vertical path, essential when navigating around subterranean obstacles like rock formations or existing pipelines.
Primarily employed in oil and gas extraction, technological advancements have significantly improved their ability to achieve precise angles, turns, and extensive underground distances. The inclusion of a “bent sub,” a section of the drill pipe angled intentionally, facilitates steering the drill in any desired direction, ensuring controlled and accurate drilling operations.
How is Drill Rod Made?
Producing a drill rod is a meticulous process that transforms raw steel into a precision-engineered component. It involves several critical stages, each contributing to the rod’s final strength, durability, and dimensional accuracy.
Step 1: Material Selection
The process begins with the careful selection of high-quality alloy steel. This initial choice is paramount as the steel’s specific composition will dictate the drill rod’s inherent properties, such as its hardness, toughness, and resistance to fatigue and wear. Different applications demand different steel grades, ensuring the final product meets stringent performance requirements for its intended use.
Once selected, the raw steel undergoes a heating process, typically in a furnace, to reach a malleable state suitable for shaping. This controlled heating ensures that the steel is uniformly softened, preparing it for the subsequent forging or rolling operations. The temperature and duration of this heating phase are precisely monitored to prevent any structural damage or undesirable changes to the steel’s properties.
Step 2: Shaping and Forming
After heating, the steel is shaped into a rod through various forming methods. Forging involves hammering or pressing the hot steel into the desired approximate shape, which helps to refine the grain structure and improve the mechanical properties of the material. Alternatively, the steel might be hot-rolled, passing through a series of rollers that progressively reduce its diameter and elongate it into a rod.
Following the initial shaping, the rods often undergo a cold drawing or cold rolling process. This involves pulling or rolling the steel at room temperature, which further refines its dimensions, improves surface finish, and significantly enhances its tensile strength and hardness. This cold working stage is crucial for achieving the tight tolerances required for high-precision drill rods.
Step 3: Heat Treatment

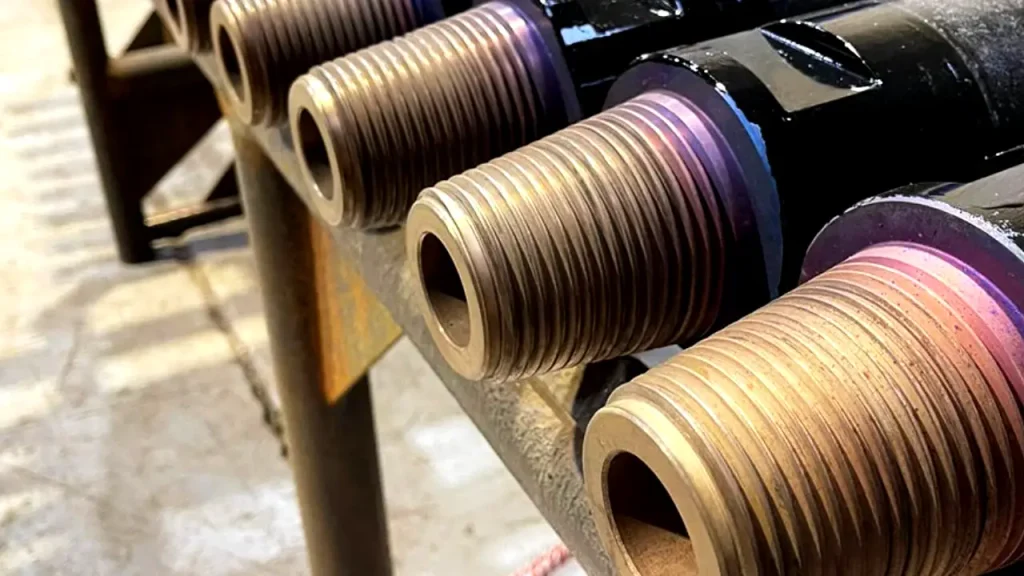

Heat treatment is a critical step that significantly enhances the mechanical properties of the drill rod. This typically involves heating the shaped rods to a specific temperature, often above their critical point, and then rapidly cooling them in a process called quenching. The quenching medium can vary, such as water, oil, or air, depending on the desired hardness and the specific steel alloy.
Following quenching, the rods undergo tempering. This involves reheating the hardened steel to a lower temperature and then allowing it to cool slowly. Tempering reduces brittleness, improves toughness, and relieves internal stresses caused by quenching, all while retaining a substantial level of hardness, making the drill rod more durable and less prone to breakage during use.
Step 4: Finishing and Inspection
The final stage involves precision finishing and rigorous quality inspection. The drill rods are often ground using abrasive wheels to achieve extremely tight dimensional tolerances and a smooth surface finish. Polishing may also be employed to further enhance the surface quality, reducing friction and wear during operation.
Each finished drill rod undergoes thorough inspection to ensure it meets all specified requirements. This includes checks for dimensional accuracy, surface integrity, hardness, and straightness. Non-destructive testing methods might also be used to detect any internal flaws, guaranteeing that only high-quality, reliable drill rods are supplied for demanding industrial applications.
Conclusion
Understanding drill rods is crucial for anyone involved in drilling operations. From their fundamental composition to their specialized designs and applications, these tools are integral to achieving efficient and precise results across various industries.
Choosing the right drill rod significantly impacts performance and safety. By considering factors like material, type, and specific drilling requirements, you can optimize your operations and prolong tool life.
For reliable and high-quality drill rods, consider Sinodrills. We offer a comprehensive range of wholesale drill hammer rods designed for durability and superior performance, ensuring your drilling projects are a success.
