While drill rigs and bits often get all the attention, the shank adapter is arguably the most critical component in any rock drilling operation. This unsung hero acts as the vital link between your drill machine’s power and the drill string, responsible for transmitting all of the percussive and rotational energy to the rock.
A deep understanding of what a shank adapter is and how it functions is essential for maximizing performance, ensuring safety, and extending the lifespan of your valuable drilling tools. This blog will explore the fundamental role of shank adapters and outline their diverse applications across various industries.
What is a Shank Adapter?
Recommended Shank Adapters
A shank adapter, also known as a striking bar, is a critical component in rock drilling that serves as the crucial link between the drill’s hydraulic piston and the drill string. Its primary function is to efficiently transfer the high-frequency impact energy, rotational torque, and feed force from the rock drill to the drill rods and eventually to the drill bit.
Crafted from high-quality alloy steel, these adapters are precision-engineered to endure extreme stress, fatigue, and wear. They are essential for ensuring a stable and secure connection, minimizing energy loss, and enabling the use of various drill bits and rods with a single drill rig across applications in mining, quarrying, and construction.
Shank Adapter Component

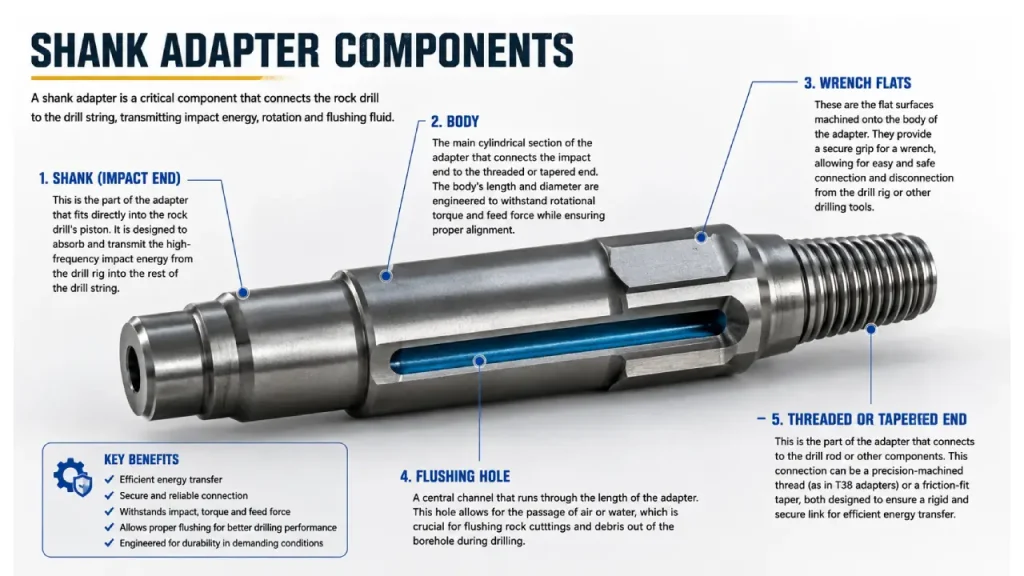

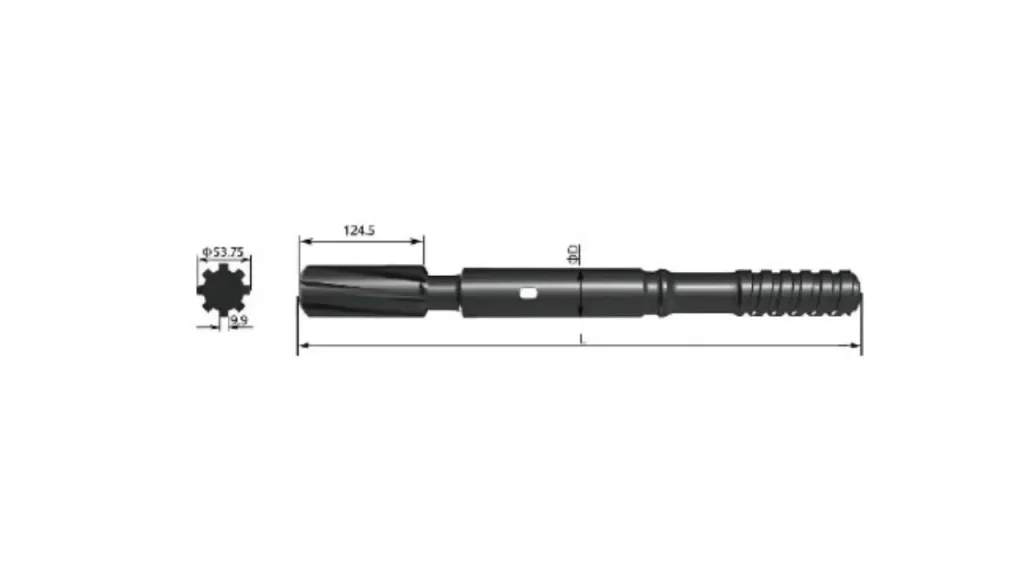

A shank adapter is composed of several key components, each engineered for a specific function in the drilling process:
- Shank (Impact End): This is the part of the adapter that fits directly into the rock drill’s piston. It is designed to absorb and transmit the high-frequency impact energy from the drill rig into the rest of the drill string.
- Body: The main cylindrical section of the adapter that connects the impact end to the threaded or tapered end. The body’s length and diameter are engineered to withstand rotational torque and feed force while ensuring proper alignment.
- Wrench Flats: These are the flat surfaces machined onto the body of the adapter. They provide a secure grip for a wrench, allowing for easy and safe connection and disconnection from the drill rig or other drilling tools.
- Flushing Hole: A central channel that runs through the length of the adapter. This hole allows for the passage of air or water, which is crucial for flushing rock cuttings and debris out of the borehole during drilling.
- Threaded or Tapered End: This is the part of the adapter that connects to the drill rod or other components. This connection can be a precision-machined thread (as in T38 adapters) or a friction-fit taper, both designed to ensure a rigid and secure link for efficient energy transfer.

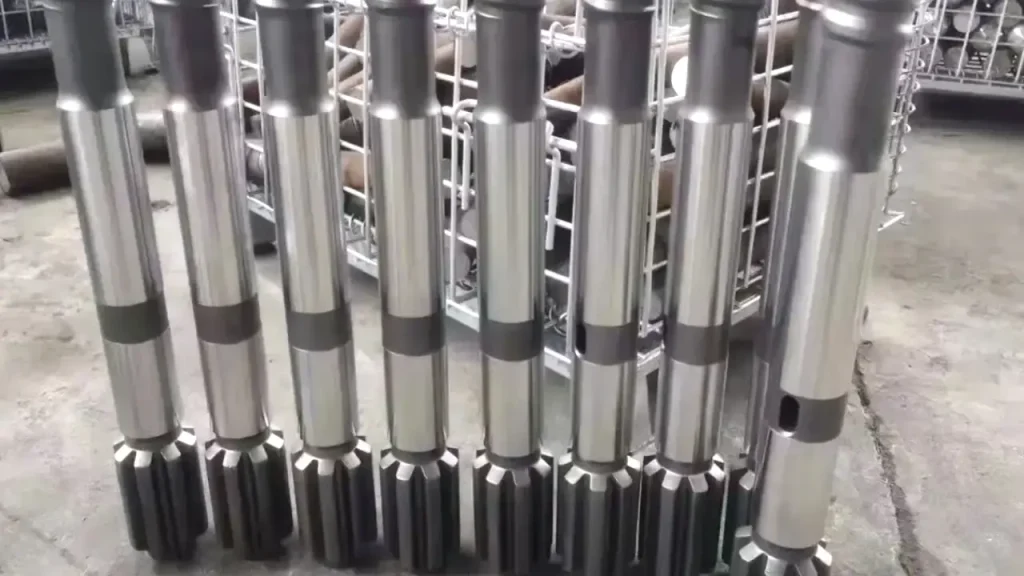

Types of Shank Adapters
Shank adapters come in various types, each designed to fit specific drilling systems and applications. The most common distinctions are based on the connection type and the intended use. These different designs ensure optimal energy transfer and compatibility, which are essential for efficient and safe drilling operations.
- Threaded Shank Adapters: These adapters use a threaded connection to screw into the drill rod or other components. They are known for their secure, rigid joint, making them ideal for high-impact applications where a strong mechanical connection is crucial. Threaded adapters include popular series like R-series (R32, R38) and T-series (T38, T45, T51).
- Tapered Shank Adapters: Unlike threaded adapters, these rely on a friction-fit taper. They provide a quick and easy connection that is excellent for projects requiring frequent bit or rod changes. While they may not be as rigid as threaded types, their convenience makes them a popular choice for many drilling tasks.
- Down-the-Hole (DTH) Shank Adapters: Specifically designed for DTH drilling, these adapters handle the unique high air pressure and rotational torque of DTH hammers. Their structure is optimized to manage air flow for flushing and to transmit power from the hammer to the drill bit at the bottom of the borehole.
- Integral Shank Adapters: In this design, the shank and the drill rod are forged as a single piece. This eliminates a separate connection point, creating a highly durable and stable drill string. Integral adapters are favored for applications where maximum strength and reliability are needed.

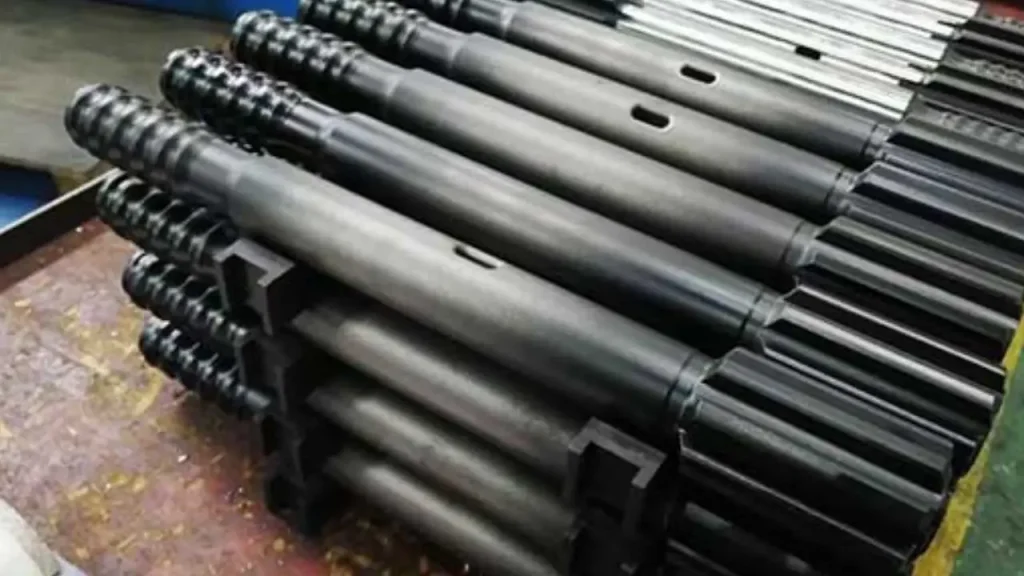

What are Shank Adapters Used for
Shank adapters are indispensable tools used in a wide array of rock drilling applications to ensure the efficient transfer of power from the drill rig to the drill string. Their robust design and specialized engineering enable them to withstand high-frequency impacts, rotational torque, and feed force, making them essential for a variety of demanding jobs.
- Mining: In both open-pit and underground mines, shank adapters are critical for creating blast holes for ore extraction and for drilling holes for rock support, such as roof bolting.
- Quarrying: They are used in quarries to drill holes for blasting large rock formations, which are then broken down into smaller pieces for use in construction and aggregate production.
- Construction: Shank adapters are fundamental in various construction projects, including foundation drilling, road building, tunneling, and creating holes for anchoring and support structures in rock.
- Civil Engineering: For large-scale infrastructure projects like dam construction and bridge building, these adapters are used to drill for geological surveys, ground reinforcement, and site preparation.
- General Utilities: They are also used for smaller-scale projects such as drilling for water wells, geothermal systems, and utility installations where drilling through rock is necessary.

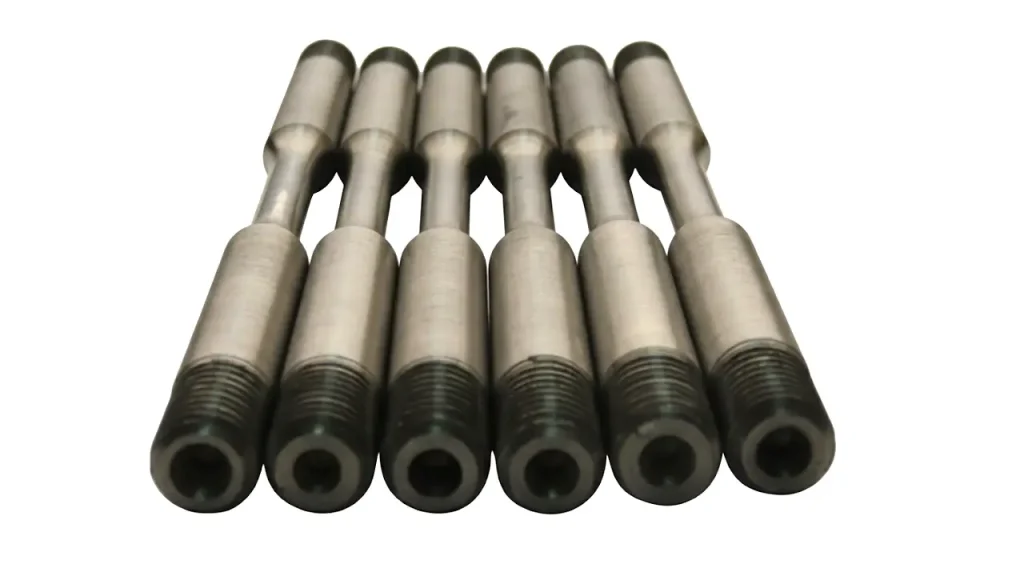

Why Choose Our Shank Adapters
When you choose our shank adapters, you are opting for a superior solution designed for maximum performance and durability. We specialize in providing tools that are not only reliable but also tailored to meet the most demanding conditions of rock drilling. Our commitment to quality ensures that our products outperform the competition, providing you with a significant return on your investment.
- Superior Materials: We use high-grade alloy steel that is specifically selected for its toughness and wear resistance, ensuring our adapters can withstand the most rigorous applications.
- Precision Engineering: Our adapters are meticulously machined to provide a perfect fit and optimal energy transfer, which translates to faster drilling speeds and improved efficiency.
- Advanced Heat Treatment: We apply a rigorous heat treatment process, including carburizing, to create a hard, wear-resistant surface while maintaining a ductile core, extending the life of the adapter.
- Compatibility: Our shank adapters are designed for seamless compatibility with a wide range of leading drill rig brands, offering you a versatile and dependable solution.
- Customization: We provide custom solutions tailored to your unique specifications, ensuring you get the exact adapter you need for your specific project requirements.
Conclusion
In summary, the shank adapter is far more than a simple connector; it is a meticulously engineered component that directly influences the success of your drilling project. Its ability to efficiently transfer energy, withstand extreme forces, and ensure a secure connection makes it indispensable across diverse applications, from mining to construction.
By selecting the right shank adapter for the job, you can significantly boost your drilling efficiency, reduce costly downtime, and prolong the life of your equipment. A high-quality adapter minimizes energy loss, which means faster penetration rates and more productive operations, ultimately delivering a better return on your investment.
For all your drilling needs, we encourage you to get wholesale drill bit shank adapters from our Sinodrills. We offer a comprehensive range of durable and reliable adapters, engineered to meet the highest industry standards. Trust Sinodrills to provide the quality tools you need for optimal performance and project success.
