Custom Hard Formation Rock Bit Manufacturer in China
We offer premium hard formation rock bits, engineered for exceptional performance and durability in challenging geological conditions. Our range includes robust TCI (Tungsten Carbide Insert) tricone bits, DTH hammers, and top hammer bits, all designed to deliver superior penetration rates and extended tool life. Contact us today to find the ideal hard formation rock bit for your drilling project.
Sinodrills - Your Trusted Hard Formation Rock Bit Manufacturer from China
Sinodrills is your trusted manufacturer from China for hard formation rock bits. We specialize in producing robust TCI tricone bits, durable DTH hammers, and resilient top hammer bits, all engineered for superior penetration and extended life in the toughest geological conditions. With our advanced manufacturing and strict quality control, we provide reliable and cost-effective solutions for global drilling demands.
Various Hard Formation Rock Bit

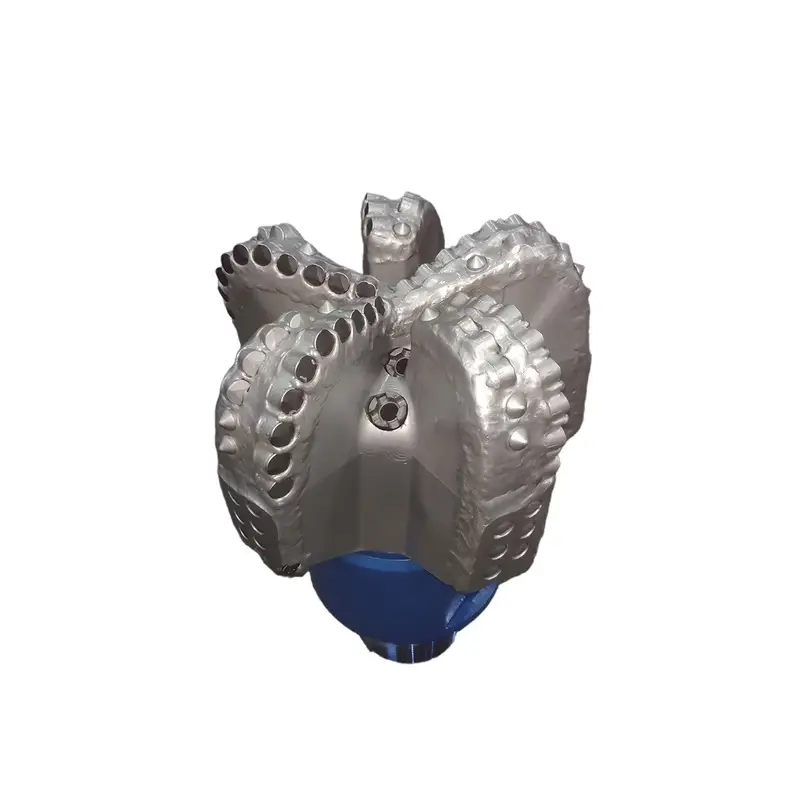

diamond drill bit for hard rock
We offer high-performance diamond drill bits specifically designed for hard rock formations. Our range includes impregnated, surface-set, and PDC (Polycrystalline Diamond Compact) bits, engineered with premium-grade diamonds for superior abrasion resistance and extended life. Ideal for exploration, coring, and challenging drilling environments, our diamond bits ensure exceptional penetration rates and core recovery in the toughest rock.

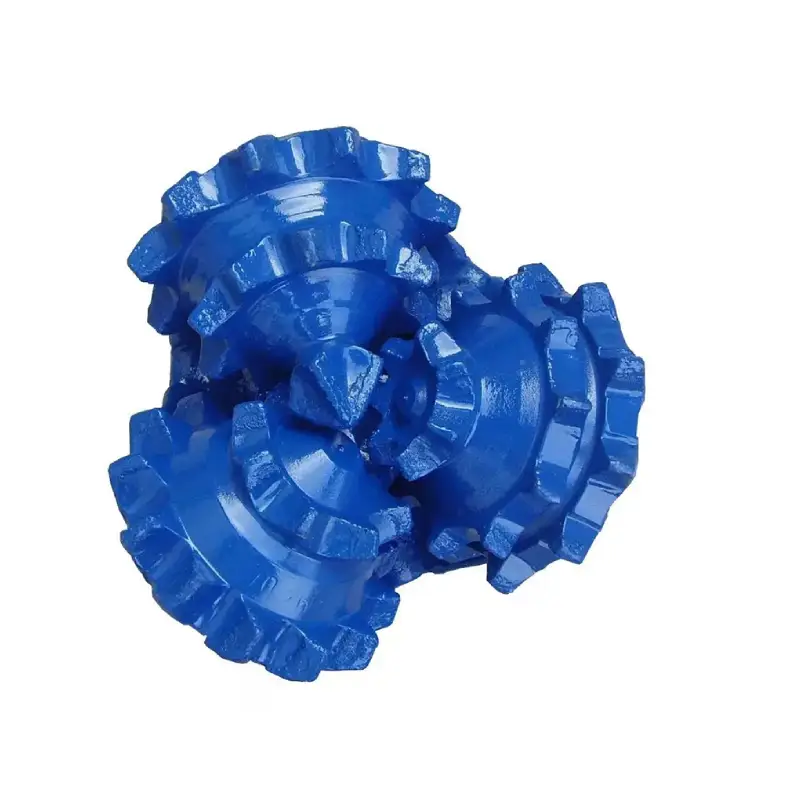

hard formation rock roller tricone bit
We offer advanced hard formation roller tricone bits, specifically designed for exceptional performance in tough rock conditions. Featuring robust tungsten carbide inserts (TCI) and durable bearing systems, these bits deliver superior penetration rates and extended operational life. Ideal for abrasive and highly compressive formations, our tricone bits ensure efficient and cost-effective drilling in mining, oil & gas, and water well applications.

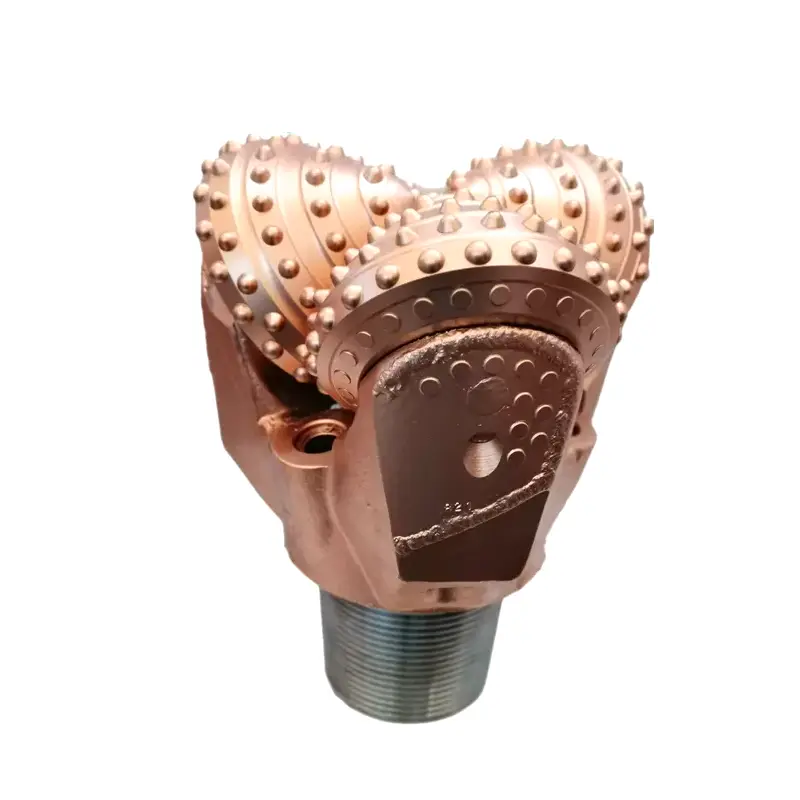

TCI tricone rock bit for hard rock formation
We offer high-performance TCI (Tungsten Carbide Insert) tricone rock bits specifically designed for hard rock formations. Our bits feature robust carbide inserts, advanced bearing systems, and optimized cutting structures to deliver exceptional drilling efficiency, superior penetration rates, and extended operational life. Ideal for granite, basalt, and other abrasive rock types, they ensure maximum productivity in challenging drilling environments.
5 blade drill bit for hard rock formation
We offer high-performance 5-blade drill bits specifically designed for hard rock formations. These advanced PDC (Polycrystalline Diamond Compact) bits feature multiple robust cutters and optimized blade designs to maximize penetration rates and ensure exceptional durability. Ideal for challenging conditions like granite, quartzite, and hard limestone, our 5-blade bits provide superior stability and extended life, reducing drilling costs.

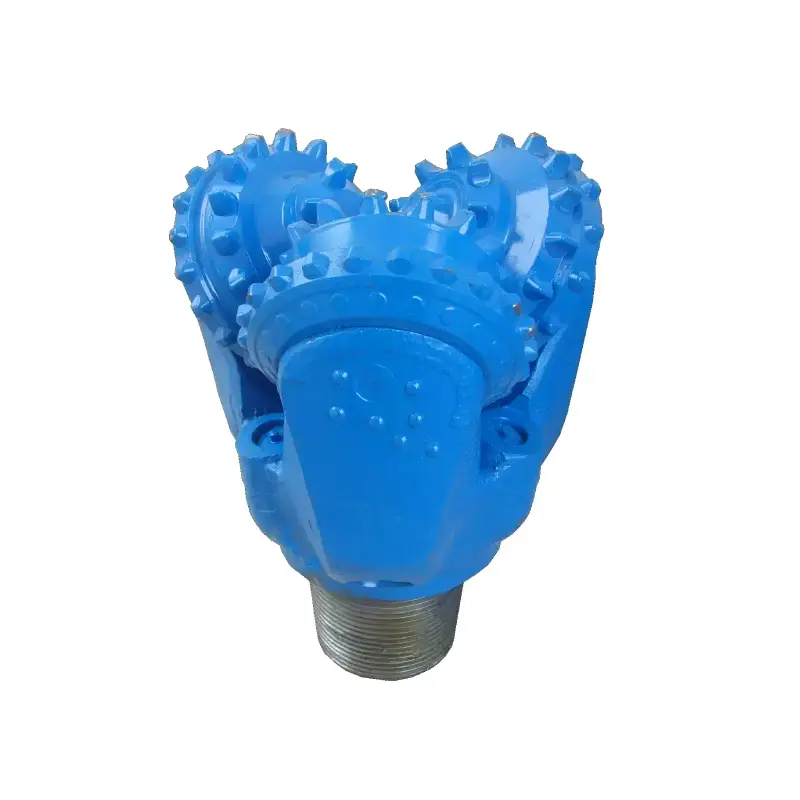

API water well rock drilling bits for hard formation
We offer API water well rock drilling bits specifically designed for hard formations. Our range includes high-performance TCI (Tungsten Carbide Insert) tricone bits and robust PDC (Polycrystalline Diamond Compact) bits, all manufactured to API standards. These bits ensure superior penetration rates, exceptional durability, and optimized performance in abrasive and high-compressive strength rocks, delivering reliable results for your water well projects.
Customize Your Desired Hard Formation Rock Bit
Tungsten Carbide Insert (TCI) Selection
We meticulously choose the highest-grade tungsten carbide inserts for our hard formation bits. This involves selecting specific shapes (e.g., conical, chisel, spherical) and grades of carbide that offer optimal wear resistance and impact strength needed to effectively crush and penetrate abrasive and high-compressive strength rocks, ensuring extended bit life.
Robust Bearing System
We integrate advanced, sealed bearing systems designed to withstand the extreme downhole forces and high temperatures encountered in hard rock drilling. These durable bearings minimize friction and wear, significantly extending the operational life of the bit, which is crucial for reducing costly trips out of the hole in challenging formations.
Enhanced Gauge Protection
We incorporate aggressive gauge protection features on our hard formation bits. This includes hardfacing materials and strategically placed tungsten carbide inserts on the bit’s gauge surface. This reinforcement prevents premature wear of the bit’s diameter, ensuring the borehole maintains its intended size and allowing for smoother re-entry and consistent drilling.
Optimized Cutting Structure and Hydraulics
We design the cutting structure with fewer, larger, and more robust inserts to handle the high impact and compressive forces of hard rock. Concurrently, we optimize the hydraulic flow (nozzle configuration) to ensure efficient removal of cuttings from the bit face, preventing re-grinding and maintaining high penetration rates in dense, consolidated formations.
what are hard formation drill bits?
Hard formation drill bits are specialized tools designed to efficiently penetrate and break through extremely dense, abrasive, and high-compressive strength rock types.
Unlike bits used for softer ground, these bits feature robust construction, often incorporating premium materials like tungsten carbide inserts (TCI) or synthetic diamonds (PDC, diamond core bits).
Their cutting structures are engineered to deliver chipping, crushing, or shearing actions necessary to effectively fracture hard rock formations such as granite, basalt, quartzite, hard limestone, and chert, ensuring superior penetration rates and extended tool life in the most challenging drilling environments.
what does hard formation include?
For drilling purposes, “hard formation” generally refers to rock types characterized by high compressive strength, abrasiveness, and density, making them difficult to penetrate. These hard rock formations require specialized drill bits and drilling techniques to achieve efficient and economical drilling.
Hard formations typically include:
Igneous Rocks: Such as granite, basalt, and diorite, known for their crystalline structure and high hardness.
Metamorphic Rocks: Including quartzite, gneiss, and marble, which have undergone significant heat and pressure, resulting in increased density and hardness.
Hard Sedimentary Rocks: Like chert, hard limestone, dolomites, and some well-cemented sandstones, which possess high compressive strength and can be very abrasive.
Abrasive Formations: Rocks containing high percentages of quartz, which rapidly wear down drill bit cutting elements.
High Compressive Strength Rocks: Formations that resist crushing and require significant force to fracture.
How to choose drill bits for hard formation?
When selecting drill bits for hard formations, a systematic approach is crucial for efficiency and cost-effectiveness. The right bit maximizes penetration and extends life.
Here’s how to choose suitable drill bits for hard rock effectively:
Step 1: Analyze Rock Properties
We begin by thoroughly analyzing the specific rock properties of the hard formation. This includes understanding its compressive strength, abrasiveness (e.g., quartz content), and fracture patterns. This fundamental step guides the initial selection, determining whether an extremely robust TCI bit or even a diamond bit is warranted for the challenge.
Step 2: Consider Drilling Method
Next, we evaluate the chosen drilling method – whether it’s rotary, DTH (Down-The-Hole), or top hammer. Each method dictates a specific type of bit designed to optimize energy transfer and cutting action. Matching the bit to the rig’s capabilities ensures efficient drilling and prevents premature bit wear or equipment strain.
Step 3: Assess Desired Performance
We then assess the desired performance outcomes. Are you prioritizing maximum penetration rate for speed, or extended bit life to reduce trip times and costs? This trade-off often influences the cutting structure design, insert projection, and bearing system selection to align with your project’s economic and operational goals.
Step 4: Evaluate Bit Features
Finally, we meticulously evaluate specific bit features. For hard formations, this means focusing on premium tungsten carbide insert (TCI) grades, robust sealed bearing systems, and aggressive gauge protection. Advanced hydraulic designs are also crucial for efficient cuttings removal, all contributing to superior performance in challenging conditions.
best drill bits for hard formation
For drilling in hard formations, the “best” drill bits are those specifically engineered to withstand high compressive strength and abrasive conditions, prioritizing durability and efficient rock penetration. These specialized hard formation drill bits achieve superior performance by employing advanced materials and cutting structures.
Key types of drill bits highly effective in hard formations include:
Tungsten Carbide Insert (TCI) Tricone Bits: These roller cone bits feature robust tungsten carbide inserts that crush and chip hard rock. Their design variations (e.g., specific insert shapes and bearing types) allow for optimization across a range of hard formations, balancing penetration rate with bit life.

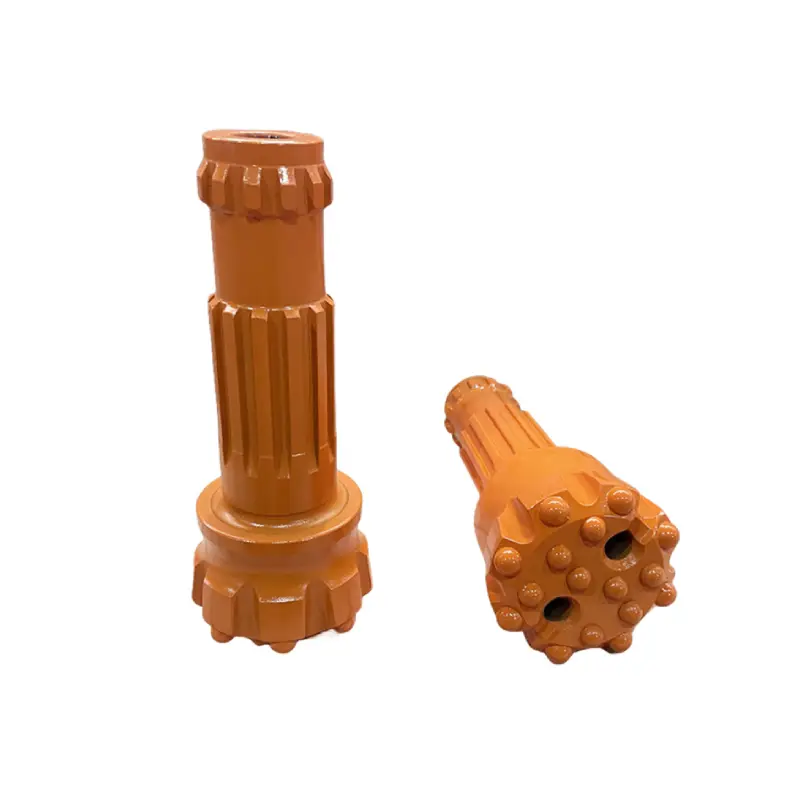

DTH (Down-The-Hole) Drill Bits: Used with DTH hammers, these percussive bits deliver powerful blows directly to the rock face, effectively pulverizing hard and abrasive formations like granite and basalt, leading to high penetration rates and straight holes.
Top Hammer Drill Bits (Button Bits): Fitted with tough tungsten carbide buttons, these bits are ideal for smaller hole diameters in hard rock, often used in tunneling and rock bolting. The button shape (spherical, ballistic) is selected based on rock abrasiveness and desired penetration.
PDC (Polycrystalline Diamond Compact) Drill Bits: While generally excelling in medium-hard to soft formations by shearing, specialized PDC bits with robust cutters and optimized designs can perform well in certain hard, non-abrasive rocks, offering high penetration rates due to their continuous cutting action.
Diamond Core Bits: Containing industrial diamonds, these bits are excellent for cutting extremely hard and abrasive formations, primarily used for geological exploration to retrieve high-quality core samples.
Send Your Inquiry Now
All-in-one Hard Formation Rock Bit Solutions for Your Project
We provide all-in-one hard formation rock bit solutions, engineered for peak performance in the most challenging conditions. Our comprehensive range includes TCI tricone, DTH, and top hammer bits, customized with premium tungsten carbide inserts, robust bearings, and enhanced gauge protection. We deliver optimal penetration rates and extended bit life, ensuring cost-effective and efficient drilling for your project from Qingdao, China.
