Custom Hot Dip Galvanized Anchor Bolts Manufacturer in China
We proudly offer a comprehensive hot-dip galvanized anchor bolt system, designed for exceptional corrosion resistance and extended service life. Our system includes various components, all treated to withstand harsh environments. This ensures your construction projects benefit from superior durability and long-term structural integrity, even in challenging conditions.
Sinodrills - Your Trusted Hot Dip Galvanized Anchor Bolts Manufacturer from China
Sinodrills stands as your trusted hot-dip galvanized anchor bolt manufacturer from China. We specialize in producing galvanized self drilling anchor bolt systems, including SDA (Self-Drilling Anchor) manufacture, ensuring superior corrosion resistance and exceptional durability for your critical projects. Our commitment to advanced manufacturing processes and stringent quality control guarantees reliable and long-lasting solutions for diverse construction and geotechnical applications worldwide.

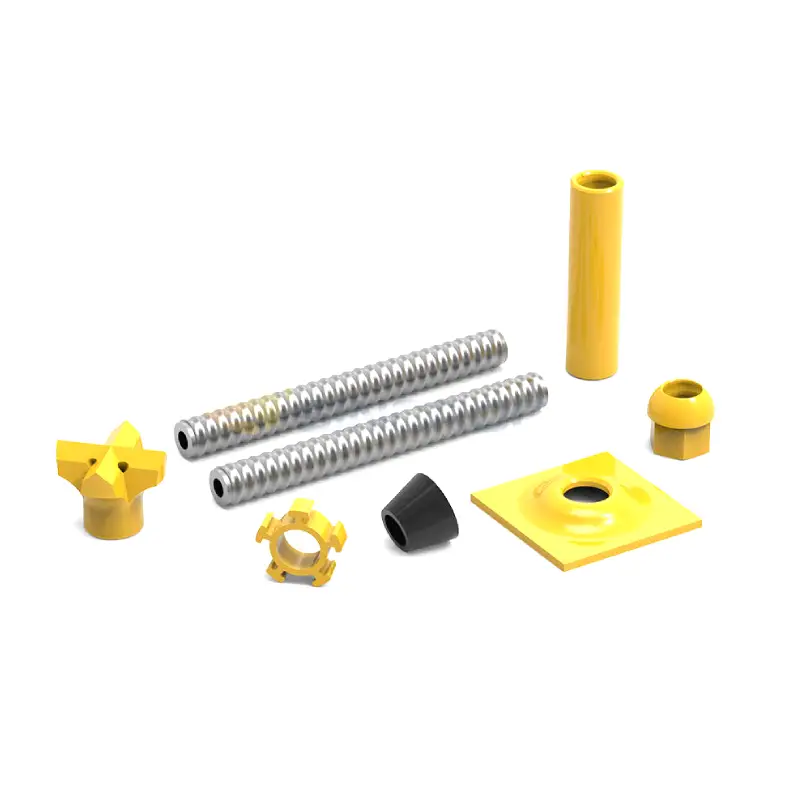

hot dip galvanized anchor bolt components
Anchor Rod/Bar: This is the main threaded steel rod, often continuously threaded, that forms the body of the anchor. It’s hot-dip galvanized for corrosion resistance, providing the primary tensile strength.
Sacrificial Drill Bit: Located at the end of the anchor rod, this component facilitates the self-drilling action. Its design varies based on the ground conditions (e.g., clay, sand, rock) and is typically made from hardened steel, often with carbide inserts, and may be galvanized or made from a material compatible with galvanization.
Coupling: Used to connect multiple anchor rods together to achieve the desired length. These are robustly designed and hot-dip galvanized to maintain the system’s overall corrosion protection and strength.
Bearing Plate (Nut Plate): A square or circular plate placed at the surface of the ground or structure. It distributes the load from the nut over a larger area, preventing localized stress and ensuring efficient load transfer, and is hot-dip galvanized.
Hex Nut: Screwed onto the threaded anchor rod against the bearing plate, this component secures the anchor system and allows for tensioning. It is also hot-dip galvanized to match the corrosion protection of the rest of the system.
Centralizer/Spacer: (Though not explicitly shown in all provided images, often part of a system) These components help to center the anchor rod within the borehole, ensuring proper grout coverage around the anchor for optimal bonding and load transfer. They may be made of plastic or galvanized metal.
Grout Adapter/Injector: (Often part of the drilling rig attachment, but conceptually a component) This piece facilitates the injection of grout through the hollow core of the anchor rod, ensuring complete filling of the annulus and proper bonding with the surrounding ground.

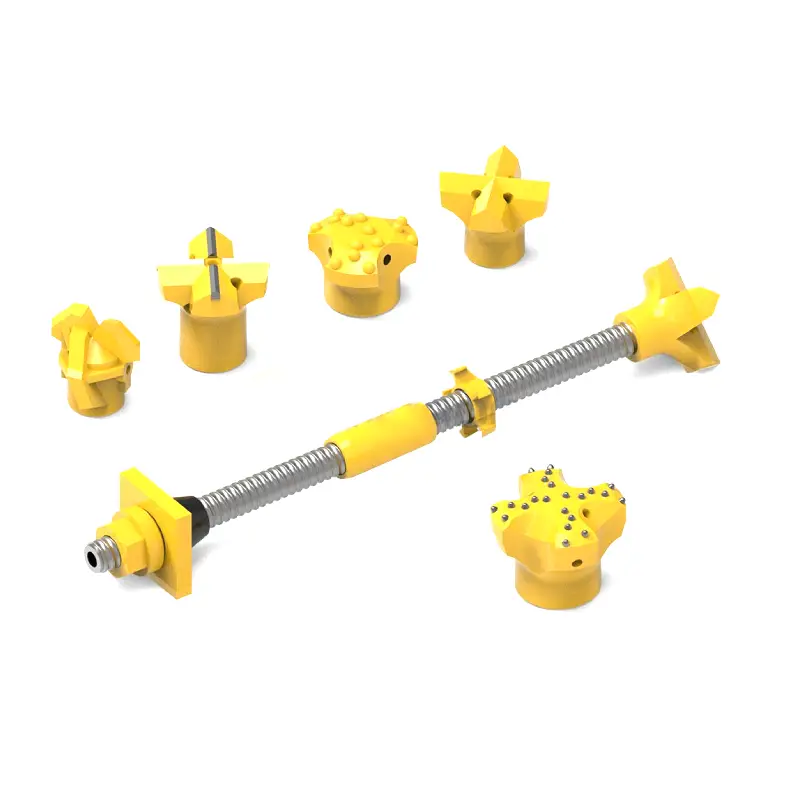

hot dip galvanized bolt working principle
Corrosion Protection (Hot-Dip Galvanization): Zinc coating forms a barrier and provides sacrificial protection, preventing steel corrosion. This metallurgical bond ensures long-term durability in harsh environments, crucial for anchor longevity.
Anchoring Mechanism (Self-Drilling Aspect): The hollow bar with a drill bit simultaneously creates a borehole and allows grout injection. This process bonds the anchor to the ground, transferring loads effectively and securing structures.
Load Transfer and Reinforcement: Once bonded, the galvanized anchor transfers structural loads into stable ground. The continuous threading and bearing plate ensure efficient load distribution and reinforce the surrounding material for enduring support.
Customize Your Desired Hot Dip Galvanized Anchor Bolts
Material Grade and Strength
We can customize the steel grade of the anchor bolt to meet specific strength requirements of your project, from standard to high-strength alloys. This ensures the anchor can withstand the precise tensile and shear loads demanded by your structural designs, guaranteeing optimal performance and safety.
Dimensions and Length
We offer flexible customization for the anchor bolt’s diameter and overall length. Whether you need specific thread sizes, precise cut lengths for shallow foundations, or extended bars for deep geotechnical applications, we can tailor dimensions to perfectly fit your unique site conditions and project specifications.
Drill Bit and Accessories
We customize the sacrificial drill bit type based on your ground conditions, ensuring efficient penetration in rock, soil, or mixed strata. Additionally, all accompanying accessories like nuts, plates, and couplings are specifically designed and hot-dip galvanized to form a cohesive, high-performance system.
Hot-Dip Galvanization Thickness and Standards
We adhere to various international hot-dip galvanization standards, allowing us to customize the zinc coating thickness to provide the exact level of corrosion protection required. This ensures the bolts offer maximum durability and longevity, even in the most aggressive corrosive environments.
what is hot dip in self drilling anchors?
In the industry of self-drilling anchors, “hot dip” refers to the hot-dip galvanization process applied to the steel components of the anchor system.
This is a method where steel anchor bars, nuts, plates, and couplings are immersed in a bath of molten zinc. The high temperature causes a metallurgical reaction, forming multiple layers of zinc-iron alloys and an outer layer of pure zinc on the steel’s surface.
This robust zinc coating provides exceptional corrosion resistance, protecting the anchor components from rust and degradation in aggressive ground conditions or corrosive environments, thereby significantly extending the service life and reliability of the self-drilling anchor system.
What are hot-dipped galvanized bolts?
Hot-dipped galvanized bolts are steel bolts that have undergone a process called hot-dip galvanization.
This involves immersing the fabricated steel bolt into a bath of molten zinc, typically at temperatures around 450°C (840°F). During this immersion, a metallurgical reaction occurs, forming a series of highly durable zinc-iron alloy layers on the surface of the steel, followed by an outermost layer of pure zinc.
This robust coating provides superior corrosion protection to the bolt, acting as both a barrier against corrosive elements and offering cathodic (sacrificial) protection if the coating is scratched, making them ideal for outdoor, marine, or highly corrosive environments.
What is the difference between zinc plated and hot-dip galvanized bolts?
While both zinc plating (electro-galvanizing) and hot-dip galvanizing apply a zinc coating for corrosion protection, their processes and resulting properties differ significantly. Understanding these differences is crucial for selecting the appropriate bolt for your application and environment.
Coating Thickness: Hot-dip galvanized bolts have a much thicker and more robust zinc coating (typically 60-100 microns) compared to zinc-plated bolts (usually 5-10 microns). This thicker layer provides superior long-term corrosion resistance.
Adhesion and Durability: Hot-dip galvanization creates a metallurgical bond between the zinc and steel, forming durable alloy layers. Zinc plating, being an electrochemical process, results in a purely mechanical bond, making the coating less adherent and more susceptible to chipping or peeling.
Corrosion Protection Mechanism: Both offer barrier protection, but hot-dip galvanizing provides superior cathodic (sacrificial) protection due to its thicker, more reactive zinc layer. If scratched, the zinc will corrode before the steel, preserving the base metal.
Appearance: Hot-dip galvanized bolts have a rougher, duller, and often non-uniform grey appearance due to the thicker coating and cooling process. Zinc-plated bolts are typically brighter, smoother, and more aesthetically uniform, often with a yellow or blue tint from chromate conversion coatings.
Application Suitability: Hot-dip galvanized bolts are preferred for outdoor, industrial, marine, or highly corrosive environments where maximum durability and long-term protection are essential. Zinc-plated bolts are more suited for indoor, less corrosive environments or applications where aesthetics are a primary concern.
What's the difference between hot-dipped and galvanized?
There is often confusion, but “hot-dipped” is a specific method of galvanizing. Therefore, all hot-dipped items are galvanized, but not all galvanized items are hot-dipped.
Galvanized (General Term): This is a broad term that refers to any process where a protective zinc coating is applied to steel or iron to prevent rusting. Methods of galvanizing include hot-dip galvanizing, electro-galvanizing (zinc plating), sherardizing, and zinc spraying.
Hot-Dipped (Specific Process): This refers to the particular method of galvanizing where the steel is immersed in a bath of molten zinc. This process creates a thicker, more durable, and metallurgically bonded coating compared to other galvanizing methods like electro-galvanizing.
Can you hot-dip galvanized threads?
Yes, threads on self drilling anchor bolts and nuts can be hot-dip galvanized. However, the process requires careful management to ensure the threads remain functional after the zinc coating is applied. Due to the thickness of the zinc layer, internal threads (like those on nuts) are often tapped oversized before galvanizing.
This allows the hot-dipped nut to fit onto a standard-sized, hot-dipped bolt after the process, ensuring proper engagement and functionality. External threads (on the bolts themselves) are generally galvanized without special treatment, as the extra thickness is accommodated by the oversized nut.
Is hot-dipped galvanized better than stainless steel bolts?
Comparing hot-dip galvanized and stainless steel bolts depends entirely on the specific application and environmental conditions, as neither is universally “better.” While hot-dip galvanization provides excellent corrosion protection for carbon steel in many harsh outdoor and industrial settings, it’s not impervious to all forms of corrosion, especially in highly acidic or alkaline environments.
Stainless steel, particularly higher grades like 316, offers superior inherent corrosion resistance due to its chromium content forming a passive layer, making it ideal for extremely corrosive or aesthetic applications where a uniform finish is desired and maximum corrosion resistance is non-negotiable.
Corrosion Resistance: Stainless steel generally offers superior inherent corrosion resistance, especially in highly corrosive environments (e.g., saltwater, certain chemicals) due to its chromium content. Hot-dip galvanization provides excellent protection but can be compromised in extreme conditions or if the coating is damaged without sufficient sacrificial area.
Strength: Carbon steel, once hot-dip galvanized, can achieve higher tensile strengths than many common grades of stainless steel (e.g., 304 or 316). If high strength is critical alongside corrosion resistance, a galvanized high-strength carbon steel bolt might be preferred.
Cost: Hot-dip galvanized bolts are typically more cost-effective than stainless steel bolts, especially for larger sizes or high-volume applications, making them a more economical choice for many standard outdoor and industrial uses.
Sacrificial Protection: Hot-dip galvanization provides sacrificial protection, meaning the zinc coating will corrode before the underlying steel if scratched. Stainless steel does not offer this sacrificial protection; if its passive layer is compromised, it can be susceptible to localized corrosion.
Appearance: Stainless steel offers a clean, uniform, and often polished appearance, making it suitable for aesthetic applications. Hot-dip galvanized bolts have a duller, rougher, and sometimes uneven finish, which is generally not a concern in industrial or construction settings.
why choose our Hot Dip Galvanized Anchor Bolts?
Choosing the right anchor bolts is crucial for the long-term integrity and safety of any construction project. Our hot-dip galvanized anchor bolts stand out due to their superior performance, durability, and cost-effectiveness, offering distinct advantages over alternative solutions. We pride ourselves on delivering a product that consistently exceeds industry standards.
Exceptional Corrosion Resistance: We meticulously hot-dip galvanize every component, ensuring a thick, metallurgically bonded zinc coating. This provides superior barrier and sacrificial protection against rust and corrosive elements, significantly extending the service life of your structures even in harsh environments like marine or industrial settings.
Unmatched Durability and Strength: Our hot-dip galvanized anchor bolts are manufactured from high-quality steel grades, ensuring robust strength to meet demanding load requirements. The galvanization process further enhances the material’s resilience, resisting abrasion and impact, which translates into unparalleled long-term structural integrity and reliability.
Cost-Effectiveness and Longevity: While the initial cost might be slightly higher than some un-galvanized alternatives, the extended lifespan and minimal maintenance requirements of our hot-dip galvanized anchor bolts lead to significant long-term savings. Their exceptional durability reduces the need for premature replacements, offering excellent value.
Versatile and Comprehensive Solutions: We offer a full range of customizable hot-dip galvanized anchor bolt systems, including self-drilling anchors and all necessary accessories. This ensures you can source an all-in-one solution tailored precisely to your project’s unique specifications, from material grade and dimensions to drill bit types and coating standards.
Trusted Manufacturing and Quality Assurance: As a leading hot-dip galvanized anchor bolts manufacturer from China, Sinodrills adheres to stringent quality control protocols at every stage of production. Our commitment to excellence guarantees that you receive reliable, high-performance products that comply with international standards, ensuring peace of mind for your critical applications.
Send Your Inquiry Now
All-in-one Hot Dip Galvanized Anchor Bolts Solutions for Your Project
Sinodrills provides all-in-one hot-dip galvanized anchor bolt solutions, encompassing every component from drill bits to nuts and plates. Our integrated approach ensures perfect compatibility and superior corrosion protection across the entire system. This streamlines your procurement and guarantees reliable, long-lasting performance for all your construction and geotechnical projects, making us your single, trusted source.
