Custom PDC Hybrid Drill Bit Manufacturer in China

We offer PDC hybrid drill bits, expertly combining roller cone and PDC technologies. This innovative design delivers superior drilling performance, enhanced stability, and increased rates of penetration (ROP) in diverse and challenging formations. Experience extended bit life and reduced trips, optimizing your drilling efficiency and cost-effectiveness.

Sinodrills - Your Trusted PDC Hybrid Drill Bit Manufacturer from China

Sinodrills, a leading PDC drill bit manufacturer from China, offers advanced PDC hybrid drill bits. Combining roller cone and PDC cutting structures, our bits deliver superior ROP, enhanced stability, and extended bit life. We specialize in providing efficient, cost-effective drilling solutions for challenging and interbedded formations, ensuring reliable performance for your projects.

Combine Different Drill Bits to Make It Strong

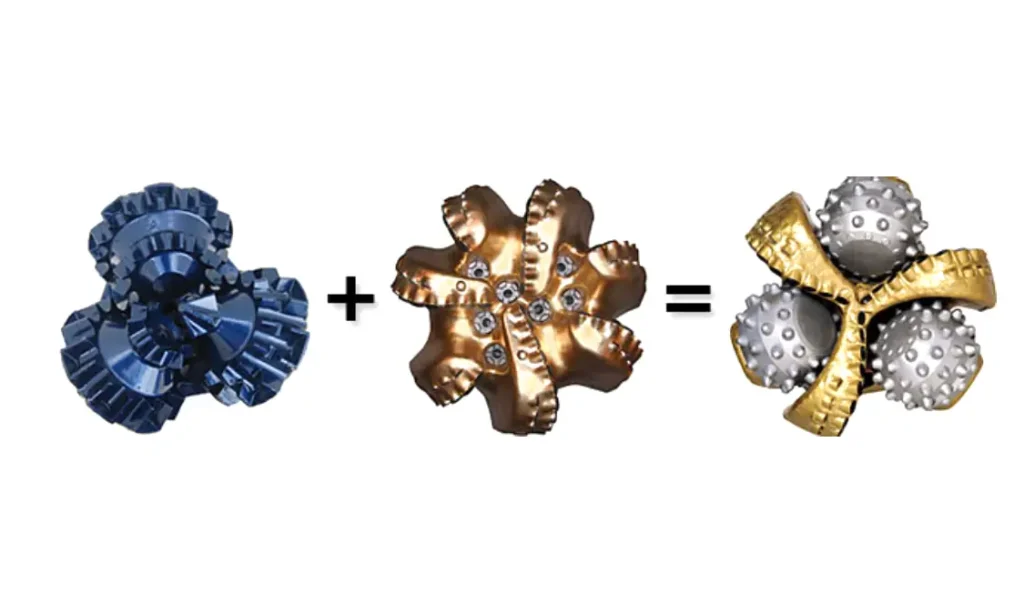

A hybrid PDC drill bit combines the strengths of a roller cone bit (left) and a PDC bit (center) into a single, powerful tool (right). This fusion provides superior rock crushing and shearing capabilities, excelling in diverse formations. The result is enhanced stability, faster ROP, and extended bit life for demanding drilling operations.

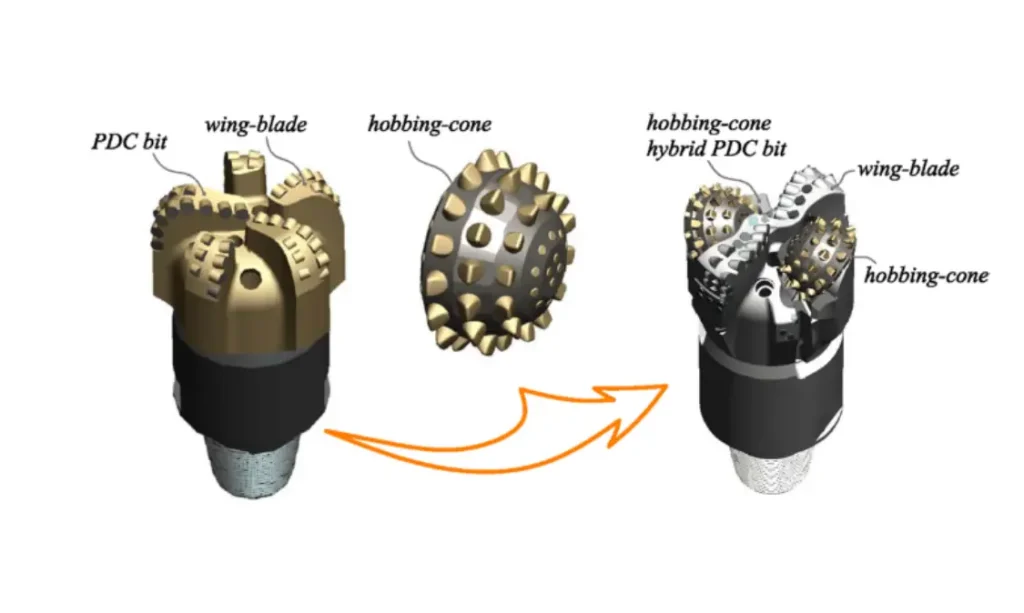

At Sinodrills, we offer custom PDC hybrid drill bits, expertly combining the aggressive shearing action of a PDC bit’s wing-blades with the crushing power of hobbing-cones. This unique integration results in superior drilling efficiency, enhanced stability, and extended bit life in challenging formations. Our hybrid combined PDC drill bit designs are tailored to optimize performance for your specific drilling needs.

Various PDC Hybrid Drill Bit

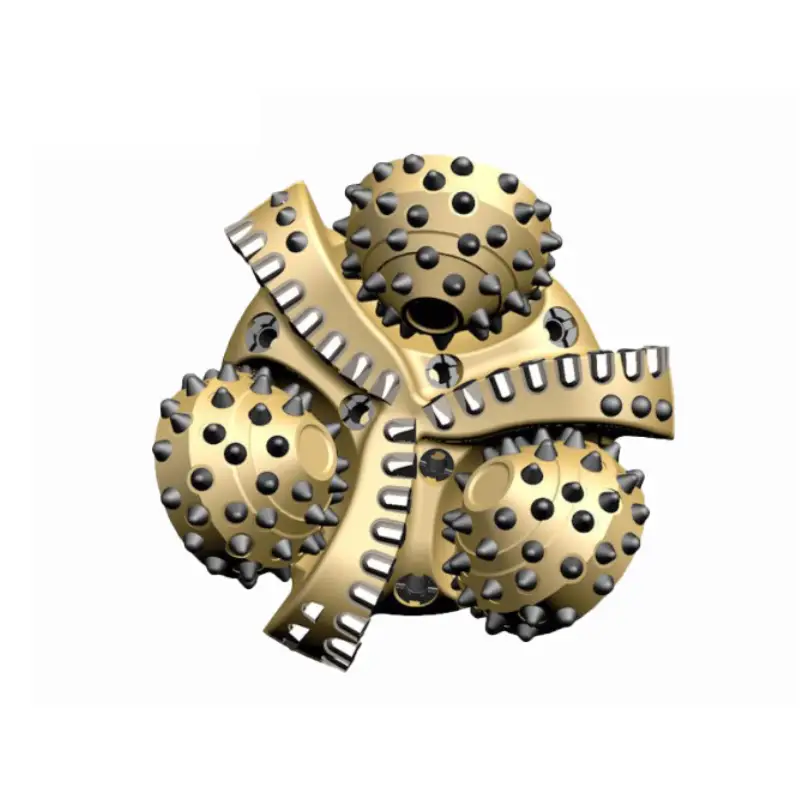

custom hybrid PDC bit

We manufacture custom hybrid PDC bits tailored to your specific drilling needs. Our expertise allows us to design and produce bespoke solutions, integrating roller cone and PDC features for optimal performance in unique formations. Benefit from enhanced ROP, superior stability, and extended bit life, ensuring maximum efficiency and cost savings for your specialized drilling projects.

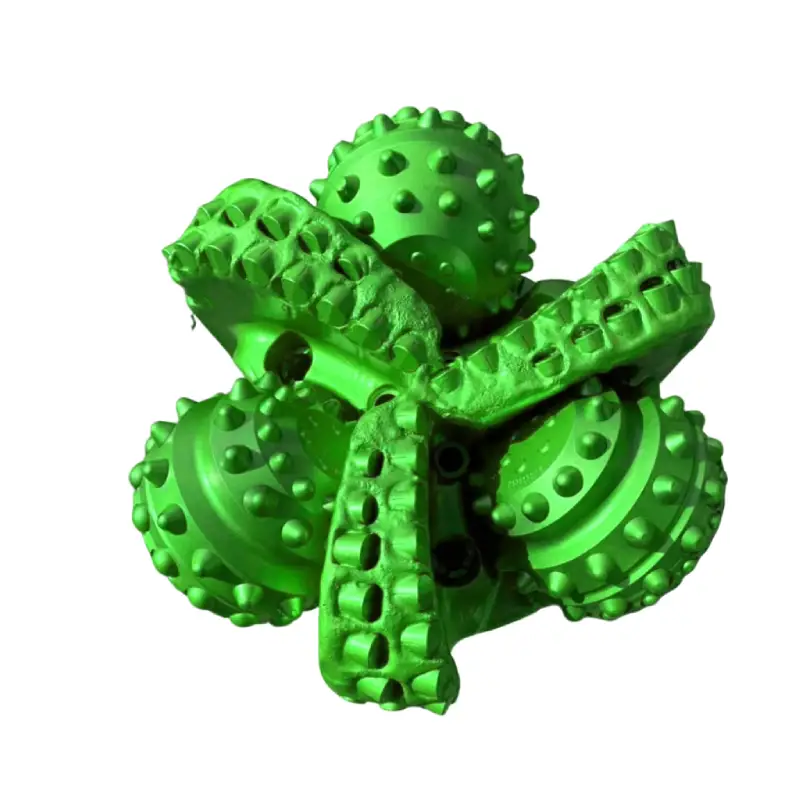

wholesale PDC hybrid drill bits

We manufacture and supply wholesale PDC hybrid drill bits. Our innovative hybrid design offers significantly higher ROP potential than conventional roller cone bits, requiring less weight on bit and minimizing bit bounce for smoother drilling. This translates to enhanced efficiency and reduced costs for your operations in varied and challenging formations.

4 blade PDC hybrid drill bit

We manufacture high-performance 4-blade PDC hybrid drill bits, expertly blending roller cone and PDC cutting structures. Our innovative design ensures superior ROP, enhanced stability, and extended bit life in diverse, challenging formations. We are committed to supplying reliable, cost-effective drilling solutions for your most demanding projects.

PDC tricone combined hybrid drill bit

We customize PDC tricone combined hybrid drill bits, expertly blending the crushing action of roller cones with the shearing efficiency of PDC cutters. This innovative design provides unmatched stability, superior ROP, and extended bit life in diverse and challenging formations, from soft to hard and interbedded. Optimize your drilling operations with our high-performance hybrid solutions.

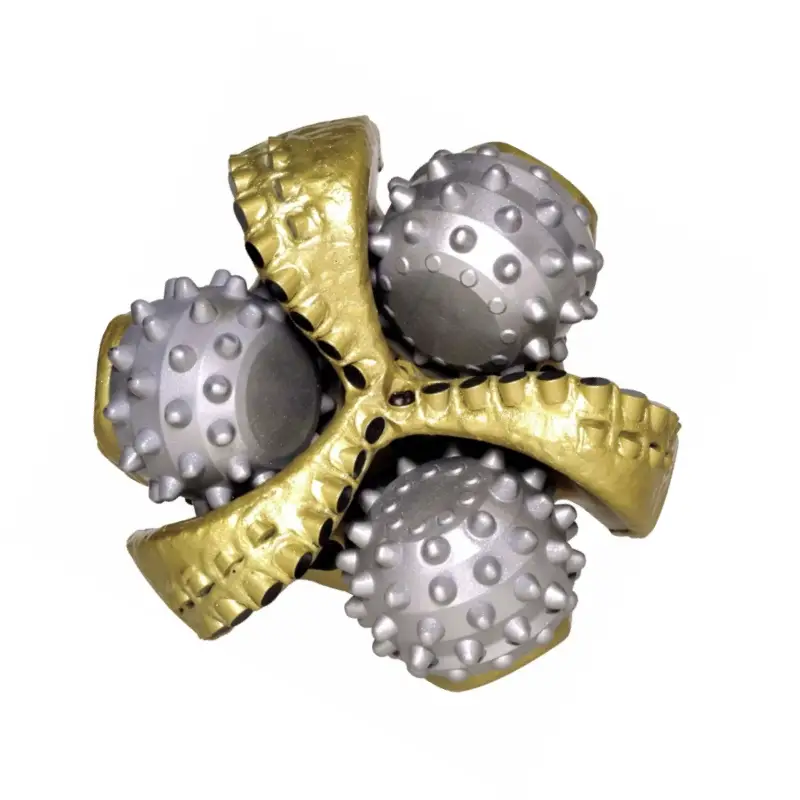

three cone PDC hybrid drill bit

Sinodrills offers high-performance three-cone PDC hybrid drill bits. We combine the crushing action of roller cones with the shearing efficiency of PDC cutters, offering superior penetration rates and enhanced stability. Our bits are engineered for demanding applications, ensuring longer life and reduced drilling costs in diverse, challenging formations.

three cone PDC hybrid drill bit

Customize Your Desired PDC Hybrid Drill Bit

Cutting Structure Optimization

We meticulously design the arrangement and type of PDC cutters on the wings and hobbing cones. This involves selecting appropriate cutter sizes, shapes, and exposure levels to match the formation’s abrasiveness and compressive strength, ensuring optimal ROP and durability for your specific drilling conditions.

Cone and Roller Placement

We strategically position the hobbing cones relative to the PDC blades to achieve the ideal balance between crushing and shearing. This minimizes bit whirl and stick-slip, providing enhanced stability and smoother drilling in interbedded or variable formations, maximizing efficiency and preventing premature wear.

Nozzle Configuration

We customize the number, size, and orientation of the nozzles to optimize fluid flow and cuttings removal. This includes selecting appropriate jet velocities to ensure effective bottom hole cleaning and prevent re-grinding of cuttings, which significantly impacts penetration rates and extends drill bit life.

Material Selection and Metallurgy

We choose advanced materials for both the bit body and cutting elements, considering the expected downhole temperatures, pressures, and corrosive environments. Our metallurgical expertise ensures exceptional strength, wear resistance, and toughness, extending the bit’s lifespan and reducing non-productive time in demanding operations.

what is a PDC hybrid drill bit?

A PDC hybrid drill bit is an innovative drilling tool that combines the best features of two traditional drill bit types: the rock-crushing capability of a roller cone bit and the continuous shearing action of a Polycrystalline Diamond Compact (PDC) bit.

This unique design allows the hybrid bit to excel in diverse and challenging geological formations, particularly interbedded layers where rock hardness varies significantly.

By integrating both rotating cones with fixed PDC cutters, it delivers enhanced stability, reduces vibrations, improves directional control, and ultimately achieves higher rates of penetration (ROP) and extended bit life compared to using either bit type alone.

What is the difference between PDC and tricone drill bits?

While both PDC and tricone drill bits are essential for drilling, they operate on fundamentally different principles and are suited for distinct applications. Understanding their differences is crucial for selecting the optimal tool for specific geological conditions.

Cutting Mechanism

PDC (Polycrystalline Diamond Compact) drill bits are fixed-cutter bits that shear and scrape the rock with sharp, synthetic diamond cutters. They operate like a continuous cutting tool, constantly engaged with the formation. In contrast, tricone (or roller cone) drill bits have three rotating cones with teeth or inserts that crush, gouge, and chip away at the rock as the bit rotates.

Suitable Formations

PDC bits excel in softer to medium-hard, homogenous formations like shale, sandstone, and limestone, where their shearing action can efficiently remove rock. They are less effective in very hard, abrasive, or fractured formations. Tricone bits are highly versatile and perform well across a wide range of rock types, from soft to extremely hard and abrasive formations, due to their robust crushing action.

Rate of Penetration (ROP)

In suitable formations, PDC bits generally achieve significantly higher Rates of Penetration (ROP) than tricone bits. Their continuous cutting action and fewer moving parts contribute to faster drilling. Tricone bits, while effective, often have lower ROPs, especially in softer formations where PDC bits shine, but can be more consistent in extremely hard rock.

Durability and Lifespan

PDC bits typically have a longer lifespan in their ideal drilling conditions because they lack moving parts, which are common points of failure in tricone bits. However, PDC cutters can be susceptible to impact damage in very hard or fractured rock. Tricone bits, with their robust steel or tungsten carbide inserts, are more resilient to shock and impact, making them durable in tougher drilling environments, though their bearings are wear points.

Cost

Initially, PDC bits generally have a higher upfront manufacturing cost than tricone bits due to the expensive synthetic diamond cutters. However, their potential for higher ROP and longer lifespan can lead to lower overall drilling costs by reducing the number of trips required. Tricone bits are often more economical for shallower wells or less demanding formations.

Vibration and Stability

PDC bits can be prone to stick-slip and torsional vibrations in certain formations, which can reduce efficiency and damage the bit or drilling string. Tricone bits, with their rolling action, tend to provide a smoother and more stable drilling experience, reducing vibrations and improving directional control, especially in hard and abrasive conditions.

how to combine Hybrid PDC drill bits?

Combining a hybrid PDC drill bit involves integrating the distinct cutting mechanisms of both PDC and roller cone technologies onto a single bit body.

This process requires precise engineering and manufacturing steps to ensure optimal performance.

Step 1: Design Integration

We begin by designing the bit’s architecture, strategically placing both PDC cutters and roller cones (often referred to as hobbing cones or rolling elements) on the bit face. This critical step ensures proper interaction with the formation, balancing the shearing action of PDC and the crushing force of the cones for effective rock removal.

Step 2: Body Manufacturing

The bit body is typically manufactured from high-strength steel or a matrix material. This process incorporates features like cutter pockets for the PDC elements and bearing journals for the roller cones. Precision machining is crucial to ensure the accurate alignment and secure attachment of all components.

Step 3: PDC Cutter Placement

Individual PDC cutters are then brazed into their designated pockets on the bit’s “wing-blades” or main body. The orientation, size, and quantity of these cutters are meticulously chosen based on the desired aggressiveness and resistance to wear for the targeted drilling applications and formation types.

Step 4: Roller Cone Assembly

The roller cones, often fitted with tungsten carbide inserts (TCI) or milled steel teeth, are precisely assembled onto the bit body using robust bearing systems. These cones are designed to rotate independently, providing the necessary crushing and gouging action for harder streaks or interbedded formations.

Step 5: Finalization and Testing

After all components are integrated, the hybrid bit undergoes rigorous inspection and quality control. This includes checking cutter exposure, bearing integrity, and overall structural soundness. Performance testing, sometimes simulating downhole conditions, ensures the bit meets design specifications and is ready for demanding drilling operations.

why use Hybrid PDC drill bits?

Hybrid PDC drill bits offer a compelling advantage by combining the strengths of PDC and roller cone technologies, making them ideal for challenging drilling environments. They address limitations of conventional bits, leading to more efficient and cost-effective operations.

Here’s why they are preferred:

Versatility: Excellently handle a wide range of formations, from soft to hard and interbedded, reducing the need for frequent bit changes.
Enhanced ROP (Rate of Penetration): Achieve faster drilling speeds due to the combined shearing and crushing action.
Improved Stability: Reduce vibrations and stick-slip, leading to smoother drilling and better directional control.
Extended Bit Life: Less prone to wear and tear in diverse formations, resulting in fewer trips and lower overall drilling costs.
Reduced Drilling Costs: Higher efficiency, fewer bit changes, and longer lifespan contribute to significant operational savings.

Send Your Inquiry Now

All-in-one PDC Hybrid Drill Bit Solutions for Your Project

Sinodrills provides comprehensive PDC hybrid drill bit solutions, seamlessly integrating roller cone and PDC technologies. We custom-design bits for your specific project needs, optimizing cutting structures, cone placement, and nozzle configurations. Our advanced metallurgy ensures superior performance, stability, and extended bit life, delivering maximum drilling efficiency and cost-effectiveness for diverse geological challenges.
