Rock drilling is a fundamental process in various industries, from mining and construction to exploration and infrastructure development. This ultimate guide likely delves into the diverse techniques and equipment employed to penetrate and fracture rock formations. Understanding the principles and applications of rock drilling is crucial for efficient and safe operations across these sectors.
Exploring the intricacies of rock drilling reveals the importance of selecting the right method for specific rock types and project requirements. Factors such as hardness, abrasiveness, and desired borehole characteristics significantly influence the choice of drilling technology. This guide aims to provide a comprehensive overview of these considerations and the available solutions.
What is Rock Drilling
Rock drilling is the process of creating holes in rock formations for various applications such as mining, construction, and exploration. Specialized equipment and techniques are employed to penetrate the hard rock, facilitating tasks like installing anchors, extracting minerals, creating blast holes, or obtaining core samples for geological analysis.
The choice of drilling method and equipment depends on the rock type, the required depth and diameter of the hole, and the specific purpose of the drilling operation.
What is Rock Drilling Use for?
Rock drilling is the process of creating boreholes in rock formations for a variety of purposes. This essential activity enables various industries to access resources, prepare sites for construction, and conduct geological investigations. Specialized tools and techniques are employed to overcome the inherent hardness and strength of rock, allowing for the creation of holes with specific diameters and depths tailored to the intended application.
Rock drilling encompasses a range of drilling methods, each suited to different rock types and project requirements. These methods often involve applying force and a cutting or fracturing mechanism to the rock surface. Common techniques include:
- Rotary Drilling: Utilizing a rotating drill bit to grind or crush the rock.
- Percussive Drilling: Employing impact force to fracture the rock, often combined with rotation.
- Rotary-Percussive Drilling: Combining both rotation and percussive actions for efficient penetration in various rock types.
- Diamond Core Drilling: Using a diamond-impregnated bit to cut a cylindrical core sample for geological analysis.
Rock Drilling Methods
Rock drilling, a crucial process in mining, construction, and exploration, employs diverse techniques to penetrate and fracture rock formations. Selecting the appropriate drilling method hinges on factors like rock type, desired borehole size, and project economics.
Percussion Drilling
Percussion drilling employs a hammering action to fracture rock. A drill bit repeatedly strikes the rock surface, creating small chips. This method is effective for medium to hard rock and is commonly used in mining and quarrying for creating blast holes.
Rotary Drilling
Rotary drilling utilizes rotational force and downward pressure to grind away rock. A drill bit with cutting elements rotates against the rock face, generating cuttings that are then removed. This technique excels in softer to medium-hard rock and is widely used in oil and gas exploration.
Rotary-Percussive Drilling
Combining the actions of percussion and rotation, rotary-percussive drilling delivers rapid penetration in hard and abrasive rock. The hammering action fractures the rock, while the rotation clears cuttings and advances the bit. This method is prevalent in tunneling and deep hole drilling.
Thermal Drilling
Thermal drilling employs intense heat to melt or vaporize rock. Techniques like jet piercing utilize high-velocity flames to create boreholes. While effective in very hard rock, thermal methods are energy-intensive and have specific applications, such as in taconite mining.
How to Use a Rock Drill
Operating a rock drill demands careful attention to safety and technique for effective and safe rock penetration. Prioritize personal protective equipment (PPE) and understand your equipment.
Preparation and Safety
Before commencing, ensure you have safety glasses, hearing protection, gloves, and sturdy footwear. Inspect the drill for any damage or loose parts. Clear the work area of obstructions and ensure the rock is stable. If using a pneumatic drill, check air hoses for leaks and secure connections. Always be mindful of dust and have dust suppression measures in place, like water spraying, if applicable.
Starting and Drilling
Position the drill bit on the desired drilling point, applying steady initial pressure. Start the drill slowly to create a pilot hole, then gradually increase power. Maintain a firm, balanced stance and a secure grip on the drill. Forcing the drill can lead to bit damage or injury. If the bit jams, stop the drill immediately and carefully remove it, ensuring the drill is powered off.
Technique and Maintenance
Apply consistent, even pressure while drilling, allowing the drill to do the work. Avoid excessive force or wobbling, which can damage the bit and create an uneven hole. For deeper holes, periodically remove the bit to clear debris. If using a wet drilling method, maintain a steady water flow to cool the bit and suppress dust. After use, clean the drill and inspect the bit for wear or damage. Store the drill in a safe, dry place.
Which Machine is Used for Drilling Rocks?

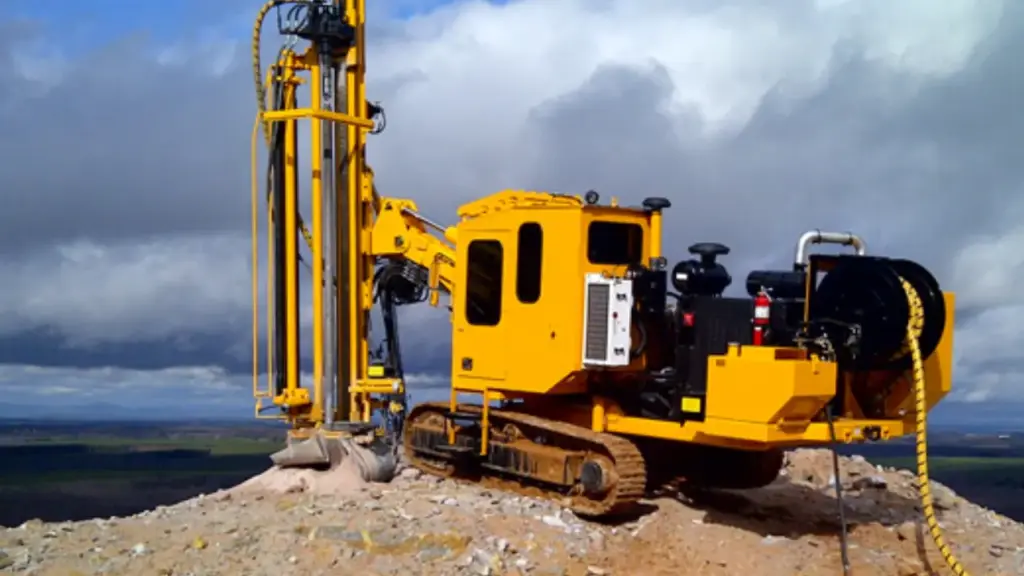

Various machines are employed for drilling rocks, each suited to specific applications and rock types. These machines utilize different mechanisms to fracture and penetrate rock formations, ranging from impact to abrasion.
The selection of the appropriate rock drilling machine depends on factors such as the hardness of the rock, the required borehole diameter and depth, and the project’s accessibility and economic considerations.
Here are some common types of machines used for drilling rocks:
- Pneumatic Rock Drills: Powered by compressed air, these drills are versatile and commonly used in mining and construction for creating blast holes and other applications.
- Hydraulic Rock Drills: Known for their high power and efficiency, hydraulic drills are often used in large-scale mining, tunneling, and construction projects.
- Down-the-Hole (DTH) Drills: These drills feature a hammer located at the bottom of the drill string, providing efficient drilling in hard rock formations, often used in mining and water well drilling.
- Top Hammer Drills: These drills deliver percussive force from the surface through drill rods, suitable for a variety of rock types and applications in construction, mining, and quarrying.
- Rotary Drills: Utilizing rotational force and downward pressure, these drills are effective in softer to medium-hard rock, commonly used in oil and gas exploration and large-diameter boreholes.
- Core Drills: Equipped with a hollow drill bit, core drills extract cylindrical rock samples for geological analysis in exploration and geotechnical investigations.
What Drill Bit for Rock?
Choosing the correct drill bit for rock is paramount for efficient drilling, tool longevity, and safety. The optimal drill bit depends heavily on the rock’s hardness, abrasiveness, and geological characteristics, as well as the specific drilling method (e.g., rotary, percussive, or core drilling) and the desired hole type. Using the wrong bit can lead to slow penetration, premature wear, tool breakage, and even damage to the rock formation.
For general rock drilling, especially in harder formations, masonry drill bits with carbide tips are a common choice. However, for more demanding applications or extremely hard rock, specialized bits are essential. The material and design of the drill bit are critical factors; carbide inserts and diamond elements are frequently incorporated to enhance cutting ability and durability against abrasive rock.
What type of drill bit for rock?
Here are the main types of drill bits used for rock, categorized by their application:
For Soft to Medium-Hard Rock (e.g., shale, sandstone, limestone, soft marl, heavily weathered rock):
- Chisel Drill Bits: Suitable for light rock drills and smaller holes (under 50mm) in lower hardness rocks. They have a flat, chisel-shaped cutting edge.
- Cross Drill Bits: Effective in complex rock strata with cracks and offer strong radial wear resistance. They have an X-shaped cutting edge.
- Button Drill Bits (Tapered or Threaded): Feature tungsten carbide inserts (buttons) that provide high impact force to break the rock. They are versatile and widely used.

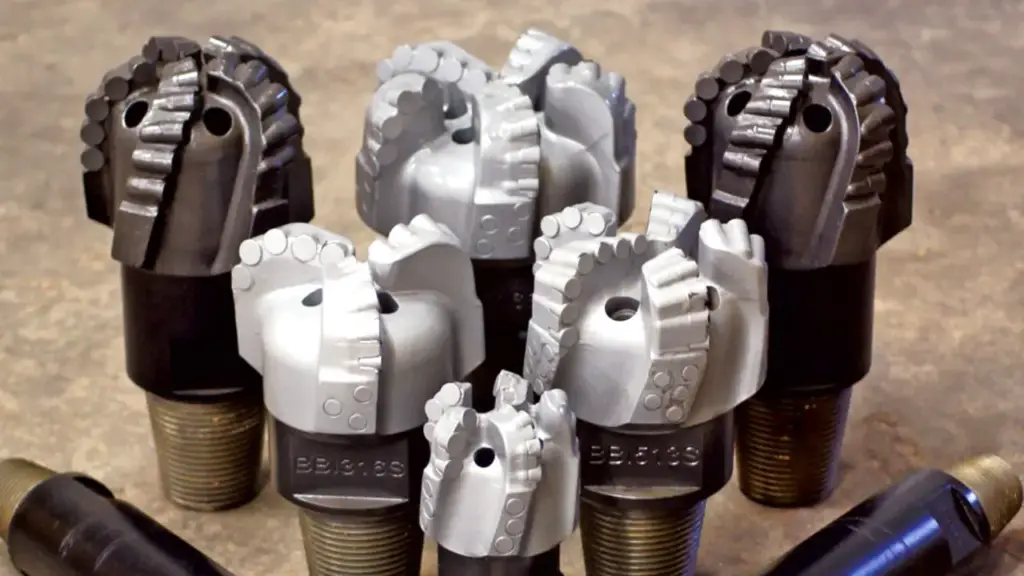

- PDC (Polycrystalline Diamond Compact) Bits: Use fixed, industrial-grade diamond cutters. They are fast and durable in softer to medium-hard abrasive formations, like shale and sandstone, and can also perform in some harder rocks.
- Tricone Bits (TCI or Steel Tooth): These bits have three rotating cones with teeth or inserts. Different designs are available for soft to very hard formations, providing a crushing and grinding action.
For Hard to Very Hard Rock (e.g., granite, basalt, quartzite, hard limestone, unreinforced concrete):
- Diamond-Tipped Drill Bits: Essential for extremely hard and abrasive rocks. They have industrial-grade diamonds embedded in the bit’s matrix, which grind through the material. Often require water cooling.
- Diamond Core Bits: Designed for extracting cylindrical rock samples (cores) in hard rock. They are ring-shaped with diamond segments on the cutting edge.
- Carbide-Tipped Masonry Bits (often used with hammer drills): While broader “masonry bits” can handle various materials, specifically carbide-tipped versions are crucial for hard rock due to their wear resistance and ability to withstand percussive forces. Full carbide head bits offer superior performance and longevity.
- Button Bits (specifically designed for hard rock): While button bits are versatile, those specifically designed for hard rock will have harder carbide grades and button geometries optimized for crushing very hard formations.
What Are the Techniques of Rock Drilling?
Various techniques are employed to drill through rock, each leveraging distinct mechanical or thermal principles to create boreholes. The choice of technique is dictated by factors such as the rock’s hardness, the desired hole diameter and depth, and the project’s specific requirements. Understanding these techniques is crucial for efficient and effective rock excavation.
Here are some key techniques utilized in rock drilling:
- Percussion Drilling: This technique involves repeatedly striking the rock surface with a drill bit, using impact force to fracture the material. It is effective for medium to hard rock and is often used for creating blast holes.
- Rotary Drilling: Rotary drilling employs rotational force and downward pressure to grind away the rock. A rotating drill bit with cutting elements shears or crushes the rock. This method is well-suited for softer to medium-hard rock, as seen in oil and gas drilling.
- Rotary-Percussive Drilling: Combining both impact and rotation, this technique delivers rapid penetration in hard and abrasive rock. The percussive action fractures the rock, while rotation helps clear cuttings and advance the bit, commonly used in tunneling.
- Thermal Drilling: This method utilizes intense heat to melt or vaporize rock. Jet piercing, a type of thermal drilling, employs high-velocity flames. While effective in very hard rock, it’s energy-intensive and has specialized applications.
- Diamond Core Drilling: This technique uses a drill bit embedded with industrial diamonds to cut a cylindrical core sample from the rock. It is primarily used for geological exploration to obtain intact rock samples for analysis.
- Auger Drilling: The simplest form, auger drilling uses a helical screw rotated into the ground to extract material. It is typically used for softer materials and shallower depths, often for soil sampling or creating small diameter holes.
Purpose of Rock Drilling
The fundamental purpose of rock drilling is to create boreholes in rock formations for a diverse range of applications. These artificially created cavities serve as access points or facilitate various processes that would otherwise be impossible or significantly more challenging to achieve. The size, depth, and precision of these boreholes are dictated by the specific requirements of the intended application, and the method of drilling is chosen based on the rock’s properties and the project’s goals.
Rock drilling plays a vital role across numerous industries, enabling essential activities from resource extraction to infrastructure development. The creation of these holes allows for the implementation of various critical procedures, contributing significantly to modern society and technological advancement.
Here we highlight the key purposes of rock drilling:
- Mining: Creating blast holes for the extraction of ores and minerals.
- Construction: Drilling for foundations, anchoring, tunneling, and rock stabilization.
- Exploration: Obtaining core samples for geological analysis and resource assessment.
- Oil and Gas: Drilling wells for the extraction of hydrocarbons.
- Water Wells: Creating access to underground water sources.
- Geothermal Energy: Drilling wells to tap into subsurface heat.
- Quarrying: Creating pathways for rock breaking and removal.
- Infrastructure: Drilling for the installation of utilities, such as pipelines and cables.
- Environmental Studies: Drilling for monitoring wells and soil sampling.
Conclusion
In conclusion, rock drilling is a fundamental process in various industries, essential for tasks ranging from mining and construction to exploration and infrastructure development. This ultimate guide likely covers diverse drilling techniques, equipment, and safety considerations crucial for effective and safe operations in challenging geological environments. Understanding these aspects is key to successful projects.
For professionals involved in rock excavation and resource extraction, access to reliable and durable drilling tools is paramount. Sinadrills offers a comprehensive selection of wholesale rock drilling tools designed for efficiency and longevity. Sourcing directly from a manufacturer can provide cost-effective solutions tailored to demanding rock drilling applications.
By understanding the intricacies of rock drilling and partnering with a reputable supplier like Sinadrills for wholesale tools, businesses can optimize their operations, enhance productivity, and ensure the successful completion of projects requiring rock penetration. Investing in quality equipment is a cornerstone of efficient and safe rock drilling endeavors.
