Custom 4 Wing PDC Drill Bit Manufacturer in China
The 4 Wing PDC Drill Bit stands as a workhorse in the drilling industry, known for its robust construction and versatile performance. Unlike bits with more or fewer blades, the 4 wing PDC drill bit strikes a balance, offering excellent stability, efficient cuttings removal, and a high rate of penetration in a wide array of geological formations. Its design is particularly effective in softer to medium-hard rock types, where its aggressive cutting structure can truly shine. We’ll delve into the specific characteristics that make the 4 wing PDC drill bit a preferred choice for many drilling operations, ensuring optimal efficiency and reliability on your projects.
Sinodrills - Your Trusted 4 Wing PDC Drill Bit Manufacturer from China
Sinodrills is your trusted manufacturer of 4 Wing PDC Drill Bit from China, renowned for delivering high-performance drilling solutions. We specialize in crafting robust and efficient 4 wing PDC drill bits engineered to excel in diverse geological conditions. Our commitment to quality ensures each bit is meticulously designed and manufactured using premium materials and advanced processes. We focus on optimizing every aspect, from cutter placement to hydraulic efficiency, providing drill bits that deliver superior rates of penetration, exceptional durability, and extended tool life. Partner with Sinodrills for reliable, cost-effective, and top-tier 4 wing PDC drill bits that enhance your drilling operations.
Various 4 Wing PDC Drill Bit

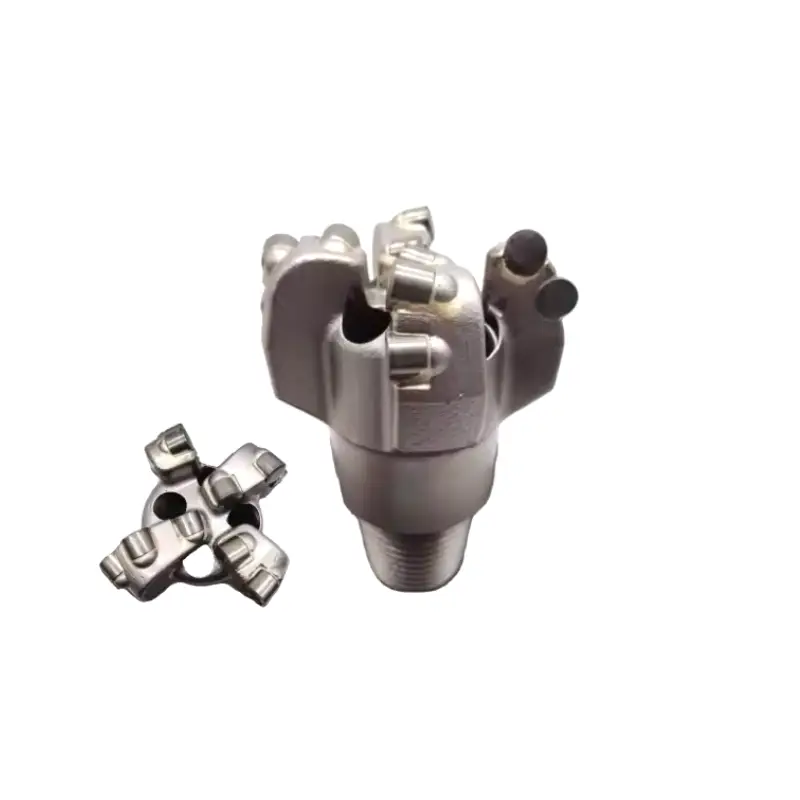

4-Wing Spiral PDC Drill Bit for Deep Well and Geothermal Drilling
Engineered specifically for the demanding conditions of deep well and geothermal drilling, the 4-wing spiral PDC drill bit offers superior performance and longevity. Its unique spiral blade design facilitates rapid and efficient removal of cuttings, preventing recirculation and maintaining a clean borehole. The bit’s enhanced hydraulic flow paths ensure optimal cooling of the PDC cutters, extending their lifespan even in high-temperature environments. With its robust construction and specialized geometry, this bit delivers exceptional rate of penetration (ROP) and directional control, making it an ideal choice for navigating complex geological formations encountered in deep and high-temperature drilling operations.

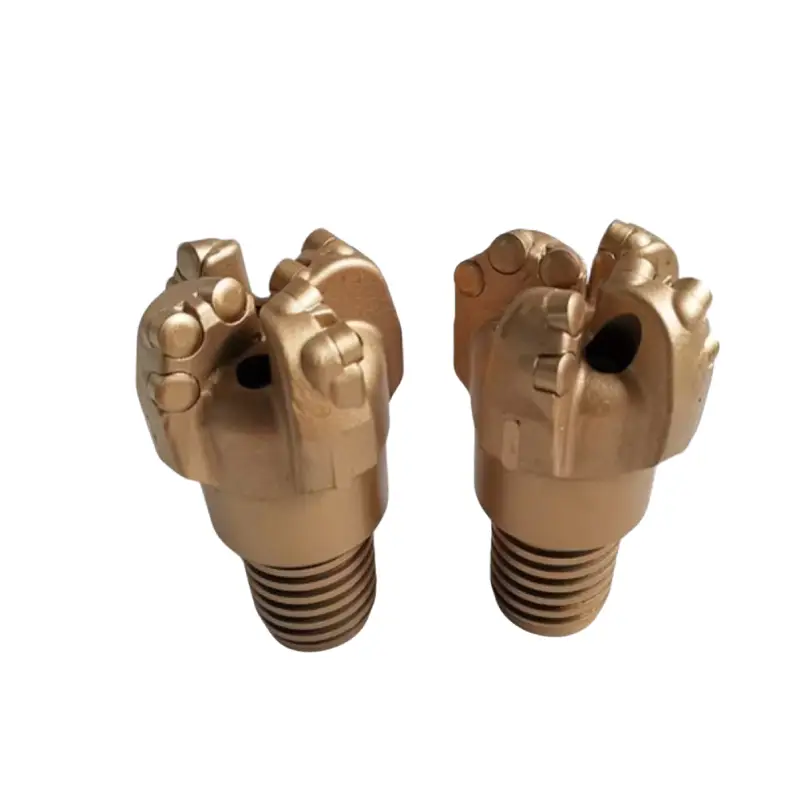

Reinforced 4-wing Diamond Composite PDC Drill Bit
The reinforced 4-wing diamond composite PDC drill bit represents a significant advancement in drilling technology, offering unparalleled strength and wear resistance. This bit incorporates advanced diamond composite materials in strategic areas, enhancing the durability of the PDC cutters and the overall bit body. The reinforcement mitigates premature wear and chipping, allowing for extended drilling runs in abrasive and hard rock formations. Its robust design minimizes torque fluctuations and improves stability, leading to smoother drilling operations and reduced drilling costs. This bit is an excellent choice for projects requiring maximum endurance and performance in challenging geological environments.

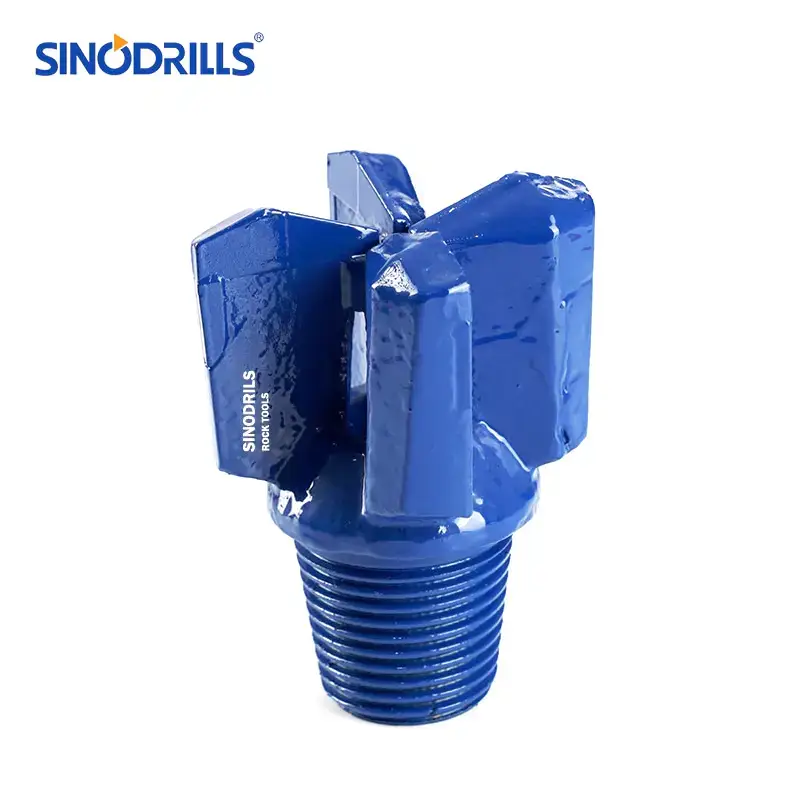

3 Wing 4 Wing 5 Wing Water Well Drilling Drag Bit
This series of drag bits, available in 3, 4, or 5-wing configurations, is specifically designed for efficient water well drilling in softer to medium-hard formations. These bits utilize robust carbide inserts on their wings to scrape and shear the formation, providing effective penetration at relatively lower weights on bit. The different wing counts allow for customization based on formation type and desired drilling parameters; fewer wings for softer formations and more for slightly harder consolidated ground. Their simple yet effective design makes them economical and reliable for shallow to medium depth water well applications, offering good drilling speeds and easy maintenance.

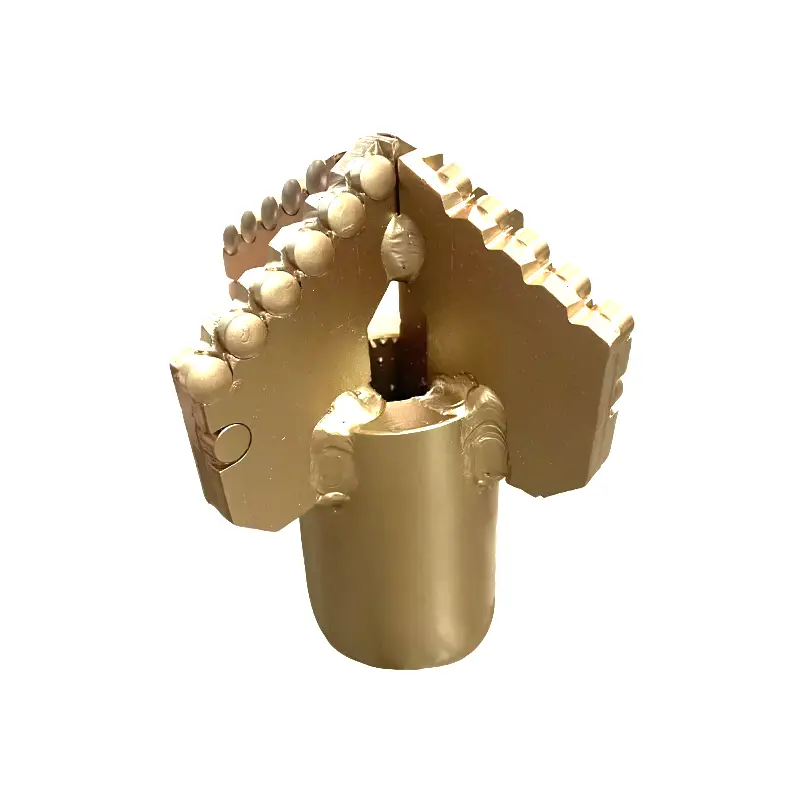

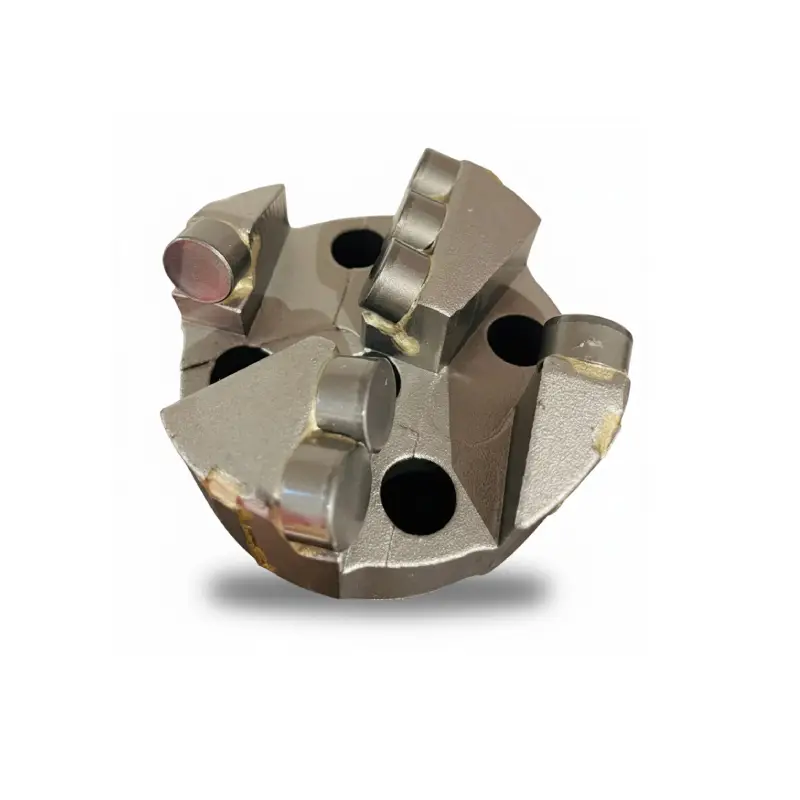

Four-wing PDC concave drill Bit
The four-wing PDC concave drill bit is engineered to provide superior stability and directional control, particularly in formations prone to deviation. Its distinctive concave face design, coupled with four robust PDC cutters, promotes self-centering and helps maintain a straight bore. This geometry also aids in efficient chip evacuation and minimizes bit whirl, contributing to smoother drilling and extended bit life. Ideal for applications where borehold quality and accuracy are paramount, this bit excels in maintaining a consistent trajectory while achieving competitive penetration rates in a variety of rock types.

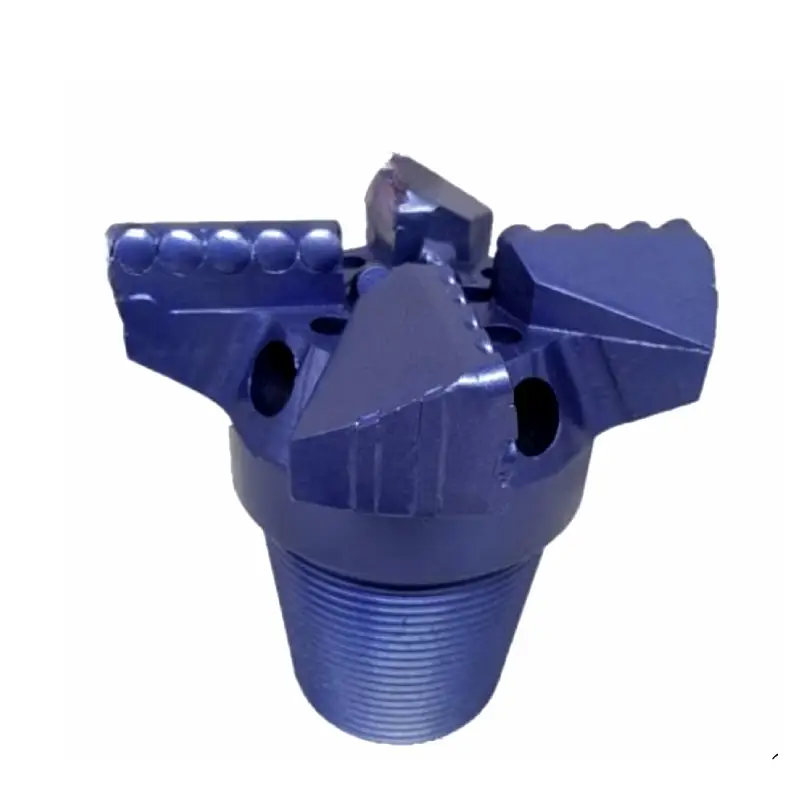

4 Wings Diamond Head PDC Drill Bit for Well Drilling
This 4-wing diamond head PDC drill bit is a high-performance solution for general well drilling applications. It features a concentrated diamond-enhanced head that provides superior abrasion resistance and cutting efficiency. The four wings are strategically designed to maximize chip removal and maintain excellent stability during drilling. This bit is particularly effective in formations ranging from medium to hard, offering a good balance of penetration rate and durability. Its robust construction ensures long operational life, making it a cost-effective choice for various drilling projects, from oil and gas exploration to geothermal and water well installations.

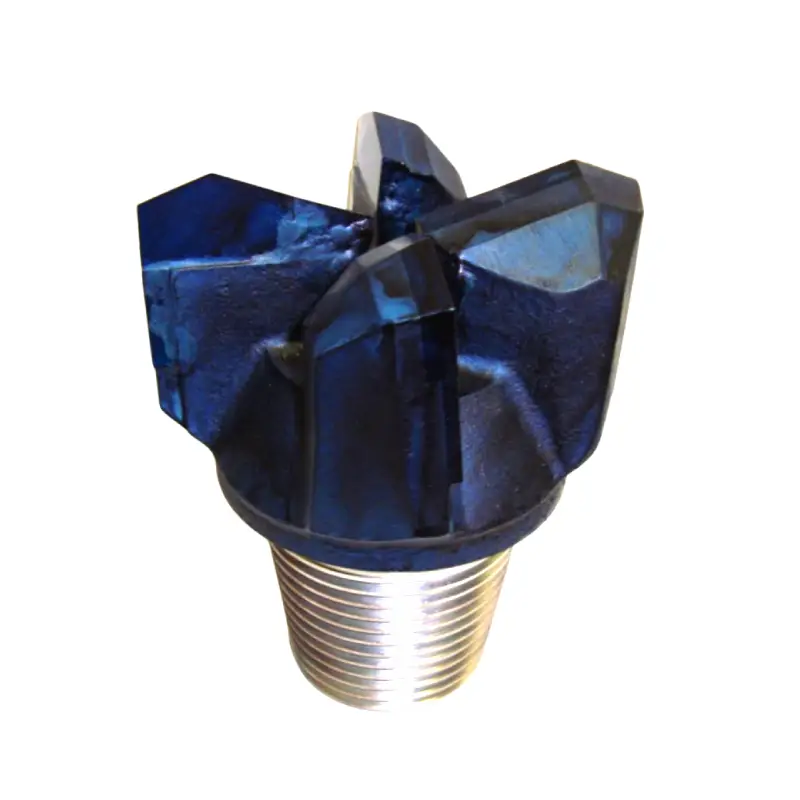

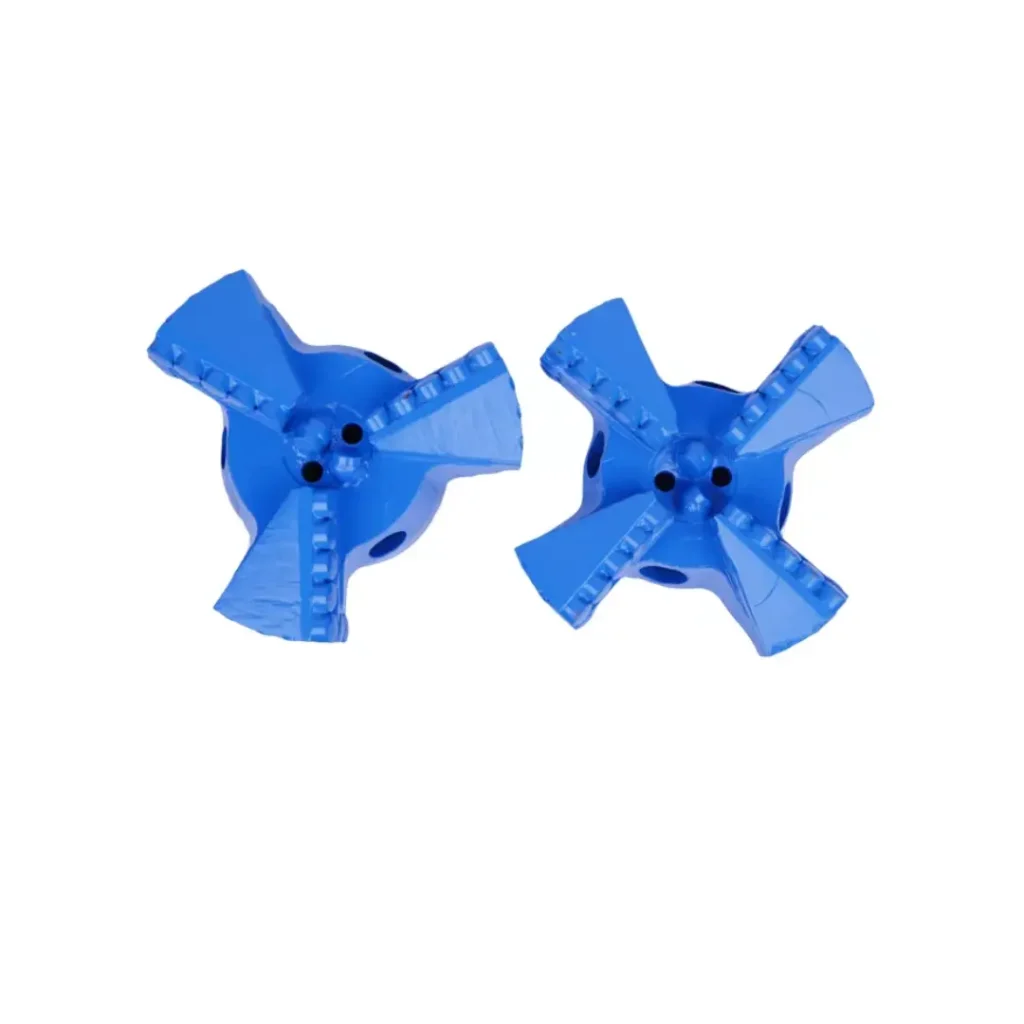

Wholesale 6-inch PDC Drag Bit 4 wings for hard well drilling Manufacturers
This 6″ PDC drag bit with 4 blades is manufactured for the needs of hardhole drilling and is available for the wholesale market. The bit features a rugged 4-blade construction with high-quality PDC segments to efficiently penetrate both consolidated and abrasive formations. The manufacturer focused on optimizing the blade geometry and PDC segment placement to ensure strong cutting forces and longer bit life. For drilling contractors who need a durable, reliable bit for challenging drilling projects, this wholesale product offers a cost-effective solution with an emphasis on consistent performance and value.
Customize Your Desired 4 Wing PDC Drill Bit
Balanced Profile for the 4 Wing PDC Drill Bit
The profile of a 4 Wing PDC Drill Bit is crucial for its stability and directional control. Typically, these bits feature a balanced crown profile that transitions smoothly from the pilot area to the gauge. This design minimizes torque fluctuations and reduces bit whirl, leading to smoother drilling and less wear on the drill string components. The specific curvature ensures constant contact with the formation, allowing for consistent penetration rates while maintaining directional accuracy, which is vital for both vertical and steerable drilling applications. This balanced approach contributes significantly to overall drilling efficiency and wellbore quality.
Optimized PDC Cutter Placement on 4 Wing Bits
The strategic arrangement of PDC cutters on a 4 Wing PDC Drill Bit face is fundamental to its cutting efficiency. With four robust blades, designers can optimize cutter density and placement to ensure maximum rock removal and effective load distribution across the bit face. This setup allows for aggressive cutting angles that enhance penetration rates in softer formations, while also providing enough redundancy and support to handle harder interbeds. The spacing between cutters on the four wings also facilitates better cleaning action, preventing cutter loading and ensuring the diamond elements are continuously engaged with fresh rock.
Efficient Hydraulic System for 4 Wing PDC Drill Bits
An efficient hydraulic system is critical to any drill bit, and the four-wing PDC drill bit is designed with this in mind. The four wings form an ample flute area, which can effectively remove cuttings from the drill bit face. With the carefully placed nozzles on each wing, the drilling fluid can be precisely directed to cool the PDC cutters and clean the bottom of the hole. This optimal fluid flow prevents drill bit balling, reduces cuttings re-grinding, and ensures that the cutters remain cool, significantly extending their service life and maintaining a high penetration rate.
Robust Material Construction of 4 Wing PDC Drill Bits

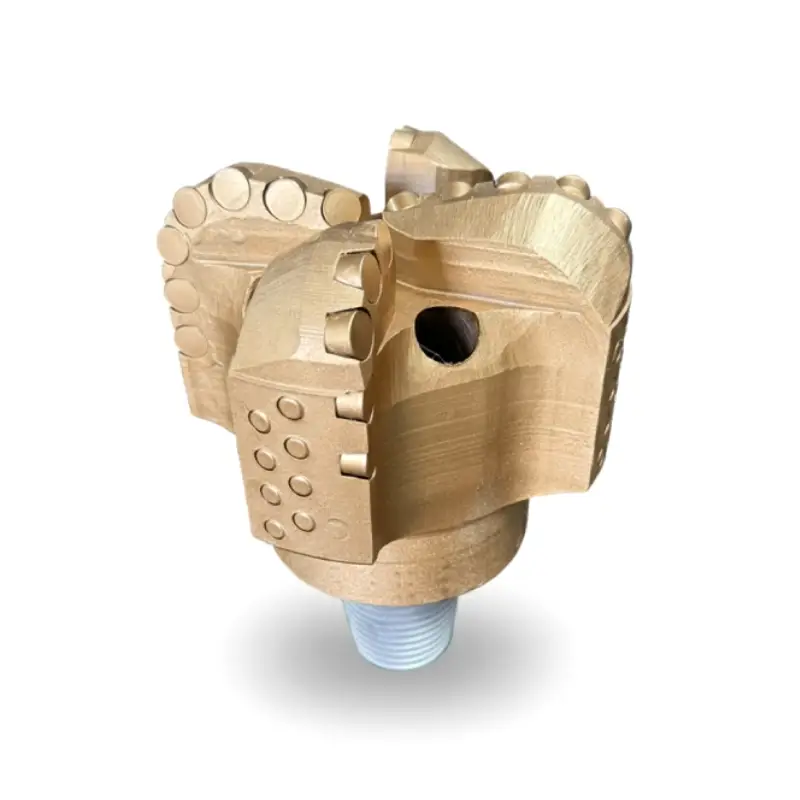

The durability of a four-wing PDC drill bit depends largely on its material structure, which is usually a matrix or steel body. Matrix drill bits are made of tungsten carbide powder infiltrated with a binder, which has excellent resistance to erosion and abrasive wear, making them ideal for highly abrasive formations. Steel-body drill bits are machined from high-strength alloy steel and have excellent toughness and ductility, making them more resistant to impact damage and easier to repair. The drill body material of the four-wing PDC drill bit is carefully selected based on the expected drilling conditions to maximize drill bit life and improve performance.
What is a 4 Wing PDC Drill Bit, and how does it differ from other PDC bits?
A 4 Wing PDC Drill Bit is a type of fixed-cutter drill bit characterized by having four main blades that extend from the bit body, each populated with Polycrystalline Diamond Compact (PDC) cutters. This design offers a balanced approach, distinguishing it from bits with fewer (e.g., 3-wing) or more (e.g., 6-wing) blades. While 3-wing bits might be more aggressive for softer formations, and 6-wing bits offer greater stability for harder ones, the 4 wing PDC drill bit provides a versatile balance of penetration rate, stability, and durability, making it suitable for a wide range of medium-hard to hard formations.
Send Your Inquiry Now
What are the primary advantages of using a 4 Wing PDC Drill Bit?
The 4 Wing PDC Drill Bit offers several key advantages that contribute to efficient drilling. Its design provides excellent stability, reducing bit whirl and vibration, which in turn leads to smoother drilling and extended bit life. The four blades allow for optimized cutter placement, ensuring effective rock shearing and high rates of penetration (ROP) in appropriate formations. Furthermore, the ample junk slot area created by the four blades facilitates superior cuttings evacuation, preventing bit balling and maintaining continuous drilling performance. This combination of stability, ROP, and cleaning efficiency makes it a highly reliable choice.
Send Your Inquiry Now
Can a 4 Wing PDC Drill Bit be used for directional drilling?
Yes, a 4 Wing PDC Drill Bit is often used for directional drilling applications. Its inherent stability, stemming from the four-blade design, helps in maintaining the desired wellbore trajectory and reducing unwanted side-walking or spiraling. While some directional applications might favor bits with specific long profiles for maximum steerability, the 4 wing PDC drill bit provides a good balance of ROP and directional control, making it a versatile option for building curves, maintaining tangent sections, and navigating complex well paths. Bit manufacturers often offer specialized designs within the 4-wing category tailored for specific directional challenges.
Send Your Inquiry Now
What does PDC stand for in drill bits?
In drill bits, PDC stands for Polycrystalline Diamond Compact. These bits get their name from the cutting elements attached to their body. A PDC cutter is a super-hard, synthetic diamond layer bonded to a tungsten carbide substrate.
Unlike traditional roller cone bits that crush rock, PDC drill bits operate by shearing or scraping the rock formation. This design makes them incredibly efficient and durable, leading to faster drilling speeds, longer bit life, and reduced operational costs. They are widely used in the oil and gas, mining, and geothermal industries for drilling through various rock formations, especially soft to medium-hard ones.
Send Your Inquiry Now
All-in-one 4 Wing PDC Drill Bit Solutions for Your Project
We provide all-in-one taper Drill Bit to simplify your drilling projects. Our extensive range offers high-quality bits suitable for various rock conditions and drilling machines, ensuring optimal performance and durability. From material selection to custom lengths and specialized coatings, we tailor solutions to meet your exact needs, maximizing productivity and reducing downtime for your specific application.
