Understanding drill pipe weight is fundamental to any successful drilling operation, influencing everything from rig selection to hydraulic calculations and well design. It’s not a static number, but rather a crucial variable determined by various specifications of the pipe itself.
This guide will demystify the complexities of drill pipe weight, exploring the key factors that contribute to it and why accurate weight assessment is critical for safe and efficient drilling, impacting load capacity and overall project costs.
What is Drill Pipe Weight
Recommended Drill Pipes
Drill pipe weight refers to the mass per unit length of a drill pipe, typically expressed in pounds per foot (lbs/ft) or kilograms per meter (kg/m).
The weight of drill pipe is a critical parameter influenced by several factors, including the pipe’s outer diameter (OD), wall thickness, and the grade of steel or material it’s made from.
It’s not just a simple specification but a crucial factor in designing and executing drilling operations, as it directly impacts the overall weight of the drill string, the load on the drilling rig’s hoisting system, the hydraulics of the drilling fluid, and the overall stability and efficiency of the drilling process.

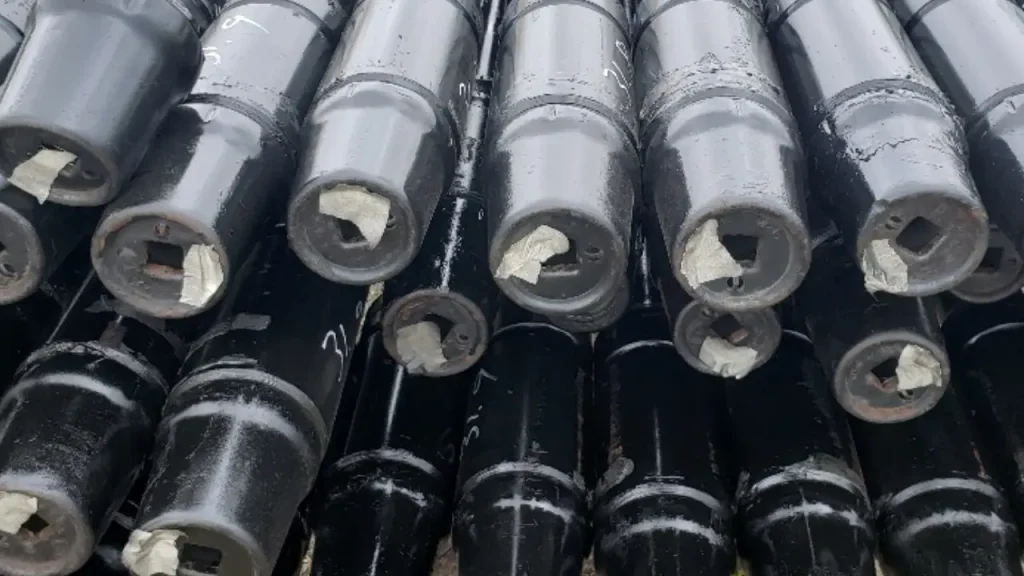

How Much Does Drill Pipe Weigh
The weight of a drill pipe is not a fixed value but varies significantly based on several key characteristics. Understanding these factors is essential for accurate load calculations, optimizing drilling hydraulics, and selecting the appropriate drill string components for any given well design.
The overall weight per foot of a drill pipe, or an entire drill string, directly impacts the capacity requirements of the rig’s hoisting system, the horsepower needed for circulation, and the stresses on the pipe itself. Therefore, careful consideration of these factors is paramount.
Outer Diameter (OD)
The outer diameter (OD) is a primary determinant of drill pipe weight. A larger OD means more steel material in the pipe’s cross-section, which directly translates to a heavier pipe. This larger diameter also affects the annular space in the wellbore, influencing drilling fluid flow dynamics and cuttings transport efficiency during drilling operations.
For example, a 5-inch OD drill pipe will inherently weigh more per foot than a 3.5-inch OD drill pipe, assuming similar wall thickness and material grade. The choice of OD is often dictated by the size of the wellbore, the required fluid circulation rates, and the overall strength needed for the drilling application.
Wall Thickness
The wall thickness of the drill pipe is another critical factor influencing its weight. A thicker wall means a greater volume of steel per unit length, thus increasing the pipe’s weight. This added material also significantly enhances the pipe’s strength, including its resistance to burst, collapse, and torsional stresses.
While a thicker wall adds weight, it also provides increased durability and resistance to wear and tear, which can extend the pipe’s lifespan in abrasive environments. However, excessively thick walls can reduce the pipe’s inner diameter, potentially restricting drilling fluid flow and increasing pumping requirements.
Material Grade
The specific grade of steel or other material used in the drill pipe’s manufacturing significantly impacts its weight. Different steel alloys have varying densities, although the variation is often less pronounced than that caused by dimensional changes. More importantly, higher-grade steels (e.g., S-135 compared to E-75) offer increased yield strength and tensile strength without necessarily increasing the pipe’s dimensions.
While the density difference between various steel grades might be minor, the ability to achieve higher strength with potentially thinner walls (and thus lighter weight for a given strength requirement) is a key consideration. This allows engineers to optimize the strength-to-weight ratio for specific drilling challenges, balancing performance with operational limits.

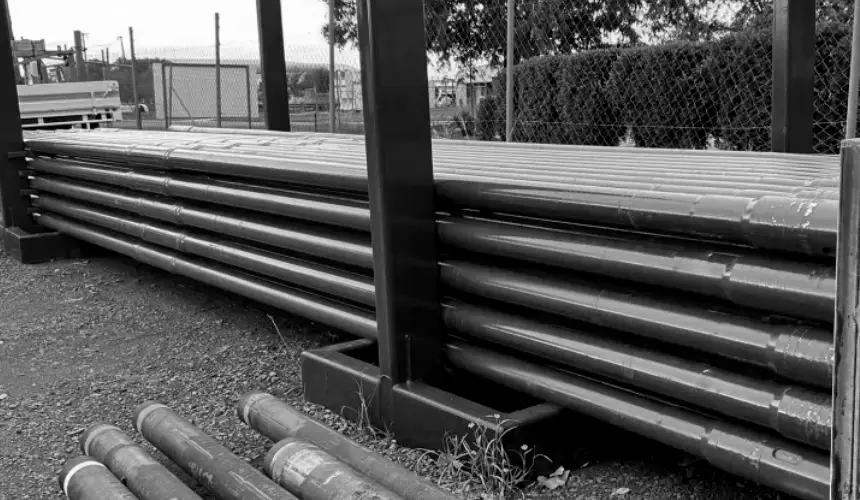

How to Measure Drill Pipe Weight?
To accurately determine drill pipe weight, a crucial factor for drilling efficiency and safety, a systematic approach involving direct measurement and calculation is required. This process ensures that the actual weight aligns with design specifications and operational requirements, preventing potential issues during drilling.
Precise measurement of drill pipe components is vital as discrepancies can lead to significant problems, impacting the rig’s load capacity, hydraulic performance, and overall well control. Following these steps helps guarantee optimal performance and longevity of your drilling assets.

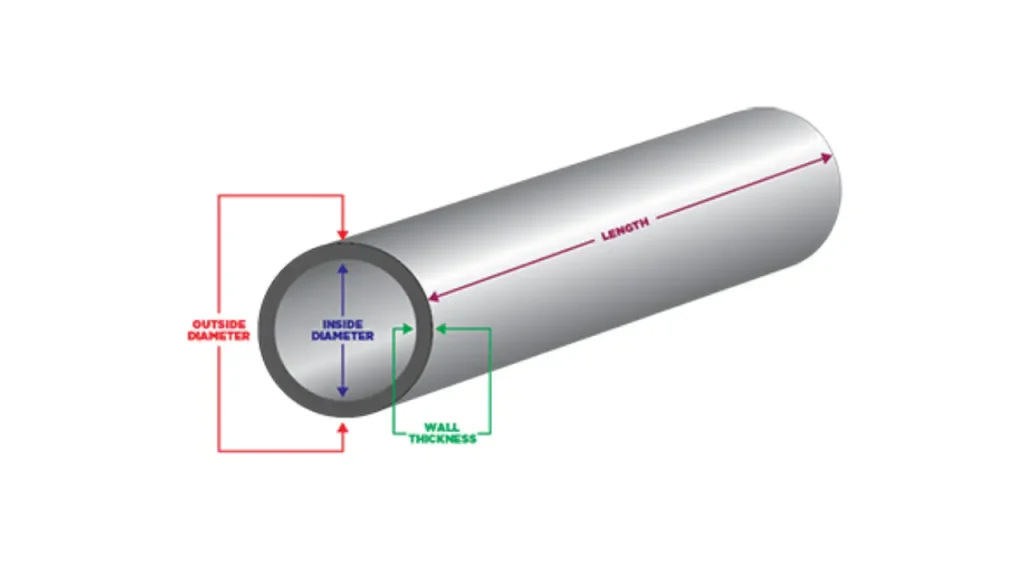

Step 1: Obtain the Pipe’s Outer Diameter (OD)
The Outer Diameter (OD) is the external measurement of the pipe body. This fundamental dimension is usually stamped on the pipe or found in specification sheets. It directly influences the pipe’s cross-sectional area, meaning a larger OD inherently results in a heavier pipe due to the increased volume of steel per unit length, impacting overall string weight significantly.
Accurate OD measurement is crucial for calculating the pipe’s volume, which is a primary determinant of its weight. Ensure that any coatings or wear are accounted for if measuring an in-service pipe to avoid discrepancies, as even slight variations can alter the calculated weight per foot.
Step 2: Determine Wall Thickness
Wall thickness is the distance between the inner and outer surfaces of the pipe. This measurement can be obtained from manufacturer specifications or by using specialized ultrasonic thickness gauges. A greater wall thickness means more material, directly contributing to a heavier pipe and significantly enhancing its structural integrity.
This dimension is critical for determining the pipe’s resistance to internal pressure (burst strength) and external pressure (collapse strength). Accurate wall thickness data ensures the pipe can withstand the stresses encountered downhole without failure, directly impacting both safety and operational efficiency during drilling.
Step 3: Identify the Steel Grade and Density
The steel grade (e.g., E-75, X-95, G-105, S-135) specifies the material’s strength properties, but for weight calculation, its density is key. While most common drill pipe steels have similar densities, using the precise density value for the specific grade ensures the most accurate weight calculation, reflecting the true mass of the pipe.
Consult manufacturer specifications or industry standards (like API 5DP) for the exact density. This factor, combined with the pipe’s dimensions, allows for the precise calculation of the pipe body’s weight per foot or meter, providing the foundational element for overall drill string weight.
Step 4: Account for Tool Joint Weight and Length
Tool joints are the threaded connections at each end of the drill pipe, which are typically heavier and thicker than the pipe body. Their dimensions (OD, ID, and length) must be considered, as they significantly contribute to the overall weight of each drill pipe joint. The total length of the pin and box ends impacts the effective weight distribution.
Manufacturers often provide a “nominal weight per foot” that already incorporates the average weight contribution of the tool joints. However, for highly precise calculations, especially in long drill strings, understanding the specific weight of the tool joints is crucial for accurate load planning and hydraulic modeling.
Step 5: Calculate Nominal Weight Per Foot
The nominal weight per foot is usually the manufacturer’s stated average weight, which simplifies calculations for the entire drill string. This value is derived by averaging the weight of the pipe body and the heavier tool joints over the standard length of a pipe joint. It is widely used in drilling programs.
This calculated or provided nominal weight is vital for planning operations, as it directly influences critical parameters such as hook load capacity of the rig, the buoyancy effects in drilling fluid, and the total effective weight on the drill bit, all impacting drilling efficiency and safety.

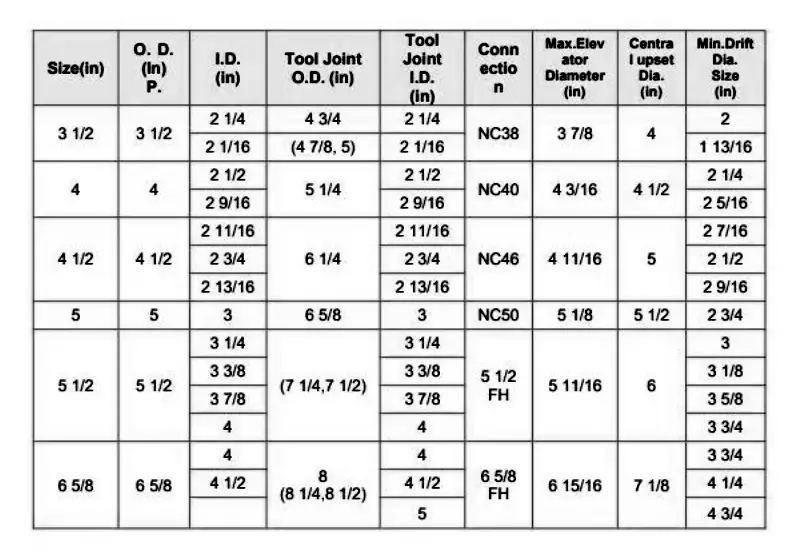

Drill Pipe Weight Chart
Understanding drill pipe weight is crucial for rig capacity, hydraulics, and overall drilling efficiency.
A drill pipe weight chart provides quick reference data, detailing the nominal weight per foot for various pipe sizes, grades, and wall thicknesses. This allows for precise calculations and informed decision-making.
Drill Pipe Weight Chart
- Nominal Weight Per Foot: This is the standard weight used for calculations and is usually provided by manufacturers. It’s an average weight that accounts for the pipe body and tool joints.
- Outer Diameter (OD): The measurement across the pipe’s exterior. Larger ODs generally correspond to heavier pipes.
- Wall Thickness/Weight Per Foot: Different wall thicknesses for the same OD will result in different weights per foot and varying strength ratings.
- Steel Grade: Higher strength steel grades (e.g., S-135) can influence the ultimate strength-to-weight ratio, although the density difference between common grades is minimal.
- Tool Joint Contribution: While the chart usually provides a nominal weight per foot for the entire joint, the heavier tool joints are factored into this average.
Drill Pipe Weight Chart (Common Sizes)
| Nominal OD (inches) | Typical Weight (lbs/ft) | Typical Weight (kg/m) |
| 2 3/8 | 4.85 – 6.65 | 7.22 – 9.89 |
| 2 7/8 | 6.40 – 10.40 | 9.52 – 15.48 |
| 3 1/2 | 9.50 – 15.50 | 14.14 – 23.07 |
| 4 | 11.85 – 16.60 | 17.63 – 24.71 |
| 4 1/2 | 13.75 – 20.00 | 20.46 – 29.76 |
| 5 | 16.20 – 25.00 | 24.11 – 37.23 |
| 5 1/2 | 19.50 – 27.80 | 29.02 – 41.37 |
| 5 7/8 | 22.20 – 32.30 | 33.04 – 48.06 |

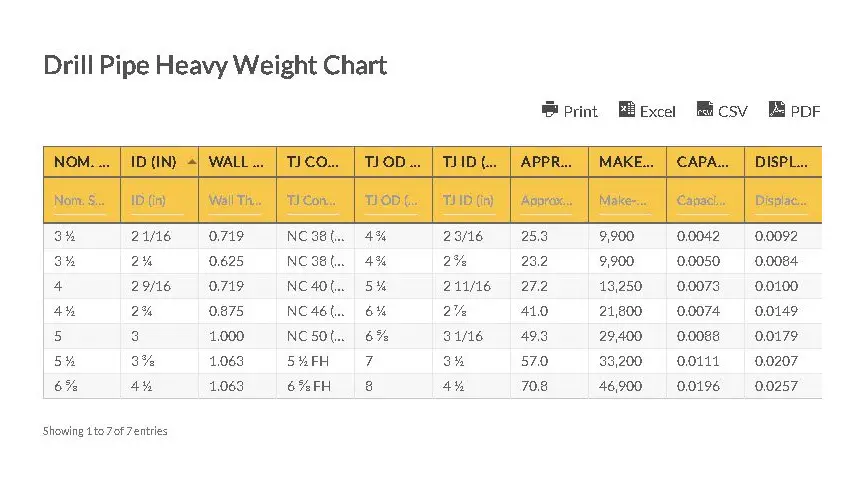

Heavy Weight Drill Pipe Specifications

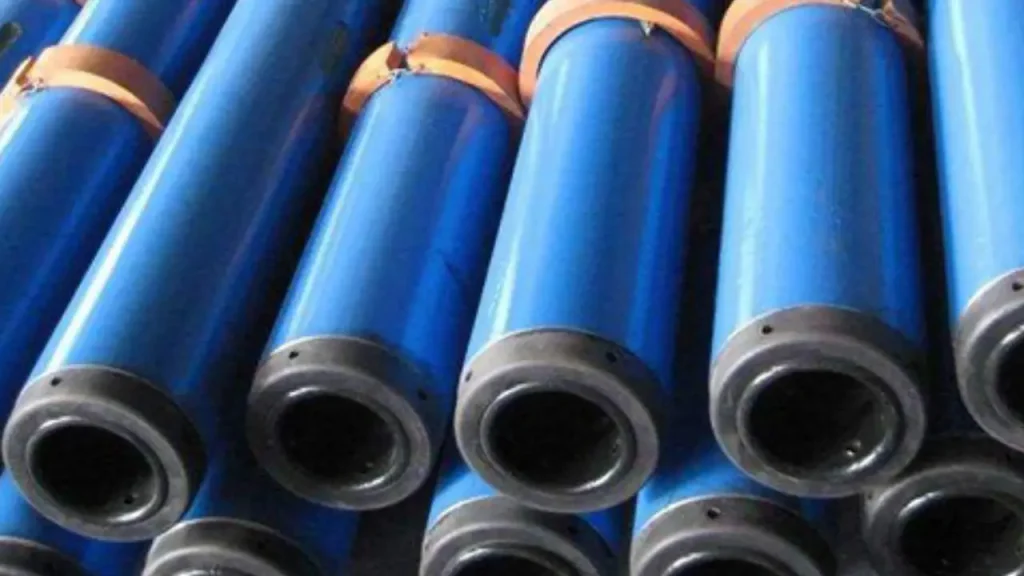

Heavy Weight Drill Pipe (HWDP) is a crucial component in the drill string, designed to provide a transitional weight between the flexible drill pipe and the rigid drill collars. It primarily contributes to maintaining constant weight on the bit (WOB), especially in directional and horizontal drilling, while also reducing fatigue failures often experienced at the interface of standard drill pipe and collars. Its increased wall thickness and longer upset areas make it more flexible than drill collars but heavier and stiffer than conventional drill pipe.
HWDP comes in various specifications to suit different drilling applications and wellbore conditions. Key characteristics include its outer diameter (OD), inner diameter (ID), wall thickness, connection type, and material grade. The seamless steel construction ensures durability, and specialized tool joints with varying upset designs (internal, external, or internal-external) optimize strength and flow. These specifications are carefully selected to balance weight contribution, flexibility, and resistance to fatigue and wear.
Heavy Weight Drill Pipe (HWDP) Specifications (Common)
| Specification | Description | Common Range/Types |
| Outer Diameter (OD) | External diameter of the pipe body. | 3 1/2″ to 6 5/8″ |
| Inner Diameter (ID) | Internal diameter of the pipe body. | Varies based on OD and wall thickness |
| Wall Thickness | Thickness of the pipe’s steel wall. | Heavier than standard drill pipe, e.g., 0.368″ – 0.750″ |
| Weight (Nominal) | Weight per foot or meter of the pipe. | 25 lbs/ft to 60 lbs/ft (approx.) |
| Length | Standard length of each HWDP joint. | Range 1 (18-22 ft), Range 2 (27-30 ft), Range 3 (38-45 ft) |
| Connection Type | Threaded connections for joining pipe sections. | NC (Number Connection) series, FH (Full Hole) |
| Upset Type | Thicker section near tool joints for increased strength. | Internal Upset (IU), External Upset (EU), Internal-External Upset (IEU) |
| Material Grade | Steel alloy grade determining strength and ductility. | E-75, X-95, G-105, S-135 (though often specific HWDP grades) |
| Hardbanding | Wear-resistant material applied to tool joints for extended life. | Various types (e.g., tungsten carbide, chrome carbide) |
Conclusion
In conclusion, the weight of a drill pipe is a multifaceted parameter influenced by its outer diameter, wall thickness, and material grade. Accurately understanding and calculating this weight is indispensable for effective drilling program design, ensuring proper rig sizing, managing hook loads, and optimizing drilling fluid hydraulics.
Mastering the nuances of drill pipe weight directly translates into safer operations, enhanced drilling efficiency, and significant cost savings over the lifespan of a drilling project. It allows engineers to predict and manage the forces exerted on the drilling system with precision.
For reliable and accurately specified drill pipes to support your operations, consider exploring and getting wholesale drill pipes from our Sinodrills. We offer a range of products designed to meet diverse drilling weight requirements.
