We have a new customer who tested our newest generation of GSE DHD350 hammer, and the customer is very satisfied with our DTH tools. Till now, the GSE DHD350 hammer has drilled more than 4900 meters in granite without replacing the Outer tube. Below are the specifications of the testing report:

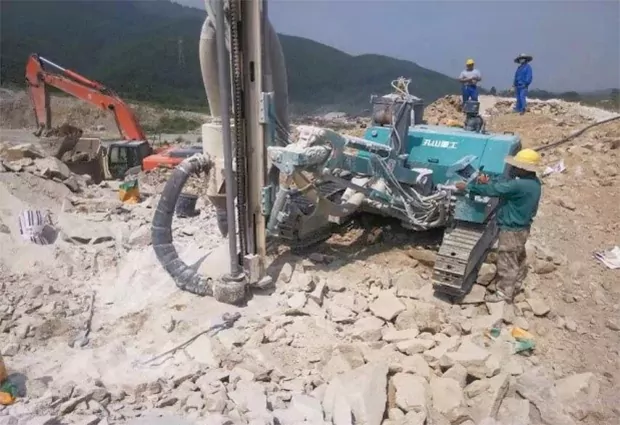

Drill machine: KS-668 Hydraulic DTH drill machine, it is made by Kongshan China. The maximum rotation speed is 70 Rpm, and the maximum torque is 3680 N · m.

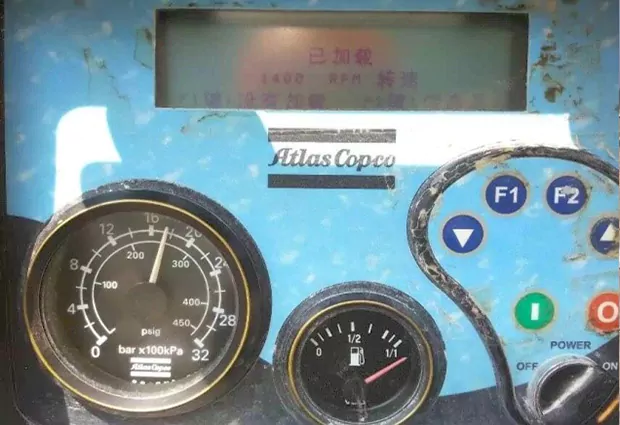

Working pressure: The working pressure is 18 bar.
Rock condition: Granite

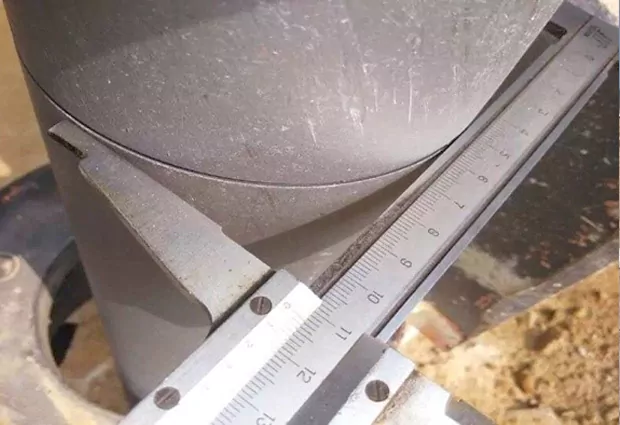

DTH hammer: GSE DHD350, Outer diameter is 126mm, the recommended wear sleeve discard diameter is 114mm. The current diameter is 113mm

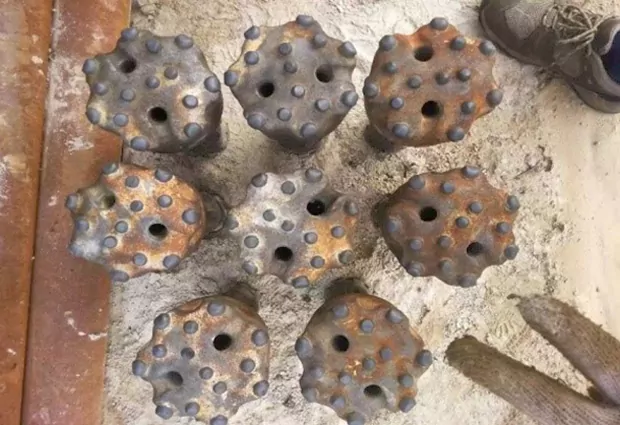

DTH bit: DHD350Ø140mm DTH bits, Flat front, Spherical buttons, 8x17mm gauge buttons, 7x14mm front buttons, 2 flushing holes, 35°gauge button angle.
As a kind of hard rock, granite wears the rock drilling tools very seriously. Therefore, the quality requirements of the drilling tools are also higher. Recently, our new generation of GSE DHD350 hammer has been well-received by customers during its use. Our hammer completed 4900 meters of granite drilling without replacing the outer tube, and the working pressure was 18 bar. Once again, it proves the excellent performance of our products.
