Types of Drag Bits: Choosing the Right Bit for Your Drilling Needs

Drag bits are essential tools in various drilling operations, from water well drilling to mining and construction. Selecting the appropriate drag bit is crucial for efficiency and cost-effectiveness. This blog explores the different types of drag bits available.

Understanding the unique characteristics and applications of each drag bit type is key to optimizing your drilling performance. We’ll delve into their designs, materials, and how to choose the right bit for specific geological conditions and project requirements.

What are Drag Bits

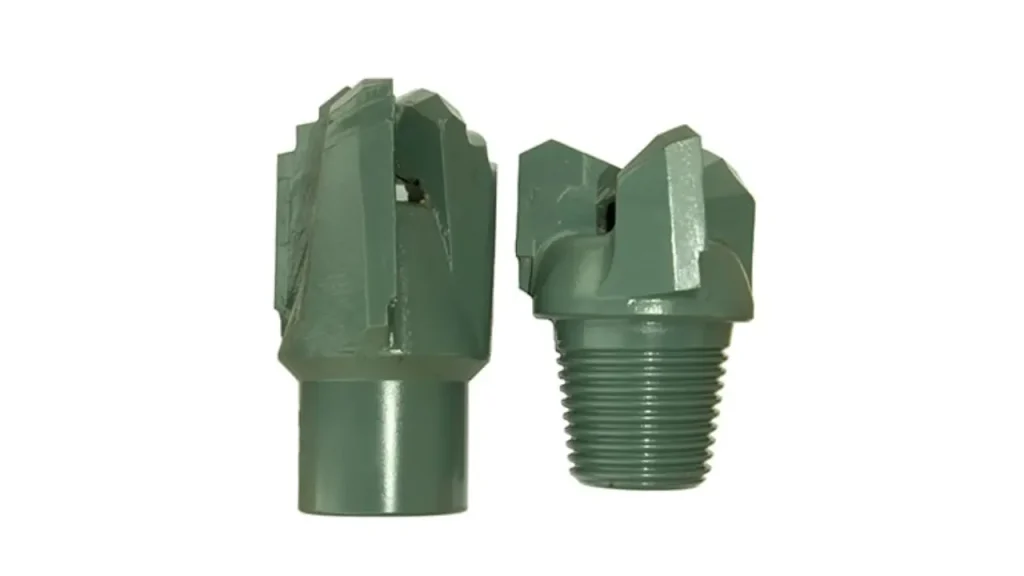

A drag bit is a type of drill bit specifically designed for drilling in soft, unconsolidated formations such as sand, clay, shale, and some soft rock.

Unlike rotary bits with moving parts, drag bits utilize fixed blades, often tipped with tungsten carbide, to shear and scrape away the formation material.

These drag bits are commonly employed in applications like water well drilling, mining, geothermal exploration, and environmental drilling, particularly for creating pilot holes where the generated cuttings are easier to log and manage. While effective in soft ground, they are not suitable for drilling through coarse gravel or hard rock formations.

Types of Drag Bits

Drag bits come in various designs, each tailored for specific drilling conditions and ground types. Understanding the distinctions between them is key to optimizing drilling performance and ensuring project success.

Here are some widely used types of drag bits that we can make in the following:

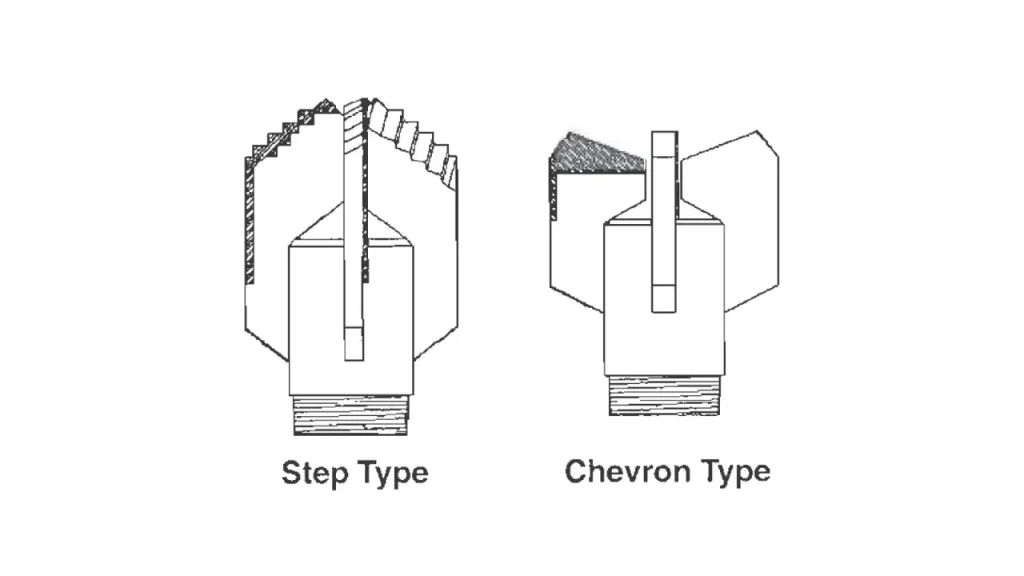

Stepped Drag Bits

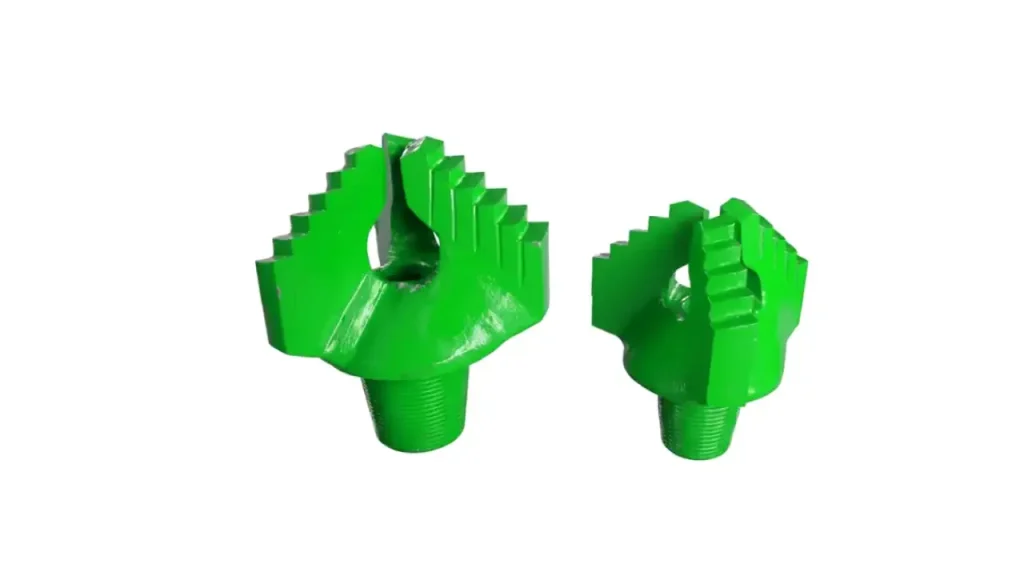

Stepped drag bits are characterized by their stepped profile, where each cutting blade is set at a different depth, creating a series of cutting edges. This design allows for a more aggressive cutting action and efficient material removal.

Features: They typically have multiple blades, often three or four, arranged in a spiral or radial pattern. The steps on the blades are designed to break up and remove cuttings effectively, preventing bit balling in sticky formations. The tungsten carbide inserts are strategically placed on the leading edges of these steps.

Benefits: The stepped design provides excellent penetration rates in soft to medium formations and is highly effective at clearing cuttings. They are less prone to “balling up” in sticky clays and shales, which can be a common issue with other bit types. Their robust construction also contributes to a longer bit life in appropriate conditions.

Uses: Stepped drag bits are widely used for drilling water wells, shallow oil and gas wells, and geotechnical investigations in formations like clay, soft shale, and unconsolidated sands. They are also suitable for various mining applications where soft overburden needs to be drilled.

Chevron Drag Bits

Chevron drag bits derive their name from the V-shaped or chevron pattern of their cutting blades. This unique geometry is designed for optimal fluid flow and efficient cutting in specific formation types.

Features: Chevron bits typically feature two or three wings or blades arranged in a chevron pattern. The angle of the “V” can vary, influencing the aggressiveness of the cut. They often have large junk slots between the blades to facilitate the easy evacuation of cuttings and prevent clogging, especially when drilling with air.

Benefits: The chevron design excels at providing stability and maintaining a straight hole, particularly in formations that might cause other bits to wander. Their large waterways and junk slots contribute to efficient flushing of cuttings, reducing the risk of regrinding and increasing penetration rates. They are also known for their durability.

Uses: Chevron drag bits are highly effective in unconsolidated to semi-consolidated formations, including soft to medium shales, limestones, and sandstones. They are frequently employed in shallow oil and gas drilling, mineral exploration, and environmental drilling where maintaining hole integrity is paramount.

Blade Drag Bits

Blade drag bits, sometimes referred to as fishtail bits, are characterized by their simpler, flatter blade design. They are among the most basic and economical types of drag bits.

Features: These bits typically have two or more flat, fixed blades extending from the bit body. The cutting edges are usually faced with tungsten carbide inserts or hardfacing for improved wear resistance. The blades can be straight or slightly angled, and the junk slots are generally large to allow for good fluid circulation.

Benefits: Blade drag bits are cost-effective and relatively simple to manufacture. They offer good penetration rates in very soft formations and are particularly useful in situations where a large diameter hole is needed quickly. Their straightforward design makes them easy to maintain and repair in the field.

Uses: Blade drag bits are primarily used in very soft, unconsolidated materials such as loose sand, soft clay, and mud. They are common in water well drilling in alluvial deposits, agricultural irrigation projects, and some environmental sampling applications where the ground is known to be very pliable. They are not recommended for any hard or abrasive formations.

How to Choose the Right Drag Bits

Choosing the right drag bit is paramount for drilling efficiency and project success, directly impacting penetration rates, bit life, and overall cost. A careful assessment of several key factors will guide you to the optimal selection. Understanding your drilling environment and operational goals is the first step toward making an informed decision.

Consider the following critical aspects when selecting your drag bit:

• Formation Hardness and Abrasiveness: Different formations require different bit types. For very soft and unconsolidated ground like sand or soft clay, a blade bit might suffice. As formations become progressively harder or more abrasive, such as soft shale or limestone, stepped or chevron bits with more robust carbide inserts and aggressive cutting structures are necessary to ensure effective drilling and prolong bit life.
• Desired Hole Diameter: The size of the hole you need to drill influences the available drag bit designs and their cutting structures. Larger hole diameters may require bits with more blades or specific geometries to ensure efficient cutting and cuttings removal. Ensure the bit size matches your drilling rig’s capabilities and casing requirements for a smooth operation.
• Drilling Fluid/Air Type: The medium used for flushing cuttings—whether water, mud, or air—significantly impacts bit selection. Bits with larger junk slots and optimized waterway designs are better suited for air drilling to prevent regrinding and ensure efficient chip removal. Conversely, specific mud types might necessitate different bit face designs to prevent bit balling and maintain penetration.
• Rig Capabilities and Torque/Weight-on-Bit (WOB): Your drilling rig’s available torque and ability to apply sufficient weight-on-bit are crucial. Some drag bits perform best with higher WOB, while others are more forgiving. Mismatching the bit’s requirements with your rig’s capabilities can lead to poor performance, excessive wear, or even damage to the bit or drilling equipment, hindering progress.

Conclusion

Selecting the optimal drag bit is crucial for efficient and effective drilling. Understanding the different types—stepped, chevron, and blade—and their ideal applications ensures you achieve the best results for your specific geological conditions.

By carefully considering factors like formation hardness, desired hole size, and drilling fluid, you can significantly enhance penetration rates and bit life. This informed decision-making minimizes downtime and optimizes your overall drilling operation.
