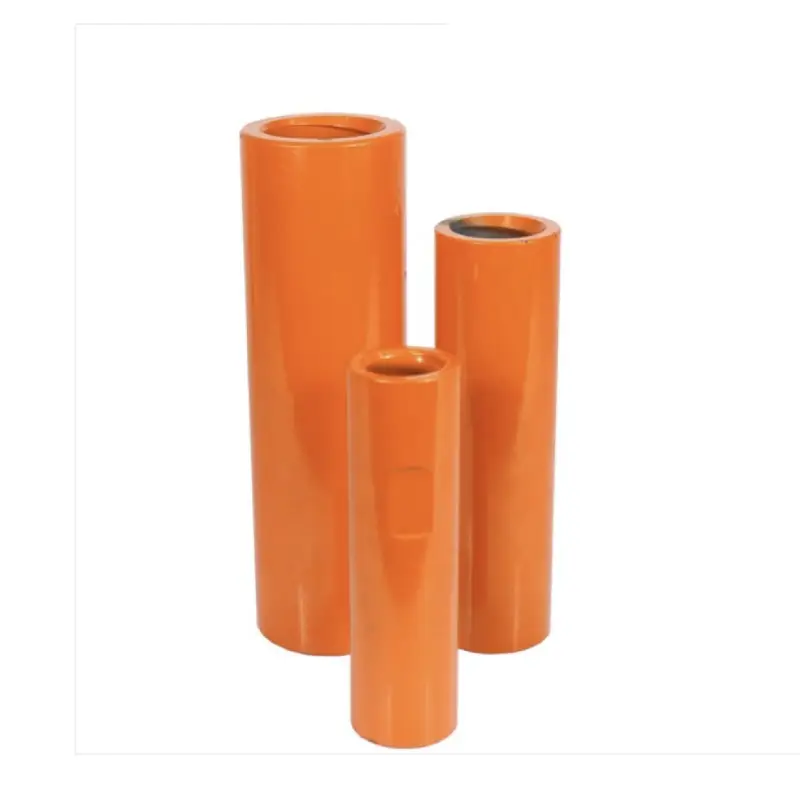

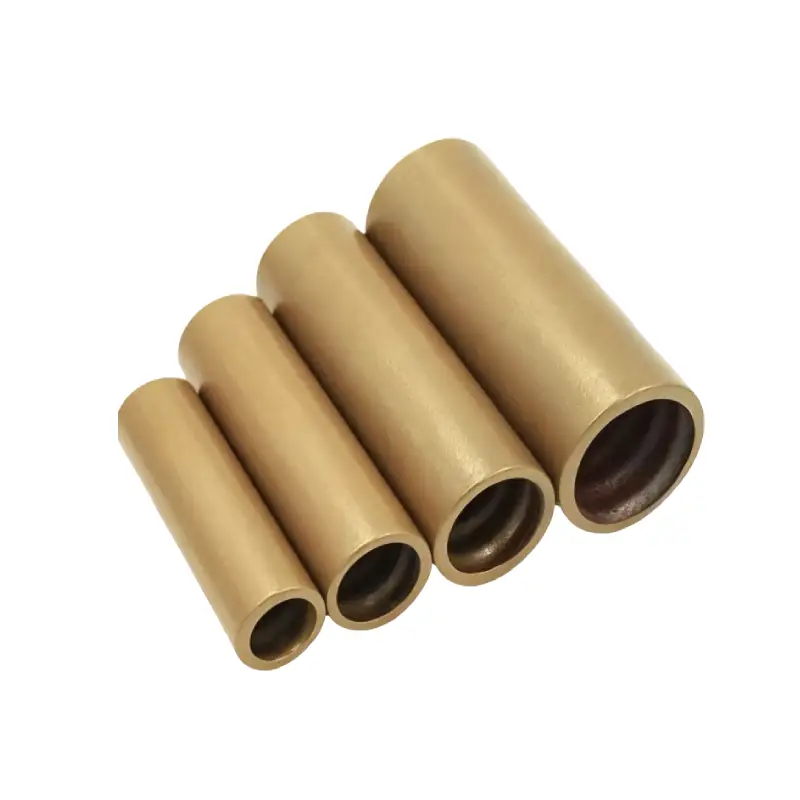

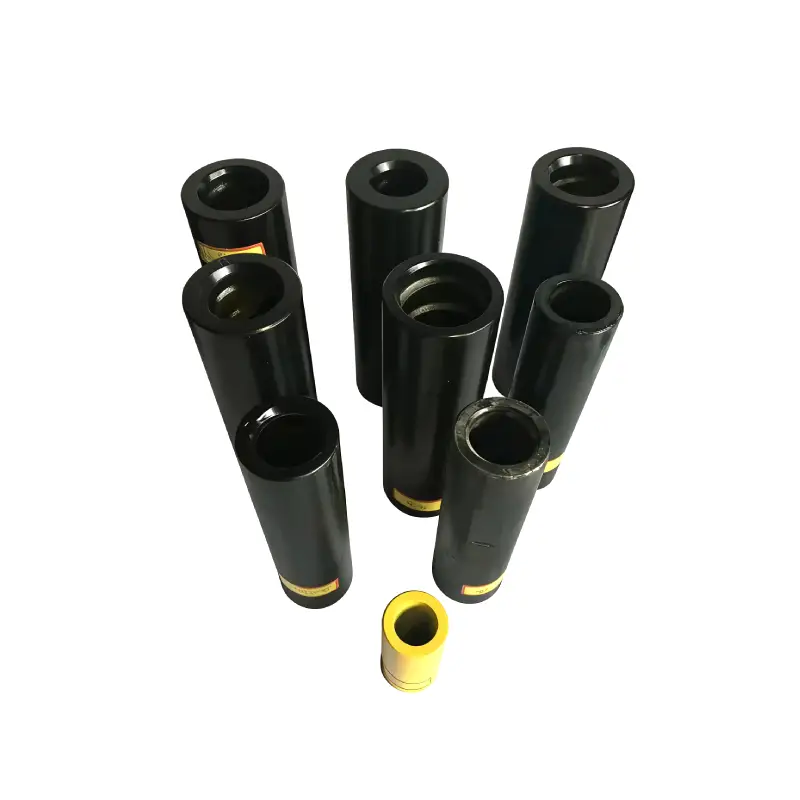

Self Drilling Anchor Couplers

Self-drilling anchor couplings are essential components within a self-drilling anchor system, serving the critical function of extending the overall length of the anchor bar. In many geotechnical and construction applications, a single self-drilling anchor bar may not be long enough to reach the required embedment depth for adequate load transfer or to span the necessary distance for ground support.

The self drilling anchor coupling provides a robust and secure threaded connection point, allowing multiple sections of the hollow anchor bar to be joined together. This modularity is vital for achieving deeper installations, adapting to varying ground conditions encountered during drilling, and facilitating easier handling of shorter, more manageable bar lengths on-site.

Beyond simply extending length, these couplings are engineered to maintain the structural integrity and load-bearing capacity of the entire anchor system. They are typically designed with internal or external threading that precisely matches the corresponding threads on the hollow anchor bars, ensuring a tight and continuous connection.

This continuity is crucial for efficient grout injection through the hollow core of the anchor during or after drilling, as well as for the effective transfer of tensile and compressive loads from the ground into the anchor. The reliability of the self-drilling anchor coupling directly impacts the performance and safety of the entire ground stabilization or structural support system.

Stable quality

Our Self-Drilling Anchor Couplings are manufactured under stringent quality control protocols, ensuring consistent and reliable performance across every unit. This commitment to stable quality means that engineers and contractors can trust in the uniform strength and dimensions of each coupler, leading to predictable outcomes and enhanced safety in all ground support and anchoring applications. This consistency minimizes the risk of on-site issues and contributes to the overall integrity of the installed system.

Thread is compatible with ISO and other international standards

The threading on our Self-Drilling Anchor Couplings is meticulously designed and manufactured to be fully compatible with ISO and other relevant international standards. This universal compatibility simplifies procurement and integration, allowing for seamless connection with a wide range of self-drilling anchor bars from various manufacturers globally. This adherence to established standards ensures reliable thread engagement, optimal load transfer, and broad applicability across diverse international projects.

Precision-manufactured anchors with ≤ 0.25 mm tolerance

Our Self-Drilling Anchor Couplings are produced using advanced manufacturing techniques that achieve exceptionally tight tolerances, specifically maintaining an impressive $\le 0.25$ mm deviation. This high level of precision guarantees a perfect fit between the coupler and the anchor bar, eliminating any significant play or misalignment. Such exactitude is critical for maximizing the load-bearing capacity of the connection, ensuring efficient grout injection, and contributing to the long-term stability and performance of the entire self-drilling anchor system.

Good mechanical performance

The Self-Drilling Anchor Couplings exhibit excellent mechanical performance, characterized by high tensile strength, yield strength, and fatigue resistance. These superior mechanical properties ensure that the couplers can withstand the demanding forces encountered during drilling, installation, and long-term service in various ground conditions. This robust performance translates directly into enhanced safety and durability for the ground support structure, providing reliable load transfer and contributing to the overall longevity of the project.

Self-drilling anchor couplings are indispensable in a variety of critical geotechnical and construction applications where extended anchor lengths and reliable connections are paramount. Their ability to seamlessly join anchor bars makes them highly versatile for projects requiring deep embedment or modular installation.

Key applications include:

• Pre-supporting: Used extensively in tunneling and mining to establish immediate ground support ahead of excavation, ensuring stability and safety for workers and equipment.
• Micropiling for Foundation Underpinning: Employed in the reinforcement or repair of existing foundations, where they can extend to competent bearing strata, providing crucial stability to structures experiencing settlement.
• Slope Anchorage: Crucial for stabilizing unstable slopes and embankments, preventing landslides and erosion by anchoring the ground into more stable layers.
• Retaining Walls: Used to provide active and passive resistance in various types of retaining structures, ensuring their stability against soil pressure.
• Temporary Works: Often utilized for temporary support systems during construction, such as excavation bracing, where quick and reliable installation is essential.
• Dam and Port Construction: Applied in large-scale infrastructure projects for reinforcing concrete structures, anchoring equipment, or stabilizing surrounding ground.
