T76 Self-Drilling Anchor Systems

Self-drilling anchor system is a type of ground anchor used to provide stability in soil or rock formations. For application in soil nailing, rock bolting, micro-pipling, tunneling, mining and infrastructure.

Description

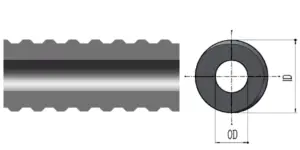

T76 Self-Drilling Anchor Bolt

Size		O.D (mm)	I.D (mm)	Sectional Area (mm²）	Ultimate Load （kN）	Yield Load （kN）	Agt	Weight (kg/meter)
T76	T76N-49	76.0	49.0	2100	1600	1200	＞6%	16.5
T76	T76S-45	76.0	45.0	2420	1900	1500	＞6%	19.0
Thread direction		Left hand
Thread standard		International standards

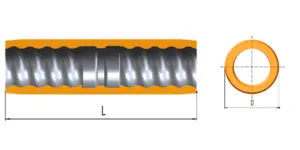

T76 Self-Drilling Anchor Coupler

Thread size	Length(mm)	Out Diameter(mm)	Unit Weight(kg）
T76	220.0	95.0	4.7
Steel grade	As per request
Thread direction	Left hand
Thread standard	International standards
Hardness (HRC)	HRC25 ~ HRC30
Features	All are designed with middle stop, O rings are availables as per request.

T76 Self-Drilling Anchor Nuts

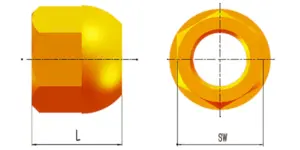

Size	SW (mm)	L (mm)	Unit Weight (kg)
Hexagonal Nut
T76	100	80	2.80
Spherical Nut
T76	100	90	3.20
Steel grade	As per request
Thread direction	Left hand
Thread standard	International standards
Hardness (HRC)	HRC25 ~ HRC30
Features	All nuts are machined and with chamfered edges to suit both domed plates and solid plates.

Self-Drilling Anchor Bits

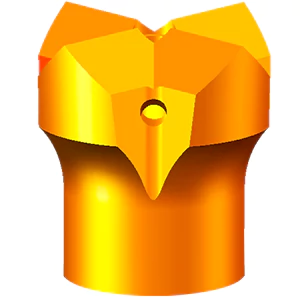

	EX	All steel cross bit for loose to medium dense ground formations.

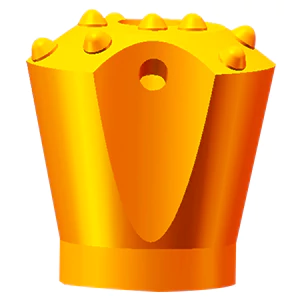

	ES	Hardened button bit for weak cemented soil/sands and weak fractured rock formations.

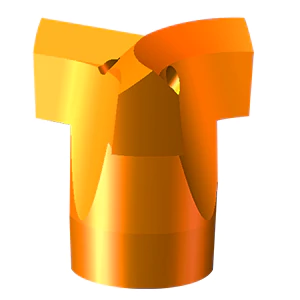

	EC	Hardened arch bit for loose to dense soil or sand formations.

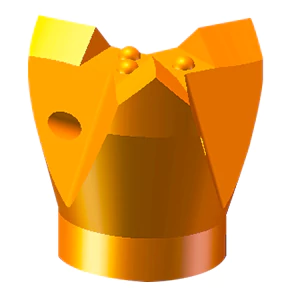

	EY	Hardened three-cutters bit for weak cemented soil/sand and weak fractured rock formations.

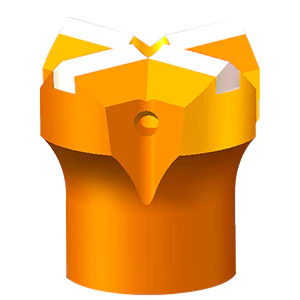

	EXX	TC cross bit for medium to strong fractured rock formations.

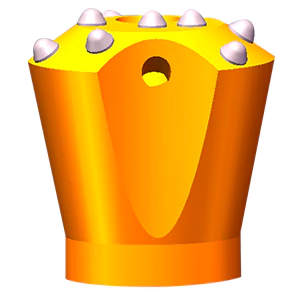

	ESS	TC button bit for strong fractured rock formations.

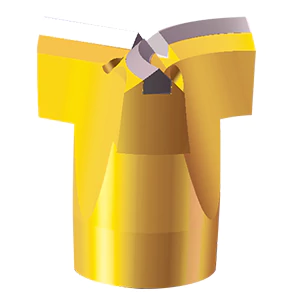

	ECC	TC arch bit for medium fractured rock formations.

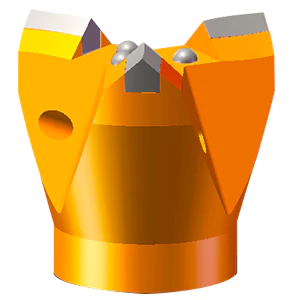

	EYY	TC three cutters bit for medium fractured rock formations.

Bit Matrix
Dia.	42	51	76	90	100	115	130	150	175	220	250	280	300	350
T76					√	√	√	√	√

Thread standard	ISO10208 / ISO 1720 / International standard
Thread direction	Left Hand / Right Hand
Hardness	HRA87 ~ HRA90 for TC bits, HRC48 ~ HRC55 for all steel bits

Self-Drilling Anchor Plate

Size	Solid Plate
Size	A x A x B (mm)	D (mm)	Weight (kg)
T76	250 x 250 x 60	80	27.0
Note	Other dimensions are available upon request.

Self-Drilling Centralizer

Size	Outside Diameter (mm)	Unit Weight (kg)
T76	130	1.00
